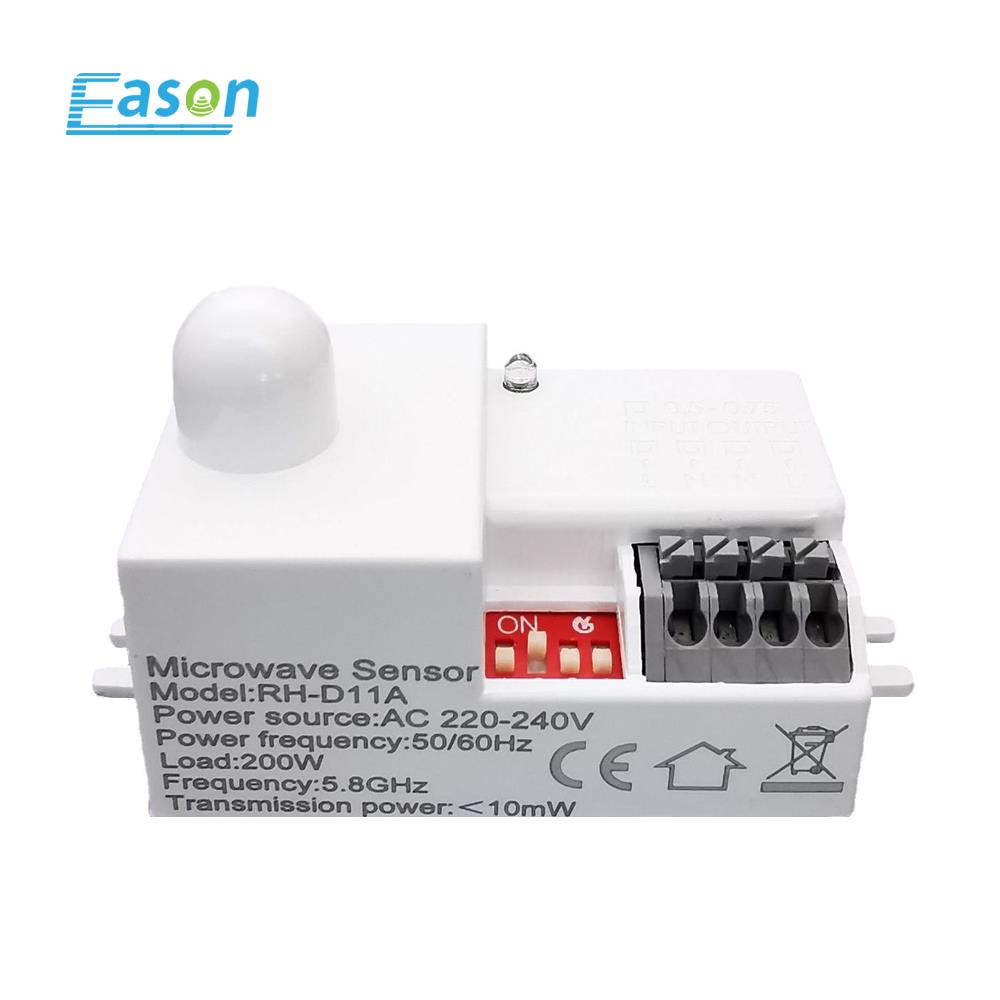

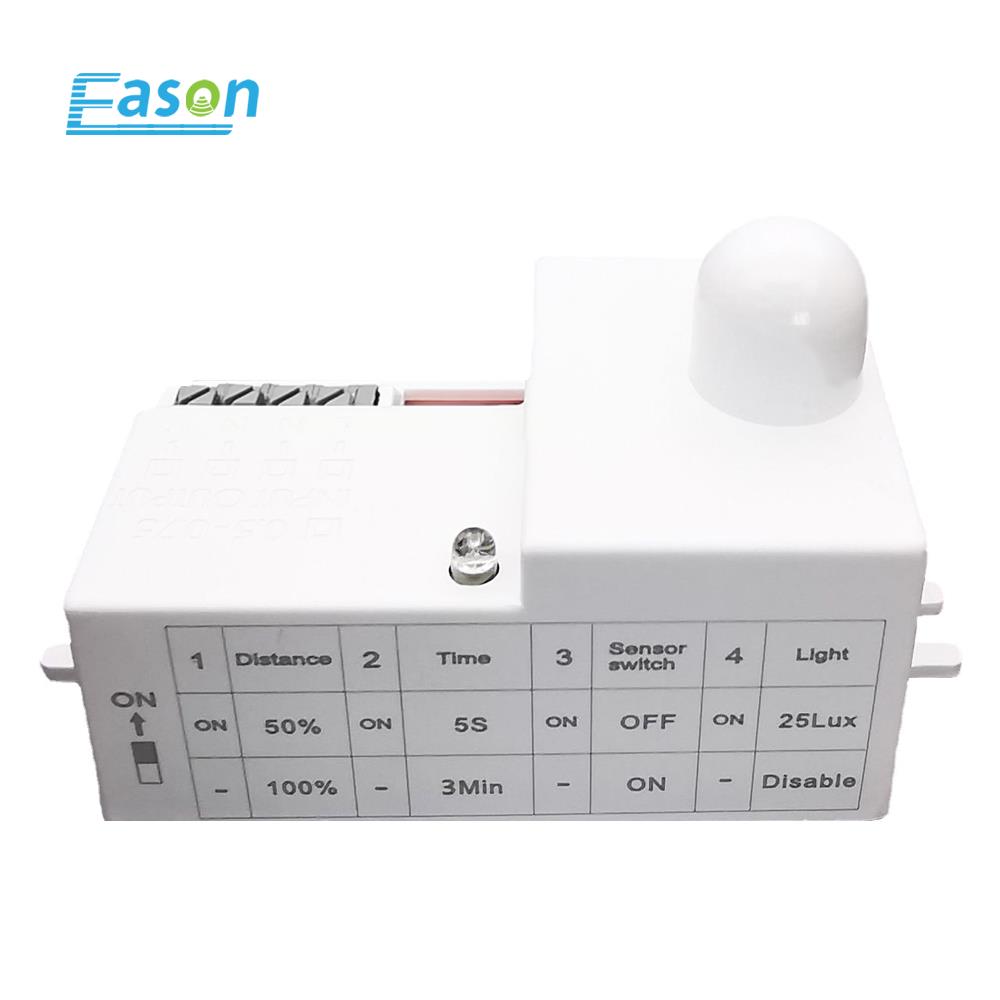

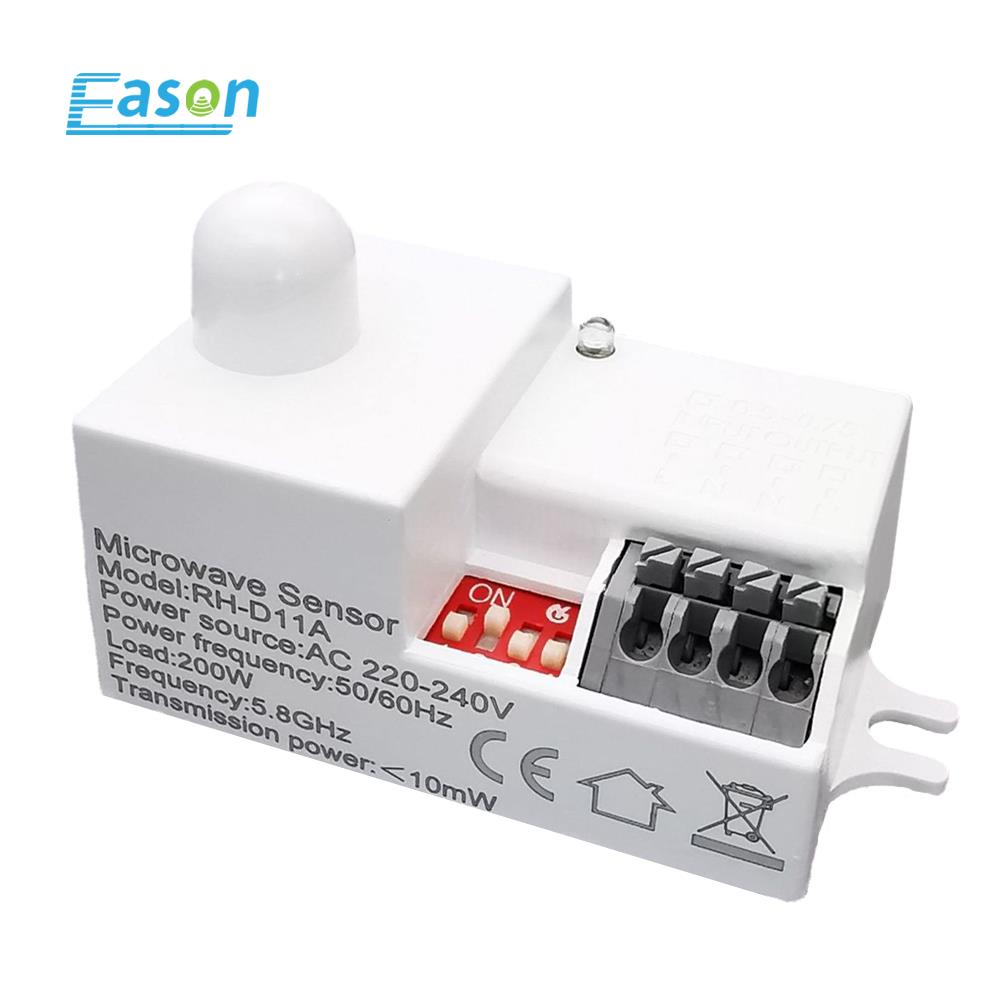

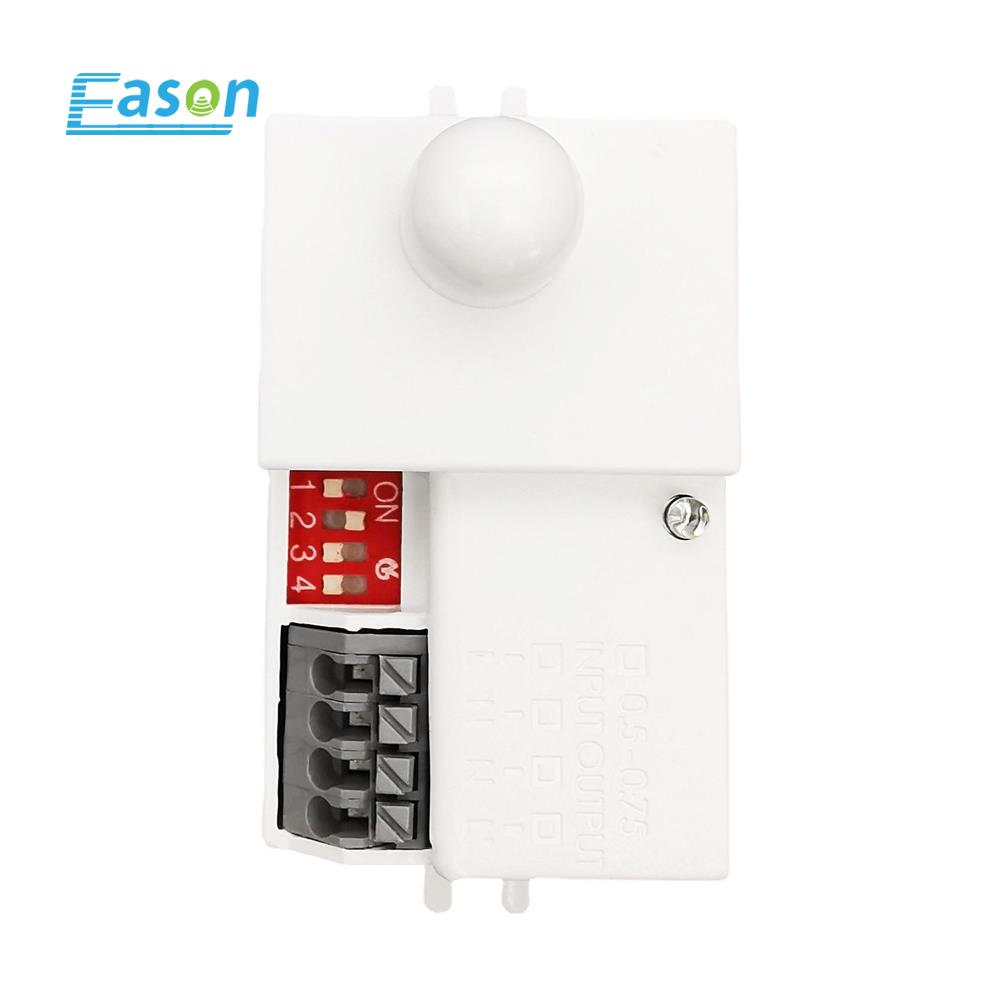

Microwave Sensor E-D11

INQUIRY
Input Voltage:220-240V AC 50/60Hz
Output Power:Max. 800W  LED300W
Standby Power:<0.5W
Microwave Frequency:5.8GHz
Time-Delay:6sec to 3min,adjustable

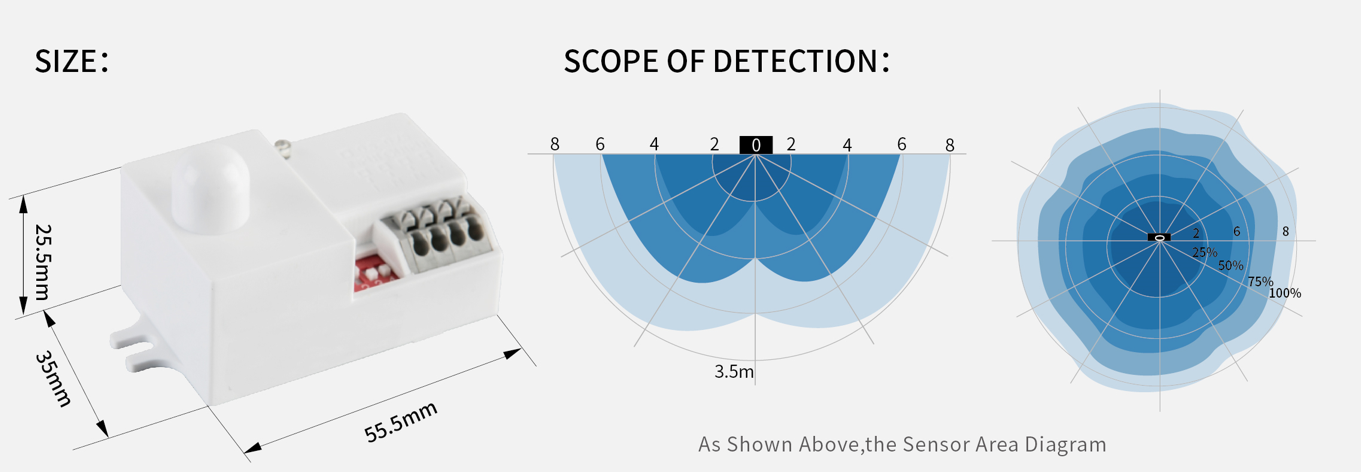

Distance:Max.8m(radii.),adjustable
Light Control:<30LUX/Disable,adjustable
Installation Height:Max.3.5m
Detection angle:360°
Operating Temperature:-10℃-70℃





Technical Specification:

Input Voltage:220-240V AC 50/60Hz
Output Power:Max. 800W LED300W
Standby Power:<0.5W
Microwave Frequency:5.8GHz
Time-Delay:6sec to 3min,adjustable
Distance:Max.8m(radii.),adjustable
Light Control:<30LUX/Disable,adjustable
Installation Height:Max.3.5m
Detection angle:360°
Protection Level:IP20
Operating Temperature:-10℃-70℃
Product net weight / gross weight: 36g / 55g
Product Color:White


Application Location: Indoor
Installation Location:Ceiling & Mount on the ceiling & Wall



Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
