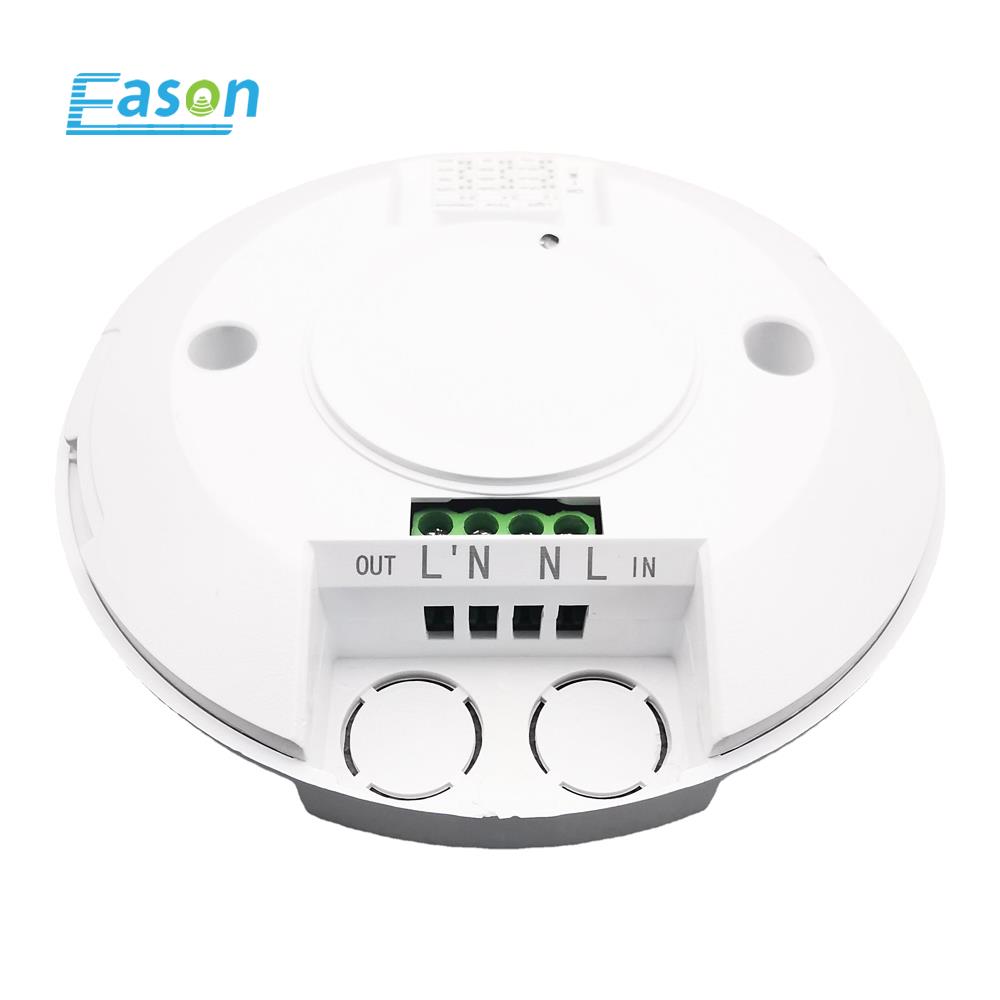

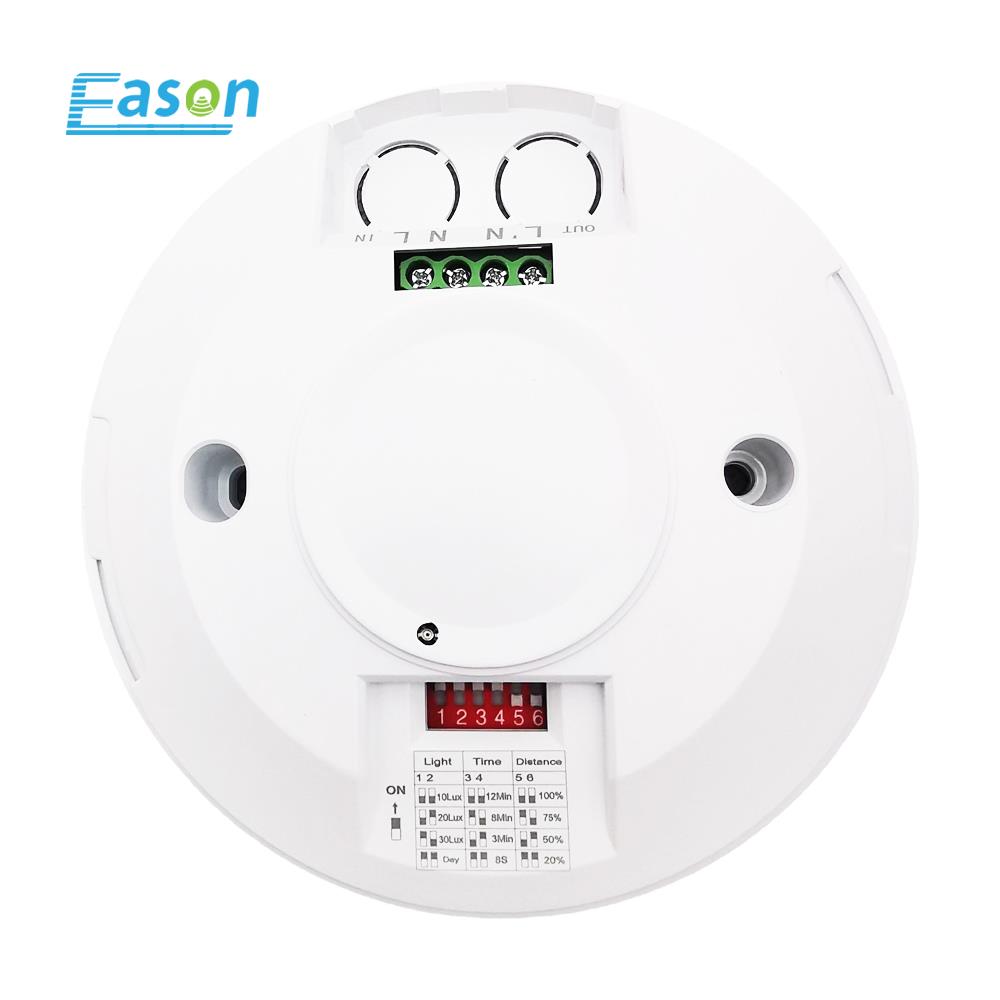

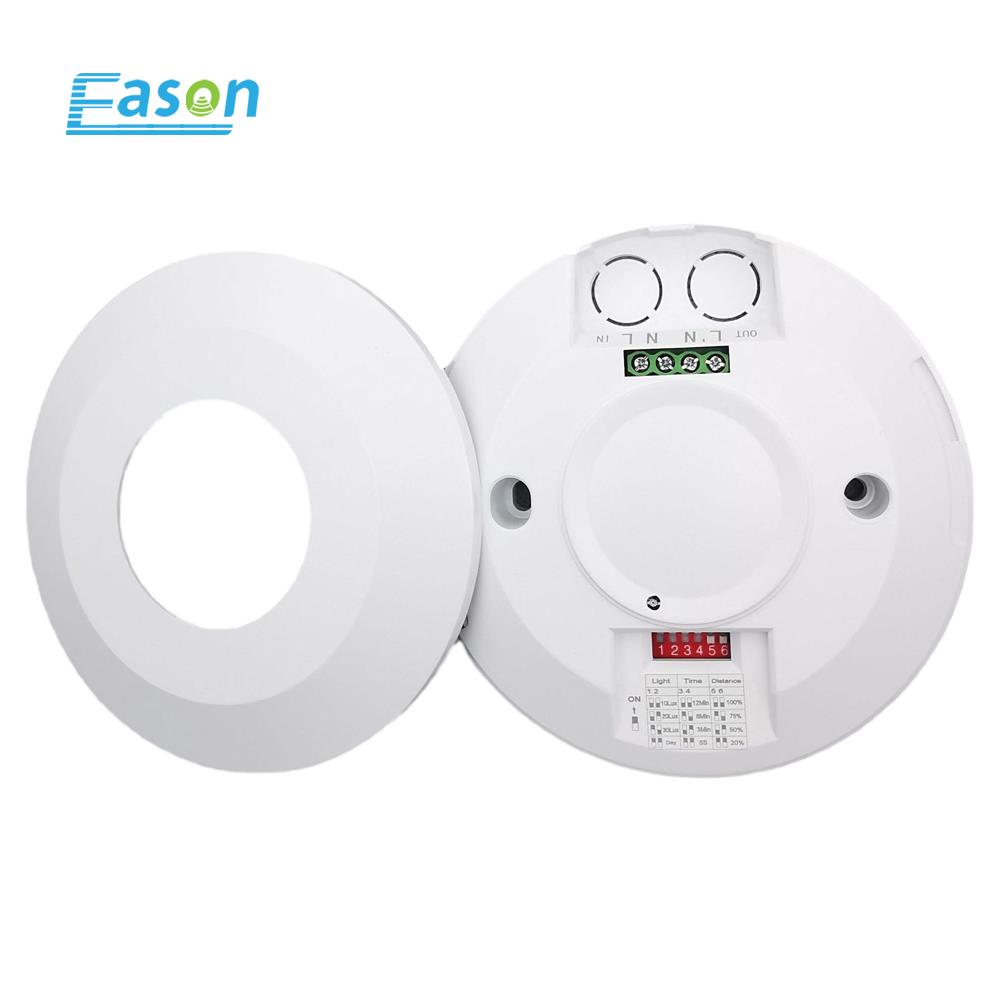

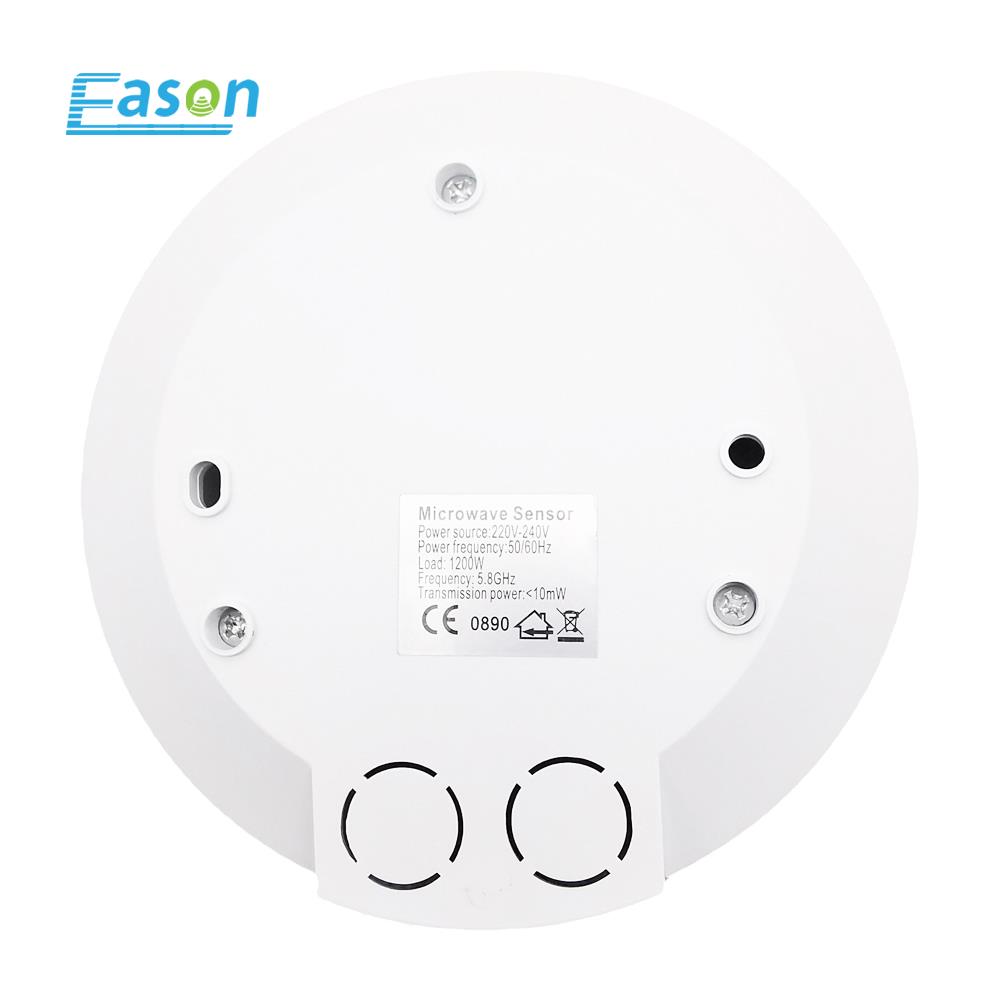

Microwave Sensor E-Y01-D
Input Voltage：220-240V AC 50/60Hz
Output Power：Max. 1200W LED 500W
Input Voltage：12-36V DC
Output Power：Max. 5A
Standby Power：<0.5W
Microwave Frequency：5.8GHz

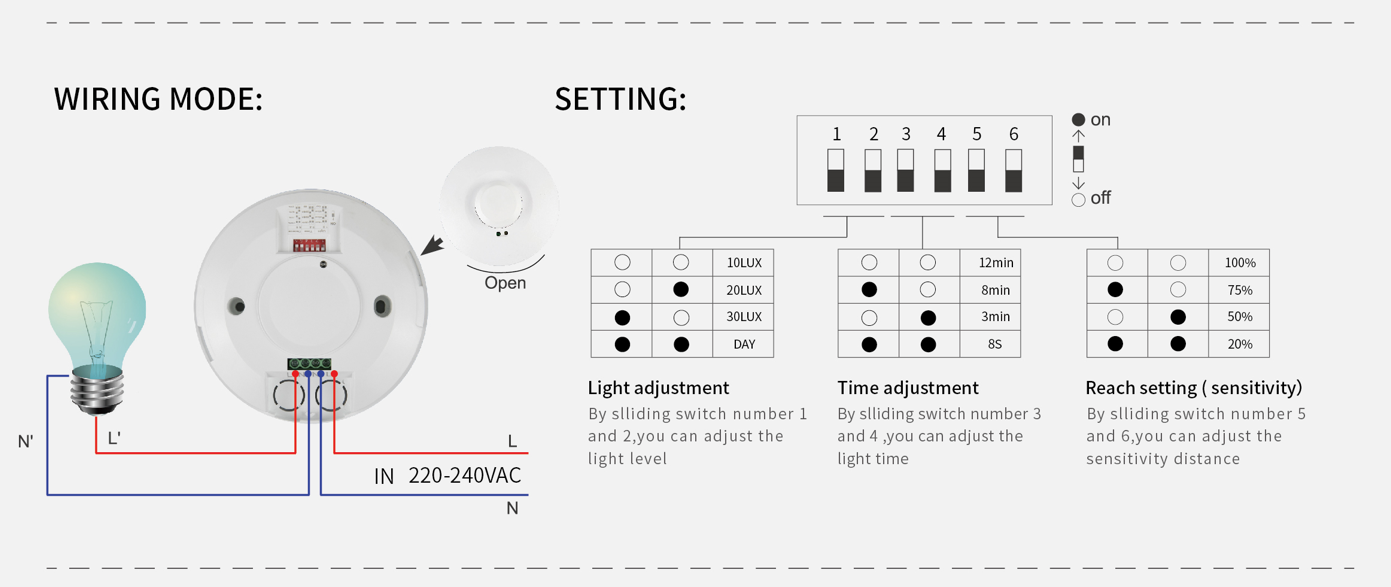

Time-Delay：8sec to 12min,adjustable

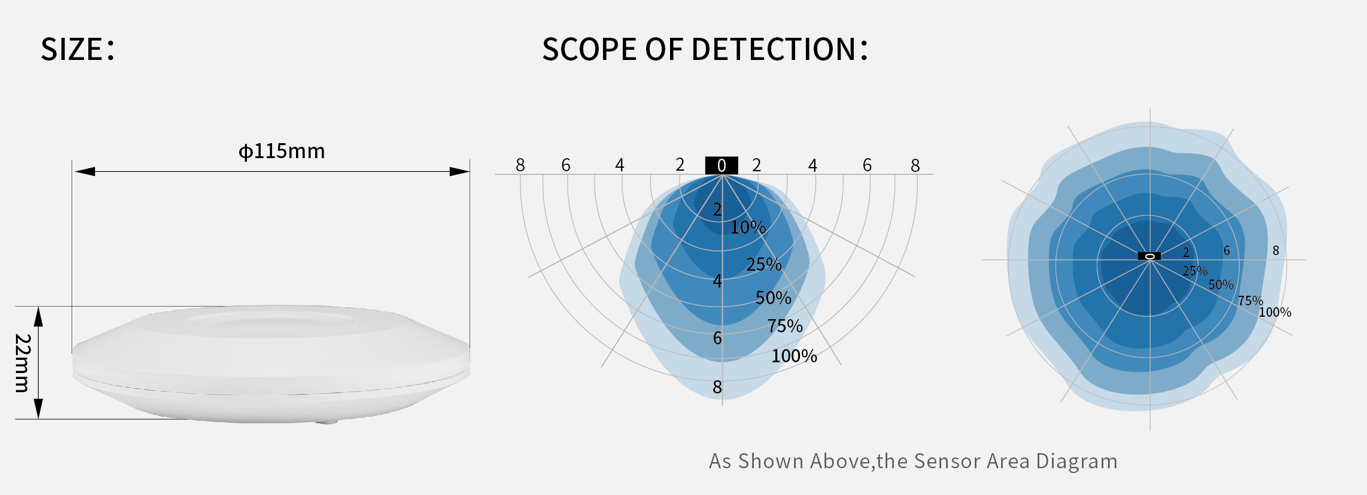

Distance：Max.8m(radii.),adjustable
Light Control：＜30LUX/Disable,adjustable
Installation Height：Max.3.5m
Detection angle：360°
Operating Temperature：-10℃-70℃
Output Power：Max. 1200W LED 500W
Input Voltage：12-36V DC
Output Power：Max. 5A
Standby Power：<0.5W
Microwave Frequency：5.8GHz
Time-Delay：8sec to 12min,adjustable
Distance：Max.8m(radii.),adjustable
Light Control：＜30LUX/Disable,adjustable
Installation Height：Max.3.5m
Detection angle：360°
Operating Temperature：-10℃-70℃
Technical Specification:
Input Voltage：220-240V AC 50/60Hz
Output Power：Max. 1200W LED 500W
Input Voltage：12-36V DC
Output Power：Max. 5A
Standby Power：<0.5W
Microwave Frequency：5.8GHz
Time-Delay：8sec to 12min,adjustable
Distance：Max.8m(radii.),adjustable
Light Control：＜30LUX/Disable,adjustable
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-10℃-70℃
Product net weight / gross weight: 100g / 130g
Product Color：White
Application Location: Indoor
Installation Location:Ceiling & Mount on the ceiling & Wall
Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
