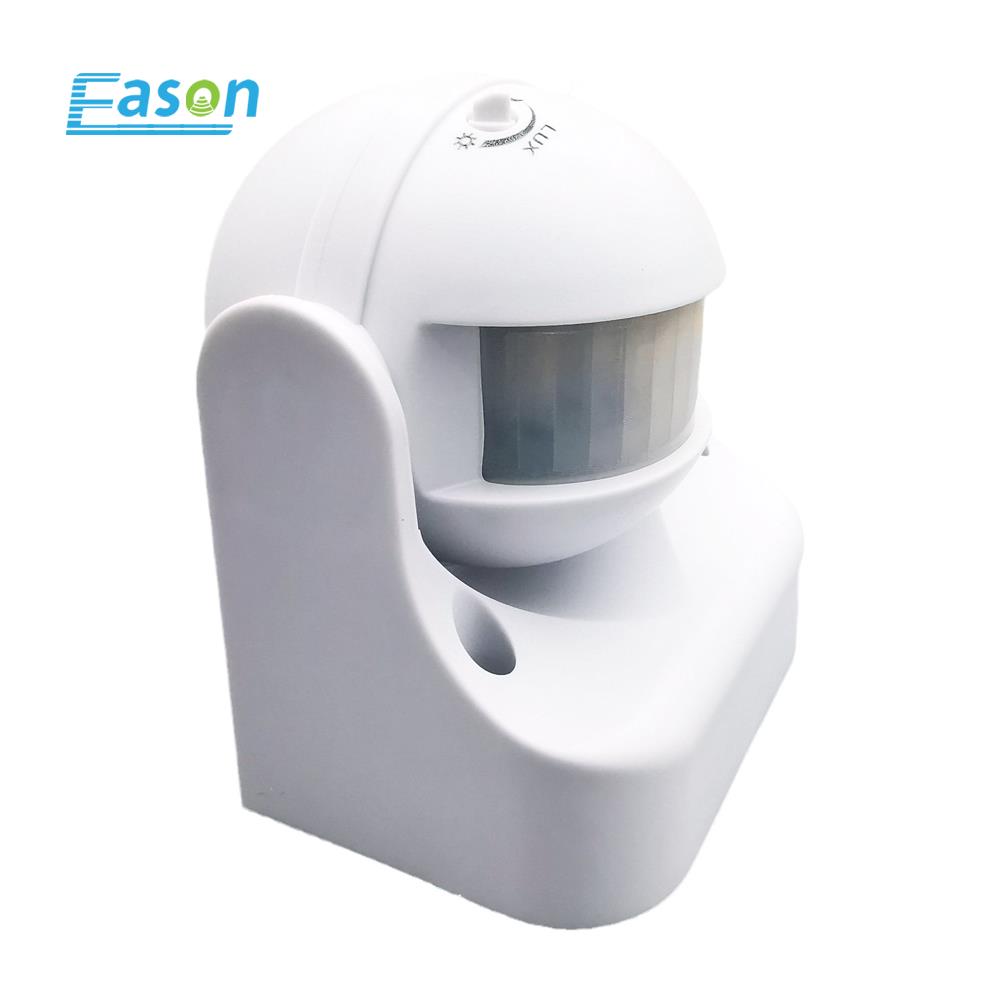

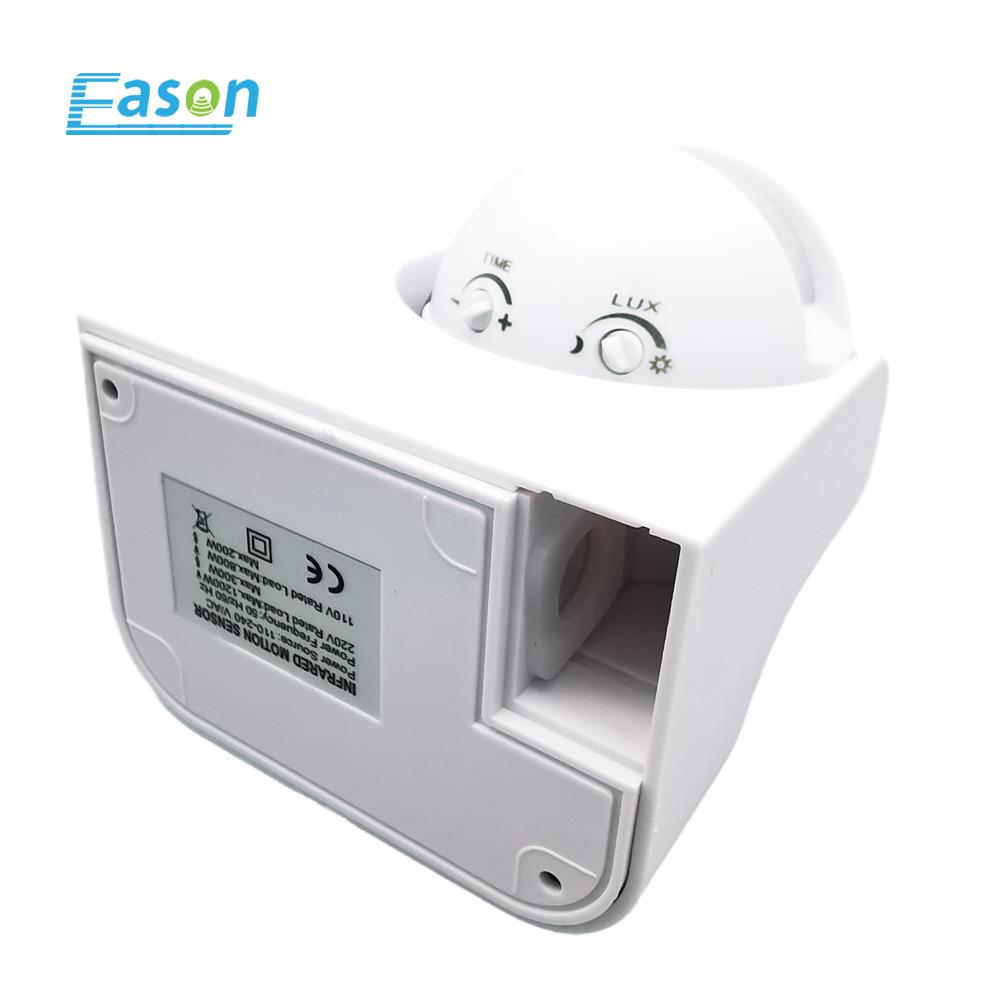

PIR Sensor SY-PIR103A

Technical Specification:

Input Voltage：220-240V AC 50/60Hz
Output Power：1200W（incandescent lamp）, 300W（ LED）
Time-Delay：8s-8min(Adjustable)
Distance：12m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Length86*Width78*Height98mm
Installation Height：Max.3.5m
Detection angle：180°
Protection Level：IP44
Operating Temperature：-10℃-40℃
Product net weight / gross weight:115g/150g
Product Color：White

Application Location: Indoor & Outdoor
Installation Location:Wall

Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
