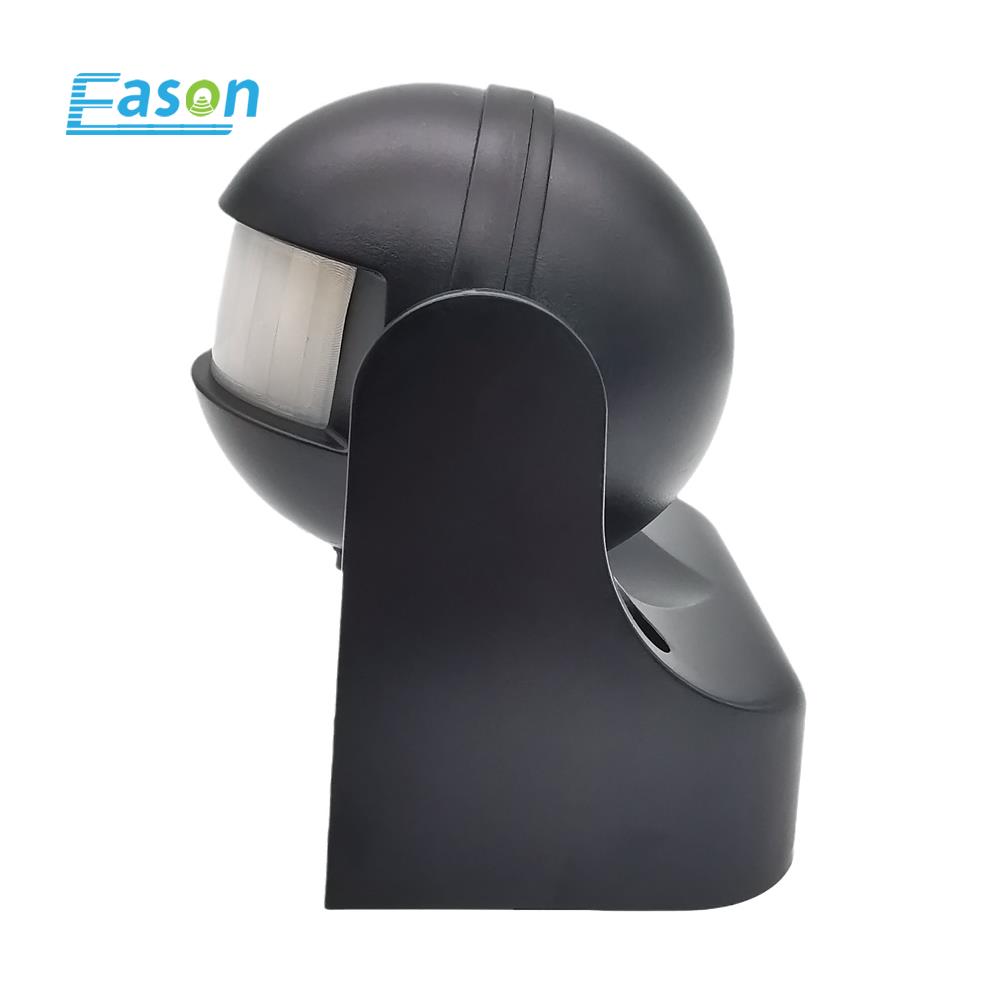

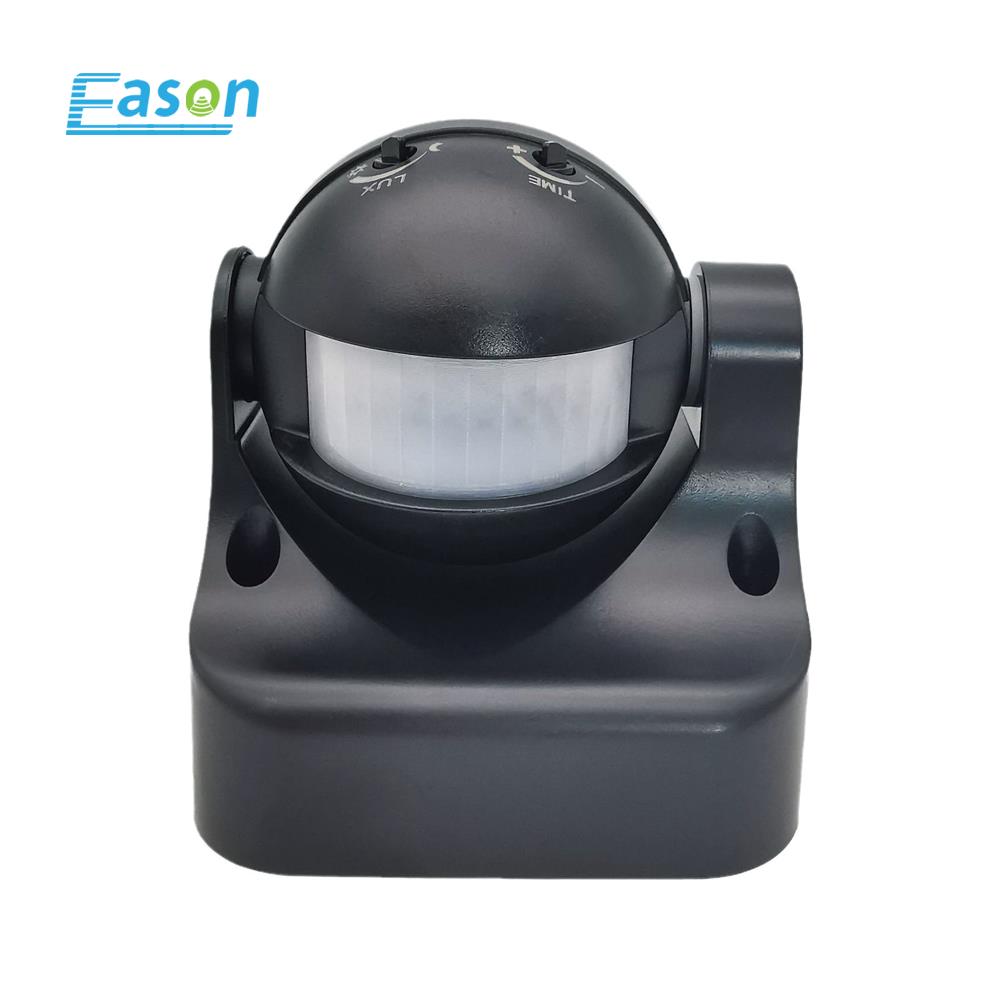

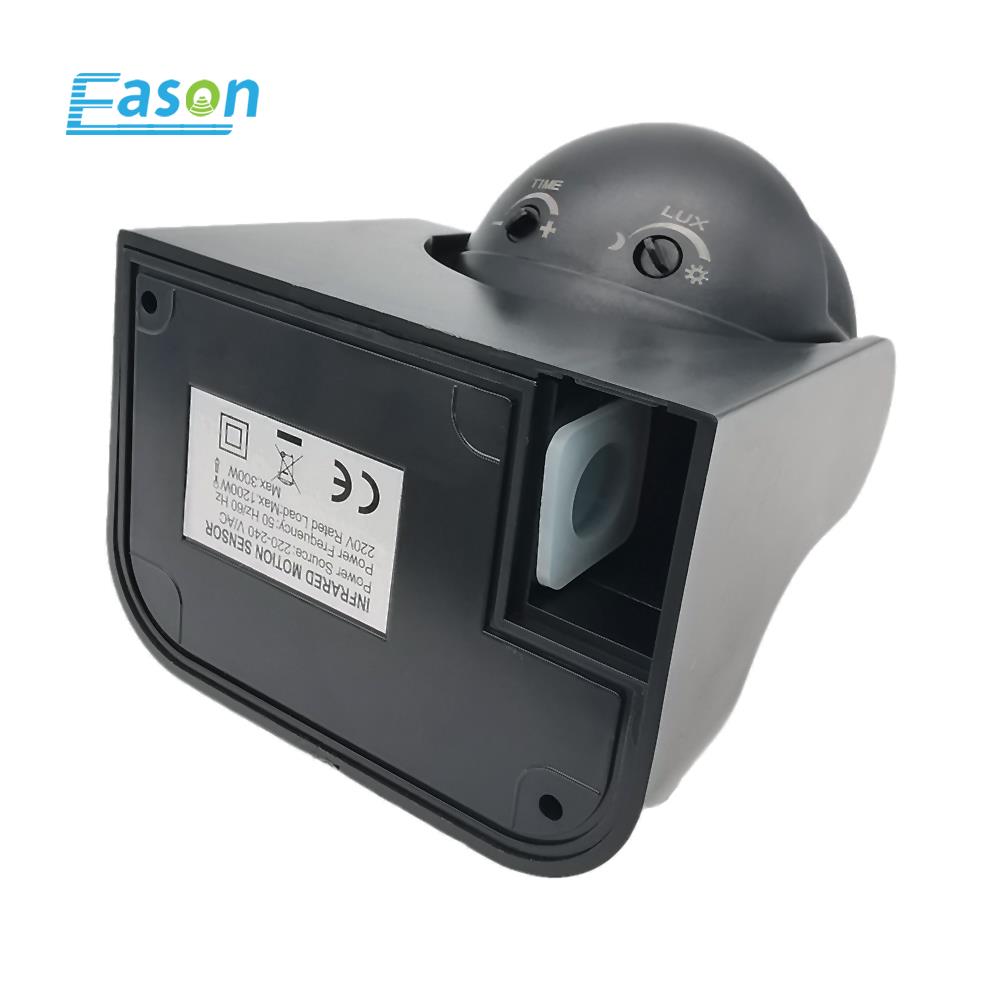

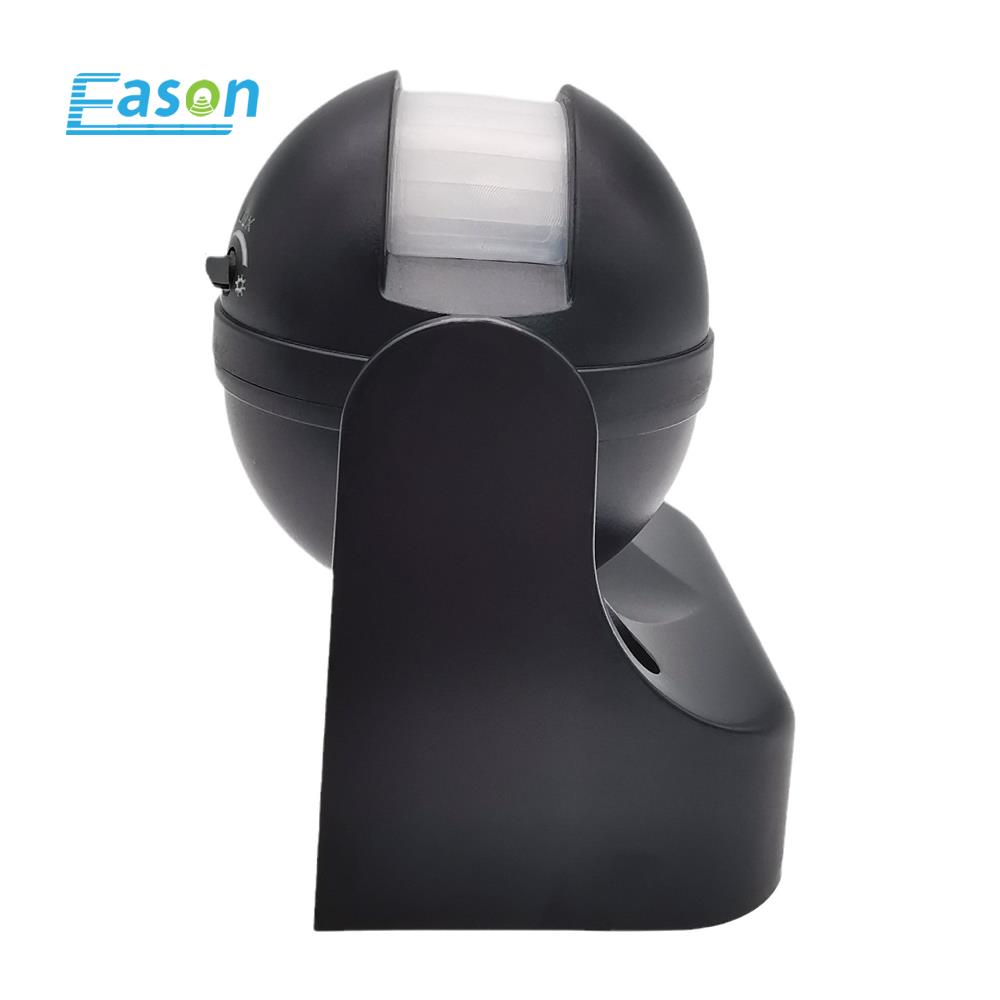

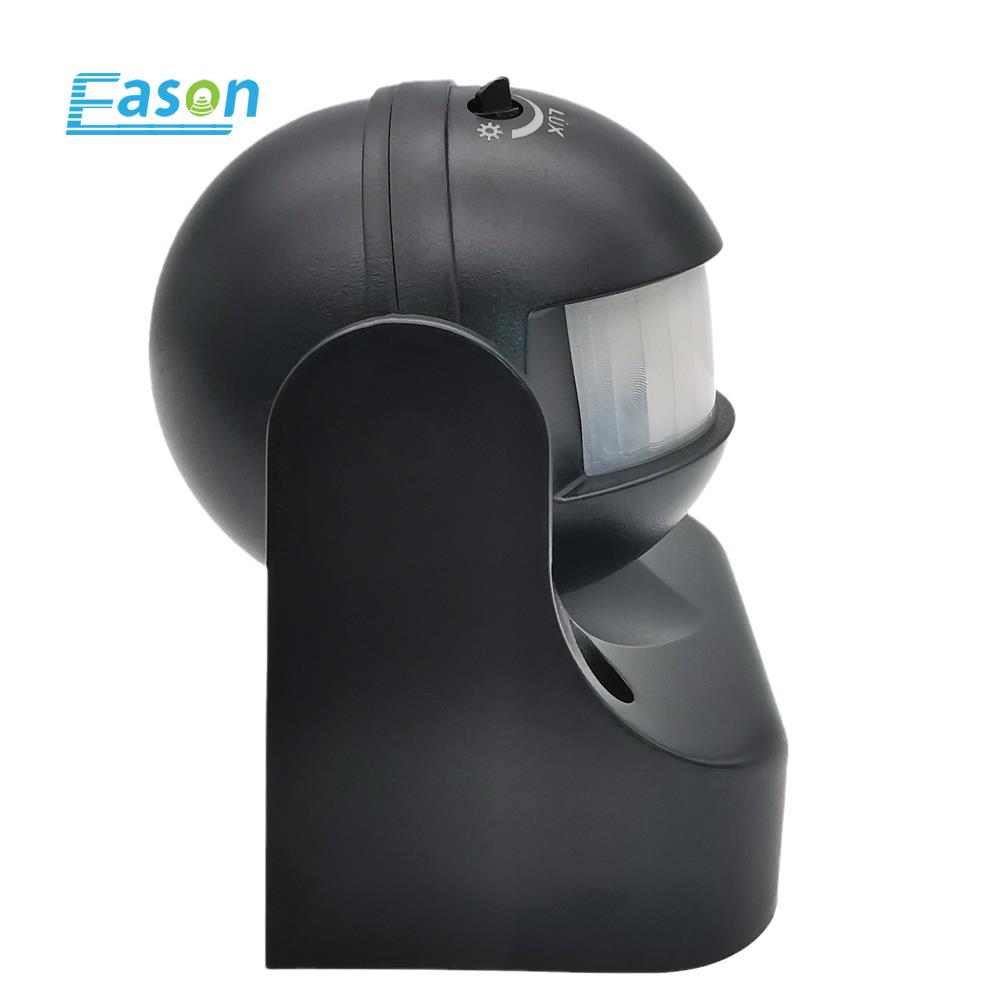

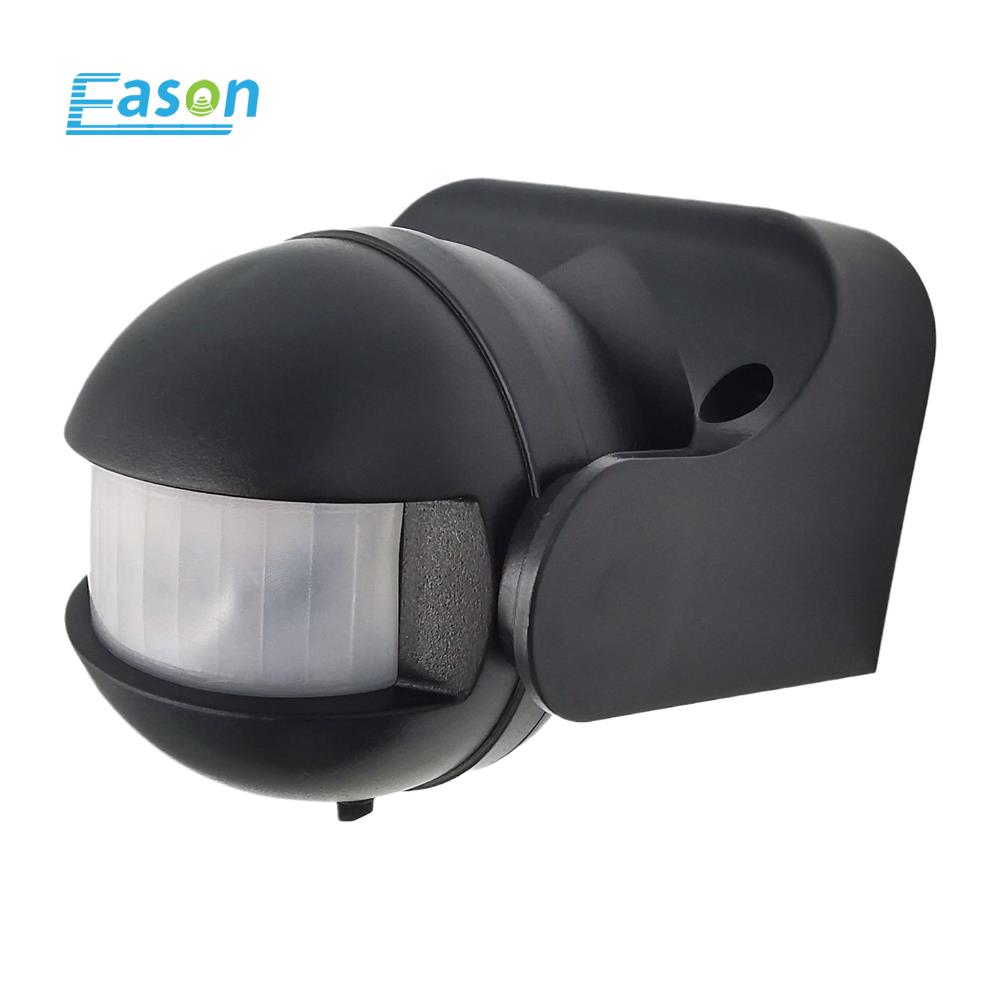

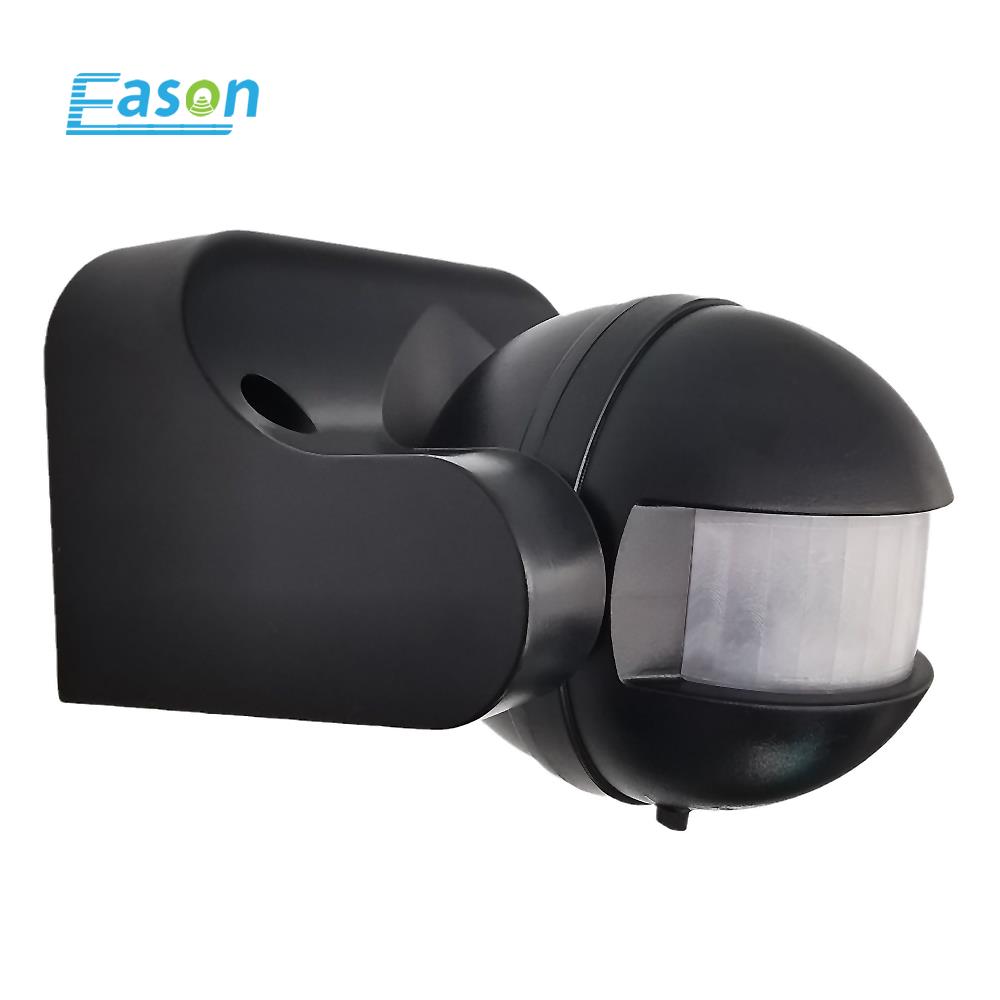

PIR Sensor SY-PIR103B

INQUIRY
Input Voltage:220-240V AC 50/60Hz
Output Power:1200W(incandescent lamp), 300W( LED)
Time-Delay:8s-8min(Adjustable)
Distance:12m.Max(<24℃)
Light Control:<10Lux~2000 Lux (Adjustable)
Product Size:Length86*Width78*Height98mm
Installation Height:Max.3.5m
Detection angle:180°
Protection Level:IP44
Operating Temperature:-10℃-40℃

Technical Specification:

Input Voltage:220-240V AC 50/60Hz
Output Power:1200W(incandescent lamp), 300W( LED)
Time-Delay:8s-8min(Adjustable)
Distance:12m.Max(<24℃)
Light Control:<10Lux~2000 Lux (Adjustable)
Product Size:Length86*Width78*Height98mm
Installation Height:Max.3.5m
Detection angle:180°
Protection Level:IP44
Operating Temperature:-10℃-40℃
Product net weight / gross weight: 115g/150g
Product Color:Black


Application Location: Indoor & Outdoor
Installation Location: Wall



Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
