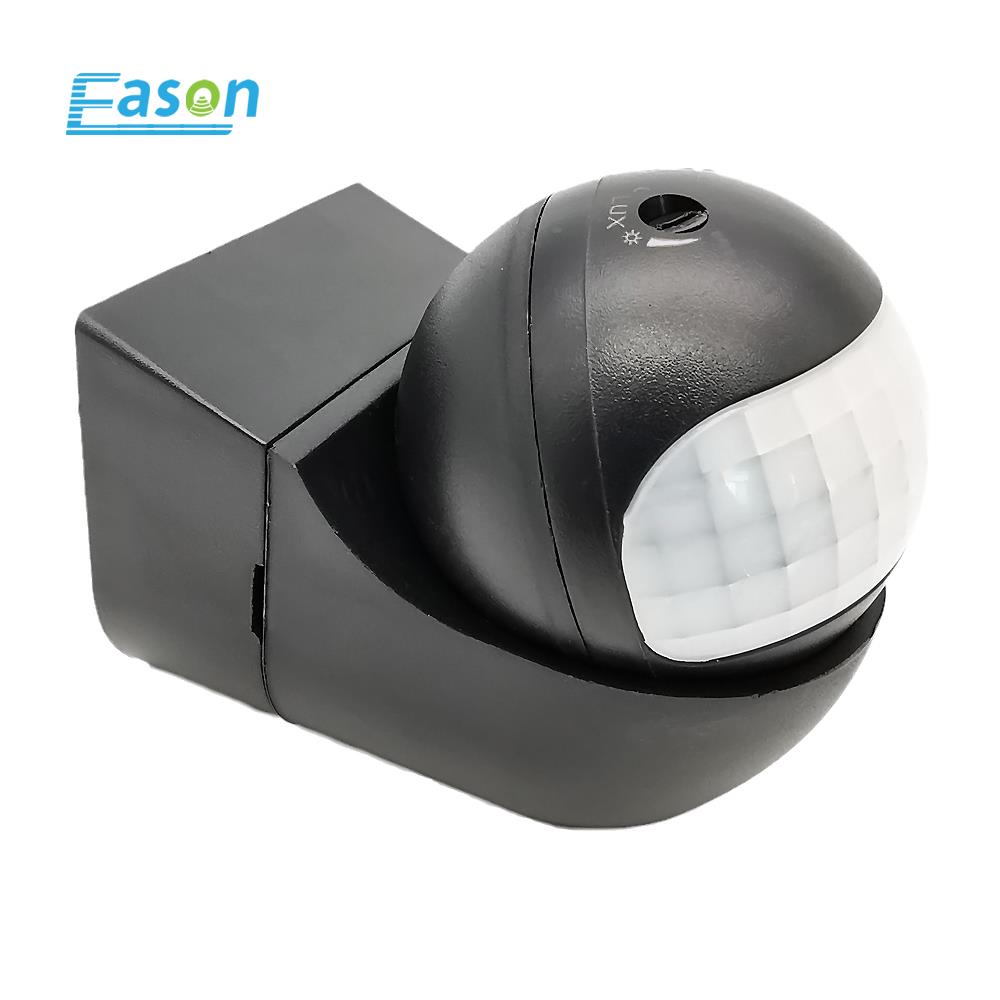

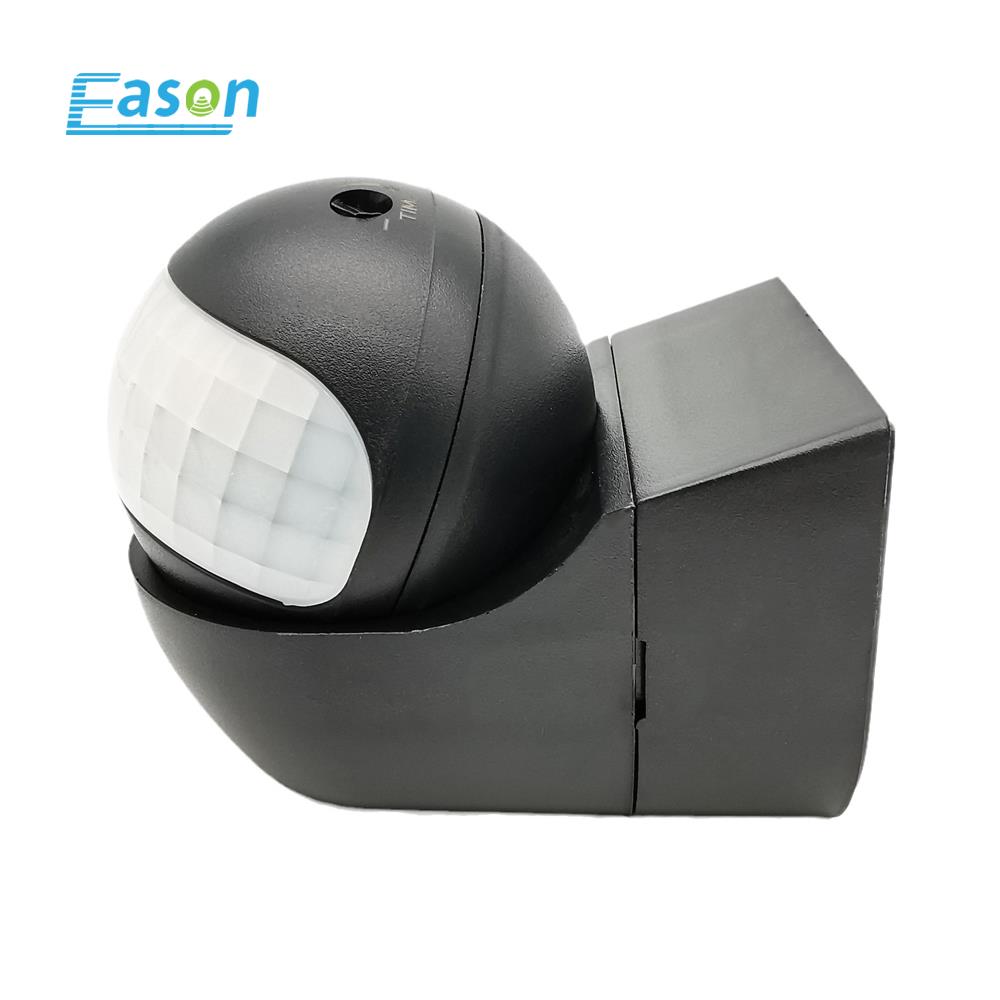

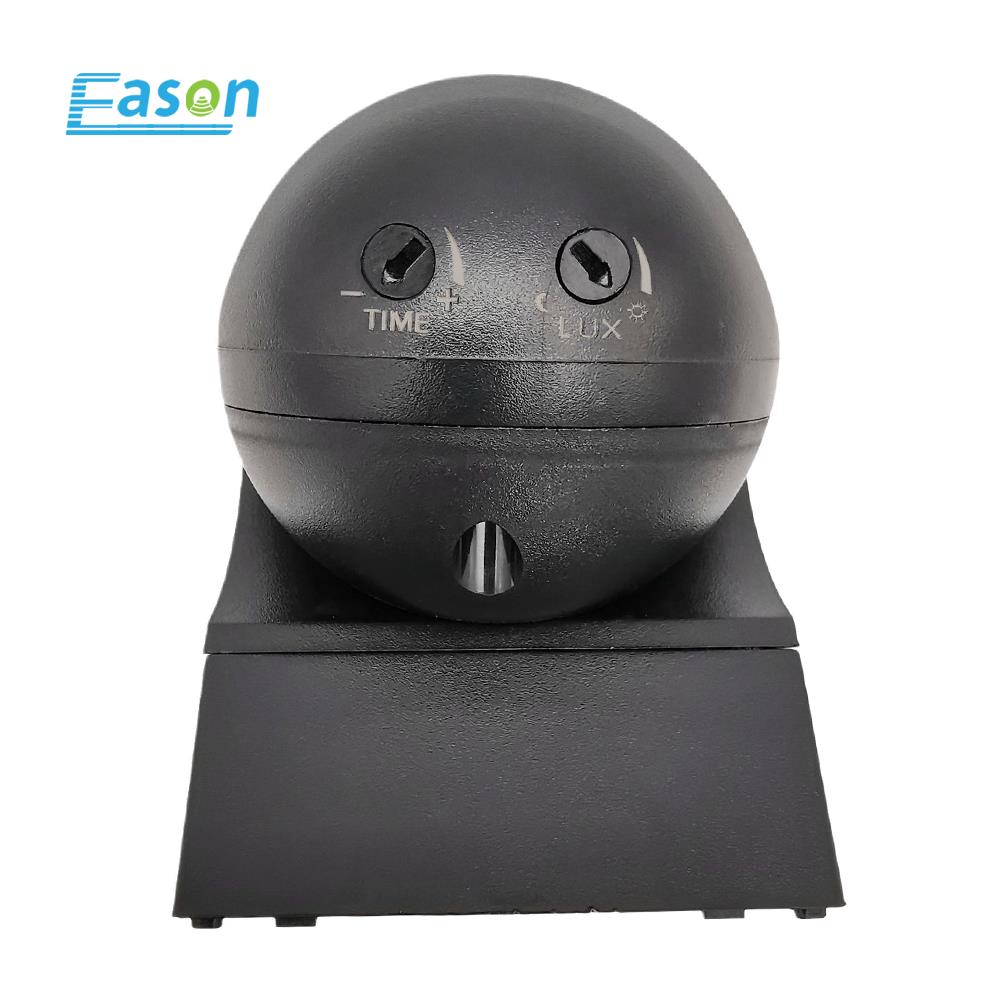

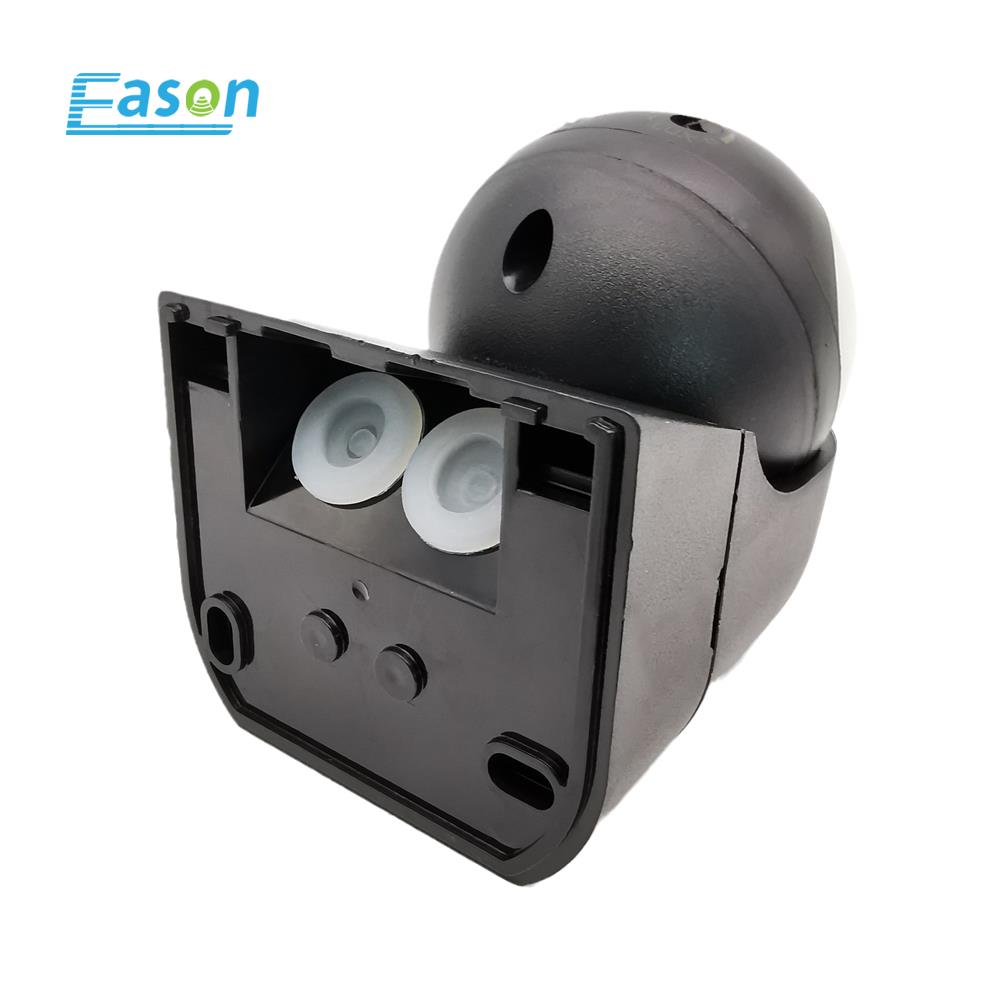

PIR Sensor SY-PIR101B
Input Voltage:220-240V AC 50/60Hz
Output Power:800W(incandescent lamp),400W( LED)
Time-Delay:10s-8min(Adjustable)
Distance:12m.Max(<24℃)
Light Control:3~2000 Lux (Adjustable)
Product Size:Length78*Width56*Height68mm
Installation Height:Max.2.5m
Detection angle:180°
Protection Level:IP44
Operating Temperature:-10℃-40℃
Output Power:800W(incandescent lamp),400W( LED)
Time-Delay:10s-8min(Adjustable)
Distance:12m.Max(<24℃)
Light Control:3~2000 Lux (Adjustable)
Product Size:Length78*Width56*Height68mm
Installation Height:Max.2.5m
Detection angle:180°
Protection Level:IP44
Operating Temperature:-10℃-40℃
Technical Specification:
Input Voltage:220-240V AC 50/60Hz
Output Power:800W(incandescent lamp),400W( LED)
Time-Delay:10s-8min(Adjustable)
Distance:12m.Max(<24℃)
Light Control:3~2000 Lux (Adjustable)
Product Size:Length78*Width56*Height68mm
Installation Height:Max.2.5m
Detection angle:180°
Protection Level:IP44
Operating Temperature:-10℃-40℃
Product net weight / gross weight: 85g / 114g
Product Color:White / Black
Application Location: Indoor & Outdoor
Installation Location:Wall
Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
