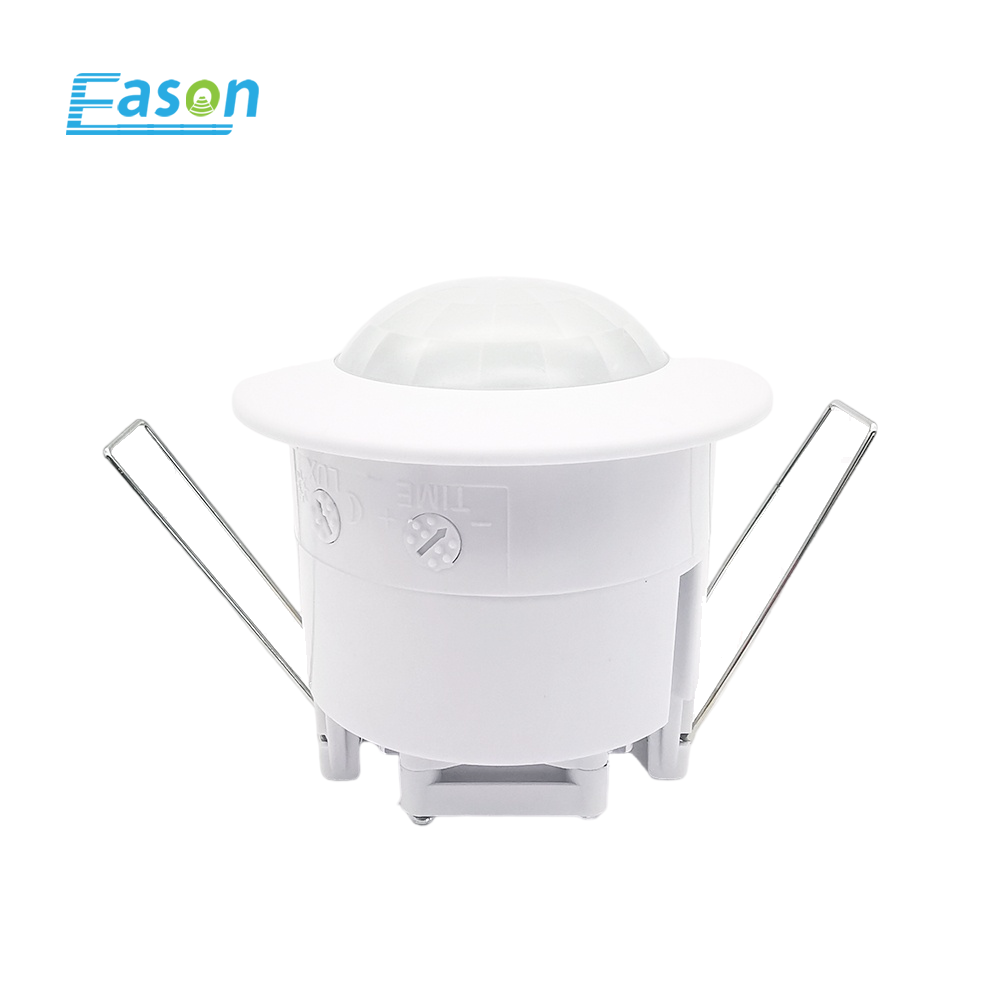

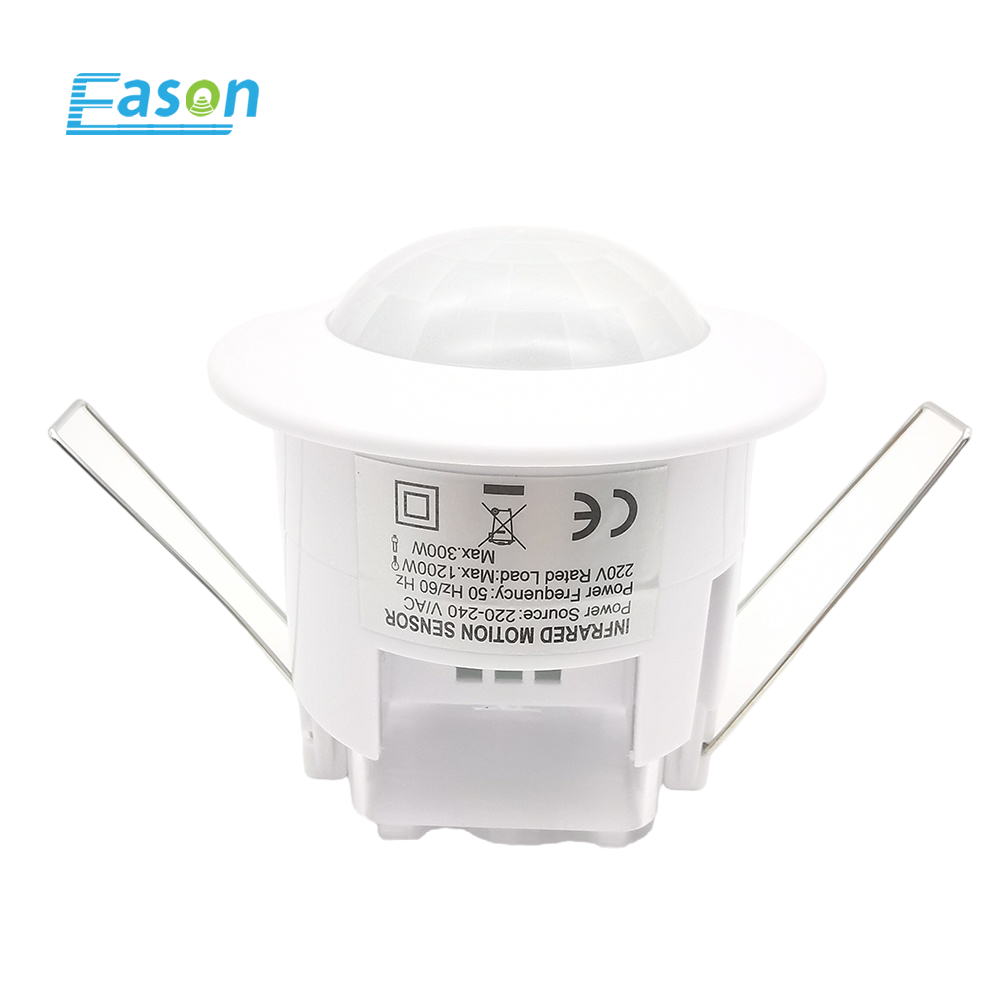

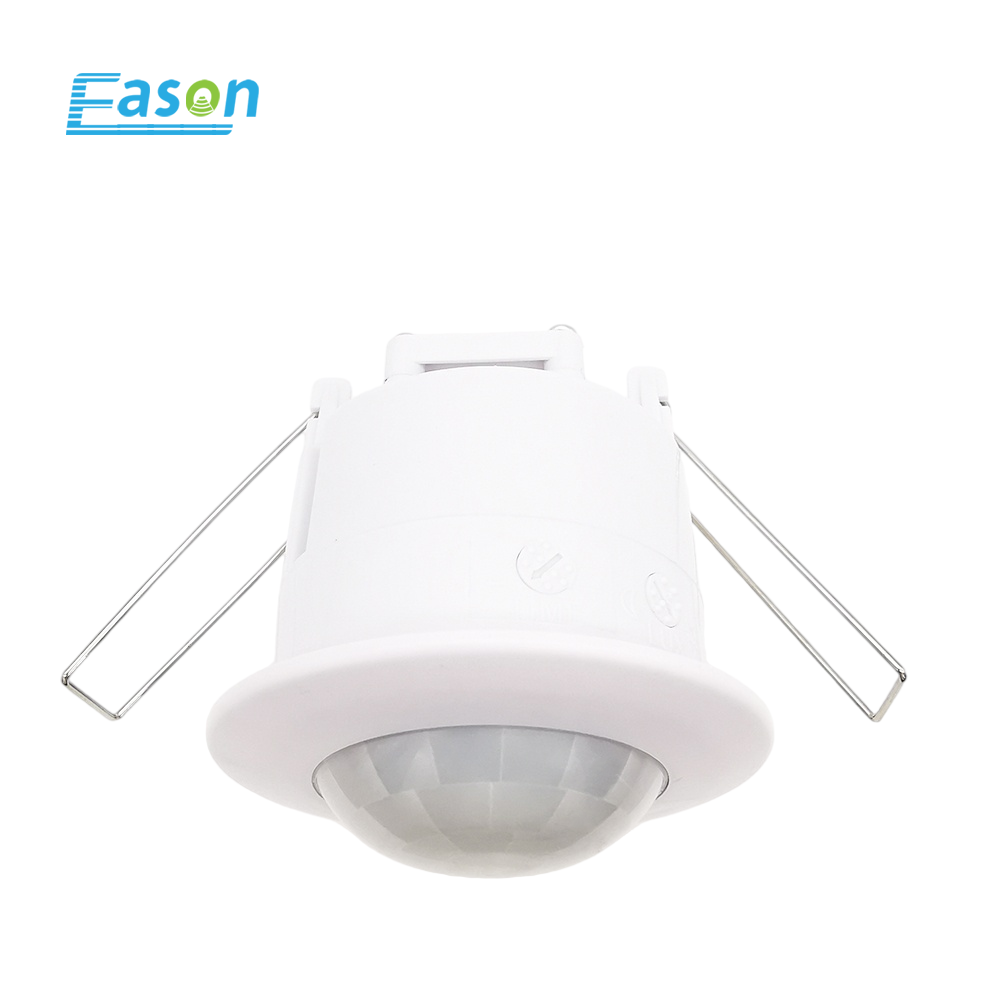

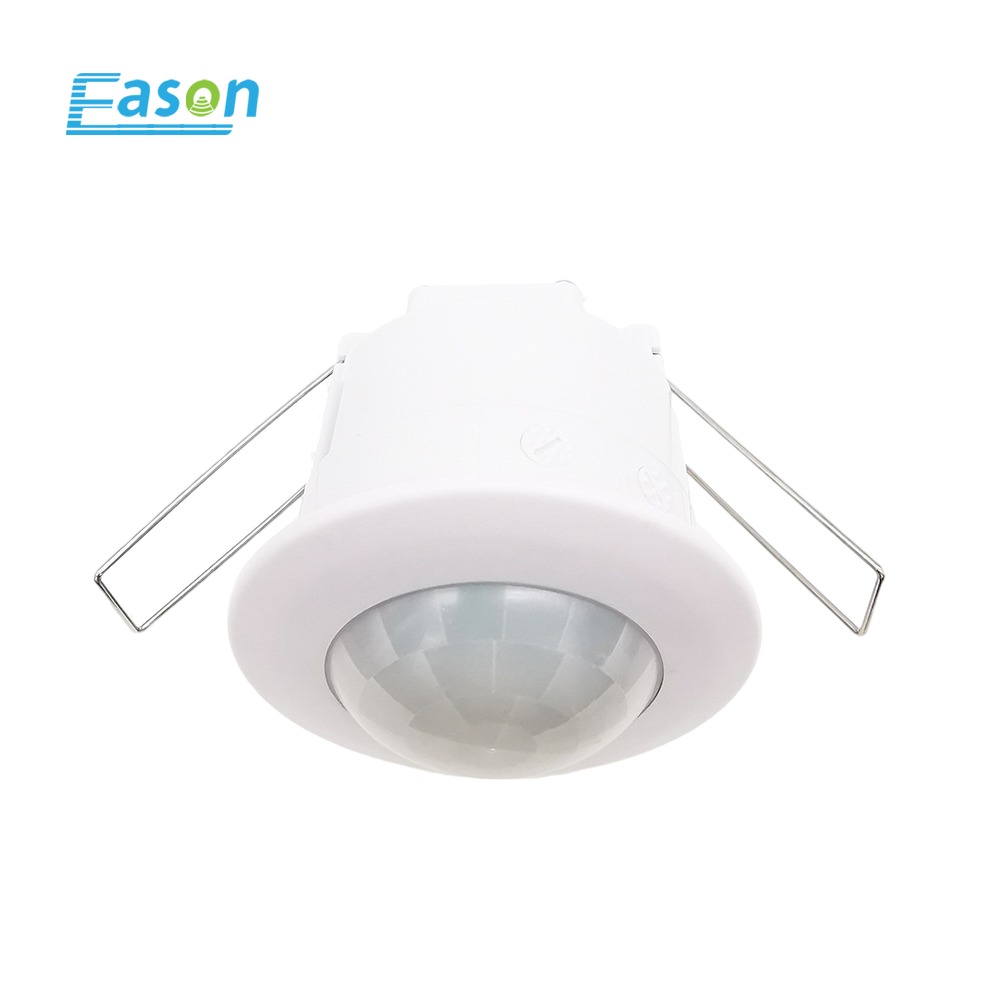

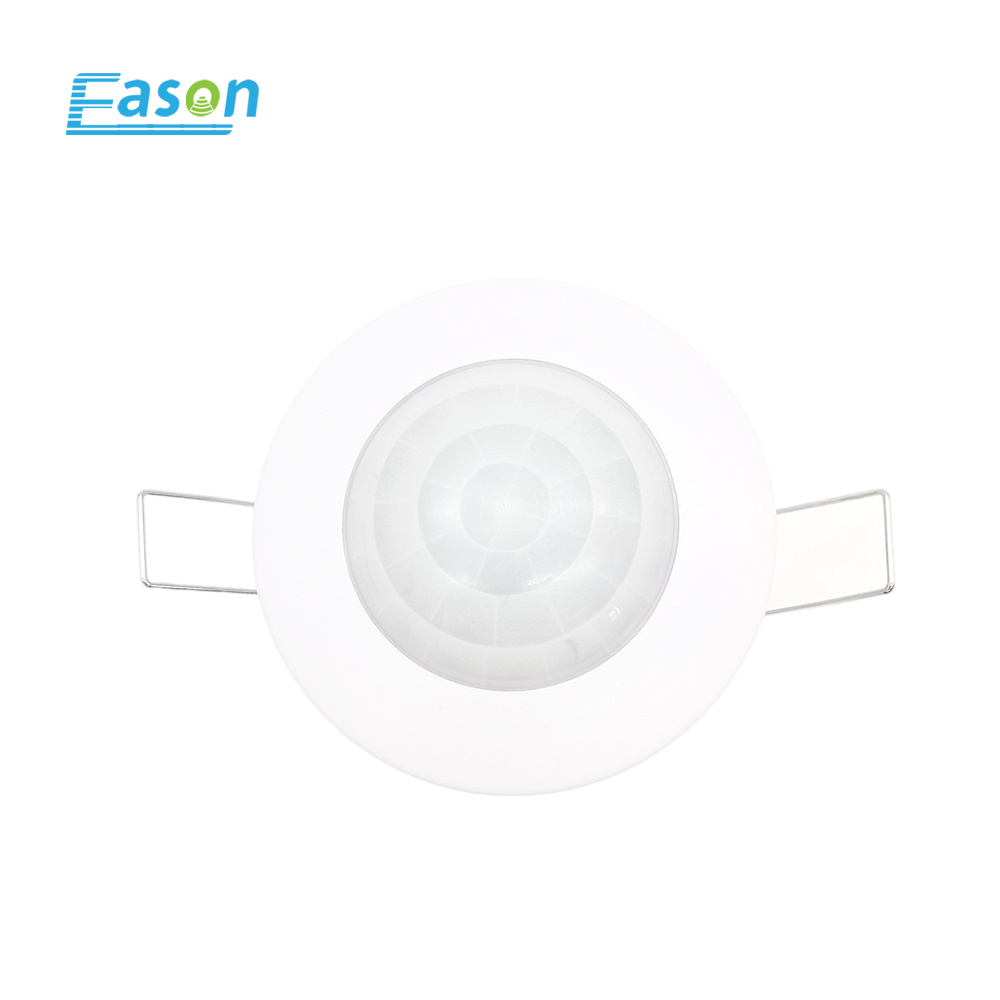

PIR Sensor SY-PIR207

INQUIRY
Input Voltage:220-240V AC 50/60Hz
Output Power:1200W(incandescent lamp), 300W( LED)
Time-Delay:10s-7min(Adjustable)
Distance:6m.Max(<24℃)
Light Control:<10Lux~2000 Lux (Adjustable)
Product Size:Diameter61.5*Height74mm
Installation Height:Max.4m
Detection angle:360°
Protection Level:IP20
Operating Temperature:-10℃-40℃

Technical Specification:

Input Voltage:220-240V AC 50/60Hz
Output Power:1200W(incandescent lamp), 300W( LED)
Time-Delay:10s-7min(Adjustable)
Distance:6m.Max(<24℃)
Light Control:<10Lux~2000 Lux (Adjustable)
Product Size:Diameter61.5*Height74mm
Installation Height:Max.4m
Detection angle:360°
Protection Level:IP20
Operating Temperature:-10℃-40℃
Product net weight / gross weight: 77g / 104g
Product Color:White


Application Location: Indoor
Installation Location:Ceiling recessed installation



Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
