PIR Sensor E-PIR13

INQUIRY
Input Voltage：220-240V AC 50/60Hz
Output Power：1200W（incandescent lamp), 500W（ LED）
Time-Delay：10s-30s-90s-5min-10min-30min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：3~2000 Lux (Adjustable)

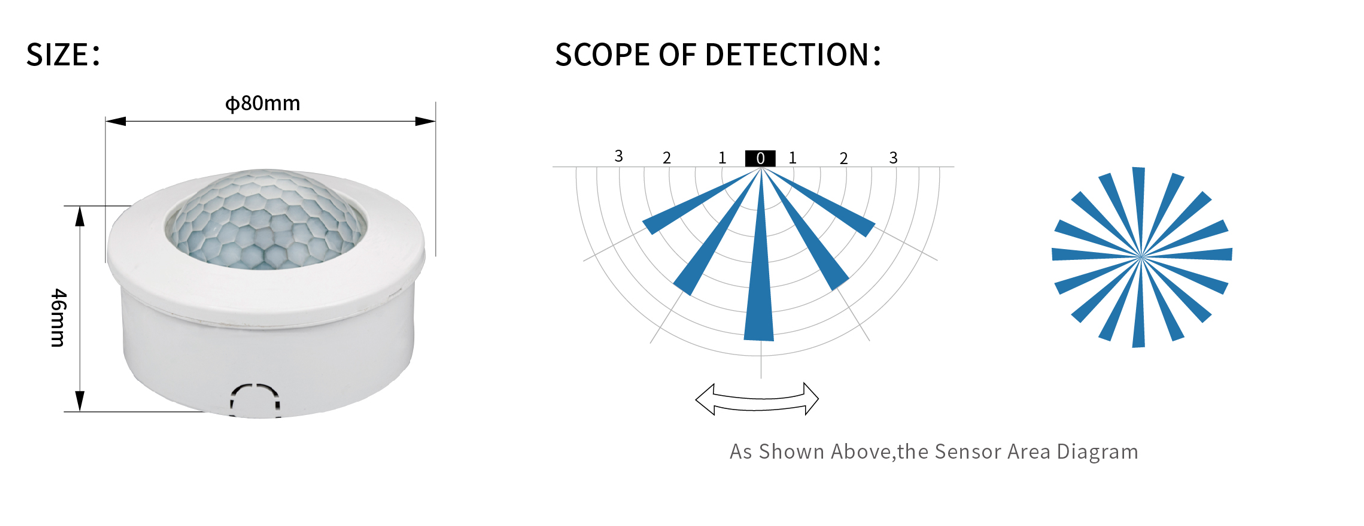

Product Size：Diameter80*Height46mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-10℃-40℃



Technical Specification:

Input Voltage：220-240V AC 50/60Hz
Output Power：1200W（incandescent lamp), 500W（ LED）
Time-Delay：10s-30s-90s-5min-10min-30min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：3~2000 Lux (Adjustable)
Product Size：Diameter80*Height46mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-10℃-40℃
Product net weight / gross weight: 80g / 100g
Product Color：White


Application Location: Indoor
Installation Location:Ceiling & Ceiling recessed installation



Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
