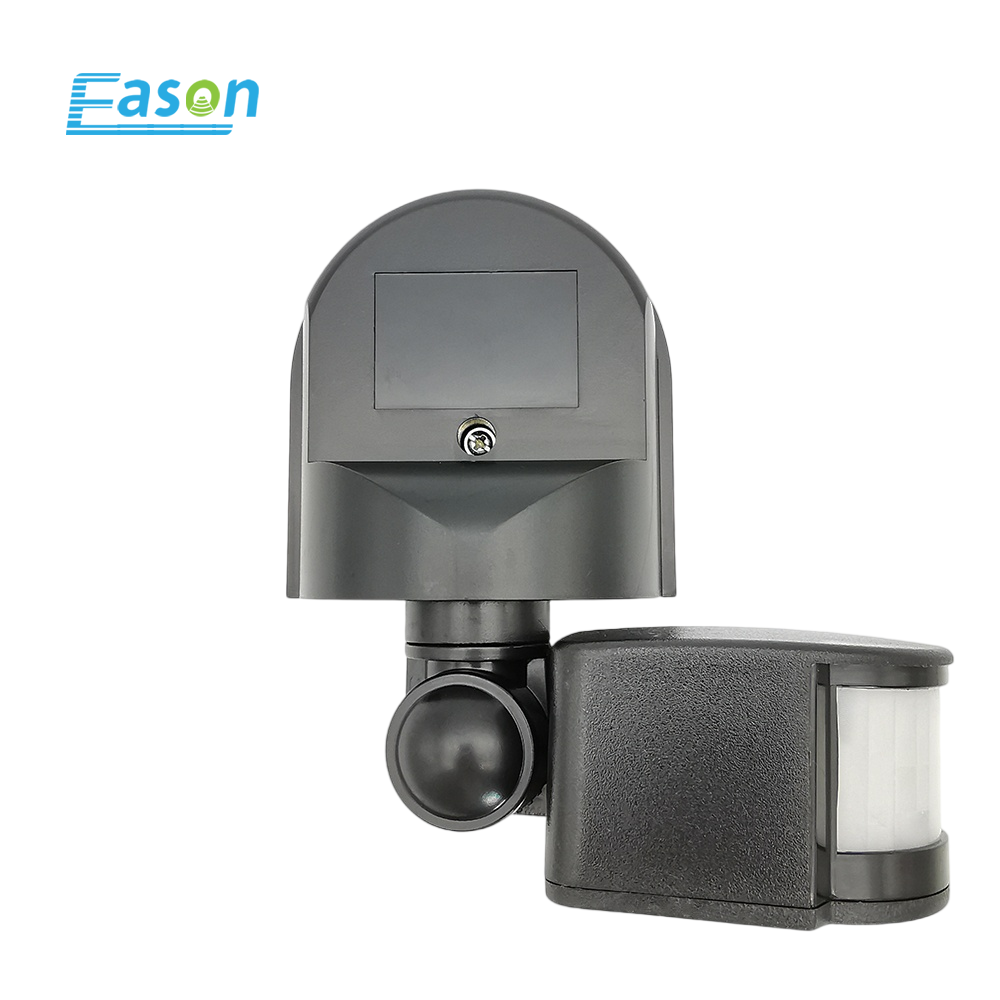

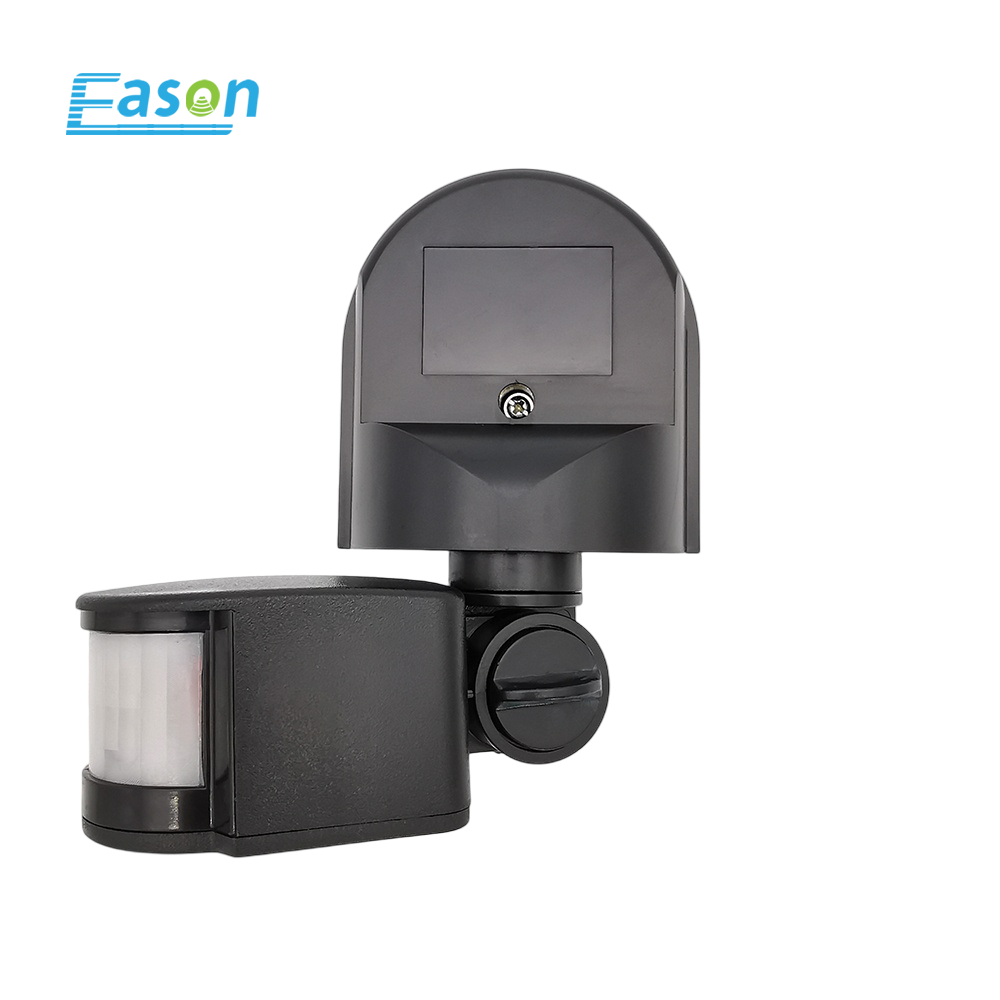

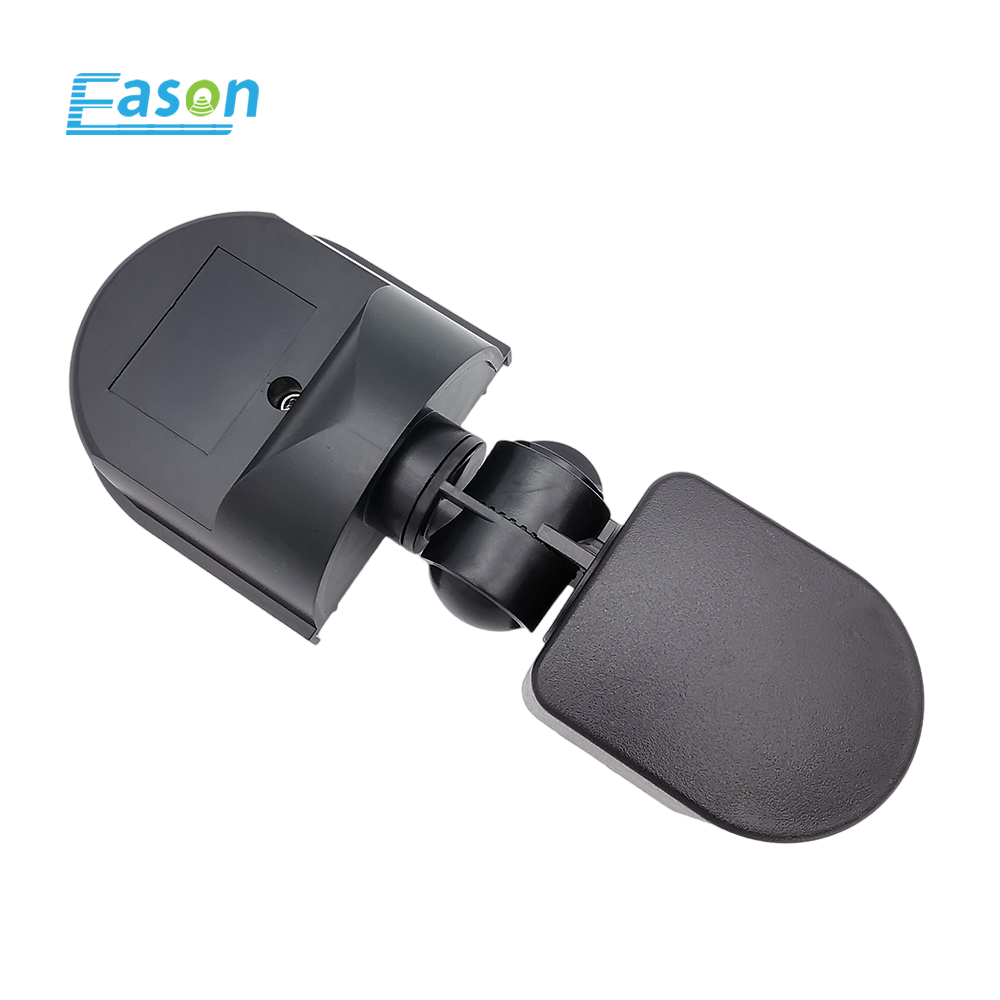

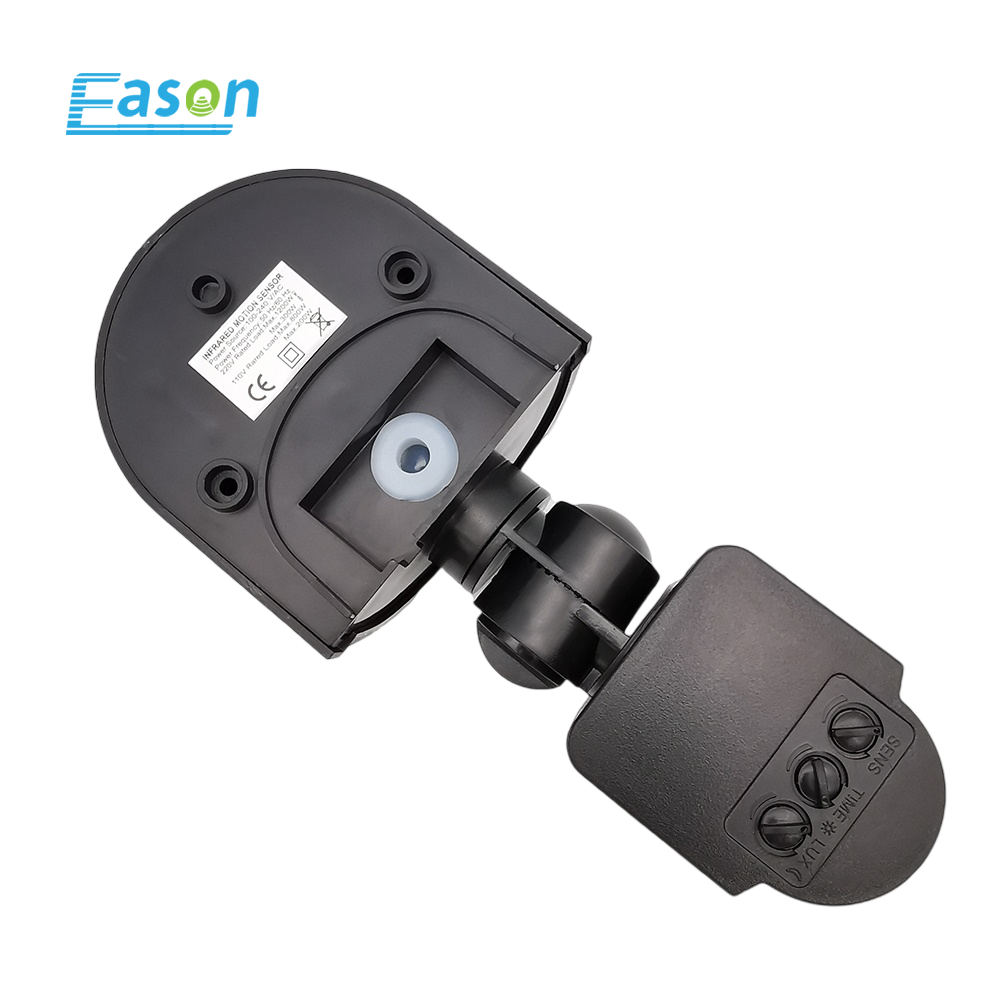

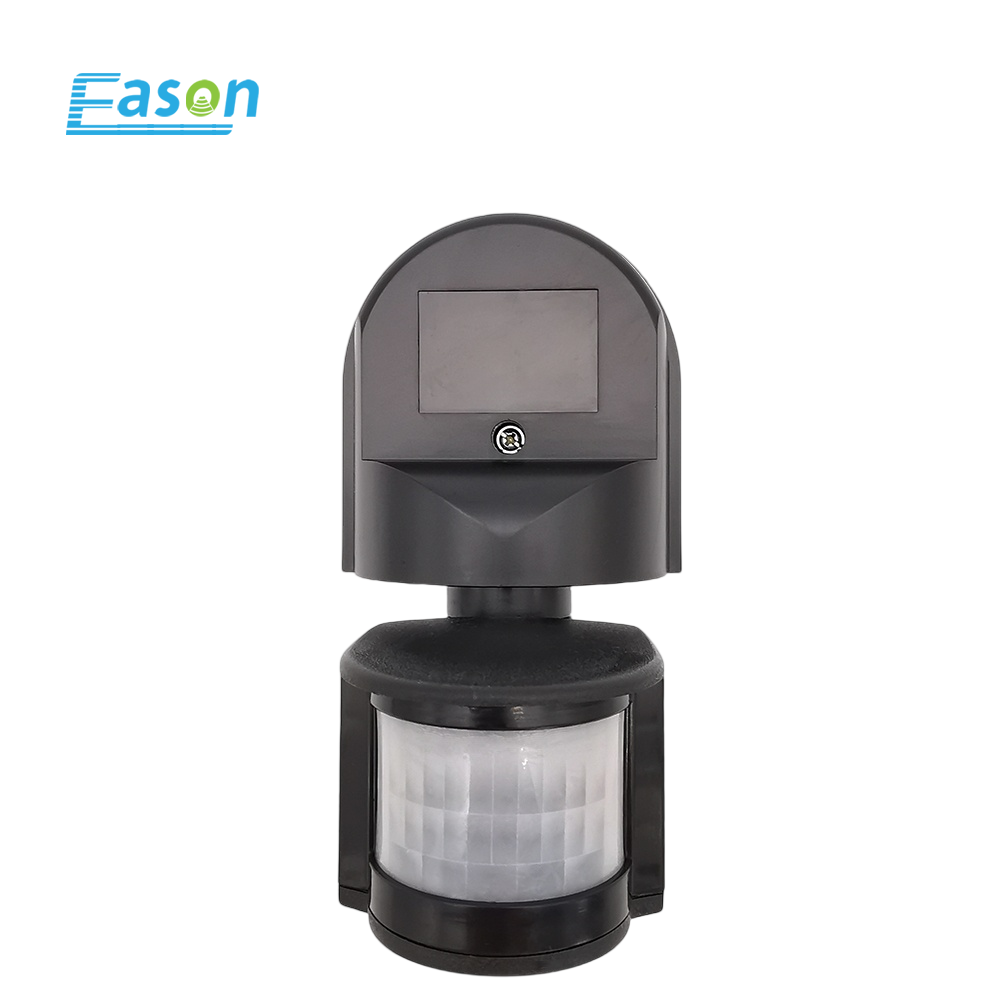

PIR Sensor SY-PIR105

Technical Specification:

Input Voltage：220-240V AC 50/60Hz
Output Power：1200W（incandescent lamp), 200W（ LED）
Time-Delay：10s-8min(Adjustable)
Distance：12m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Length210*Width58*Height148mm
Installation Height：Max.3.5m
Detection angle：180°
Protection Level：IP44
Operating Temperature：-10℃-40℃
Product net weight / gross weight: 160g / 215g
Product Color：White / Black

Application Location: Indoor & Outdoor
Installation Location:Wall

Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
