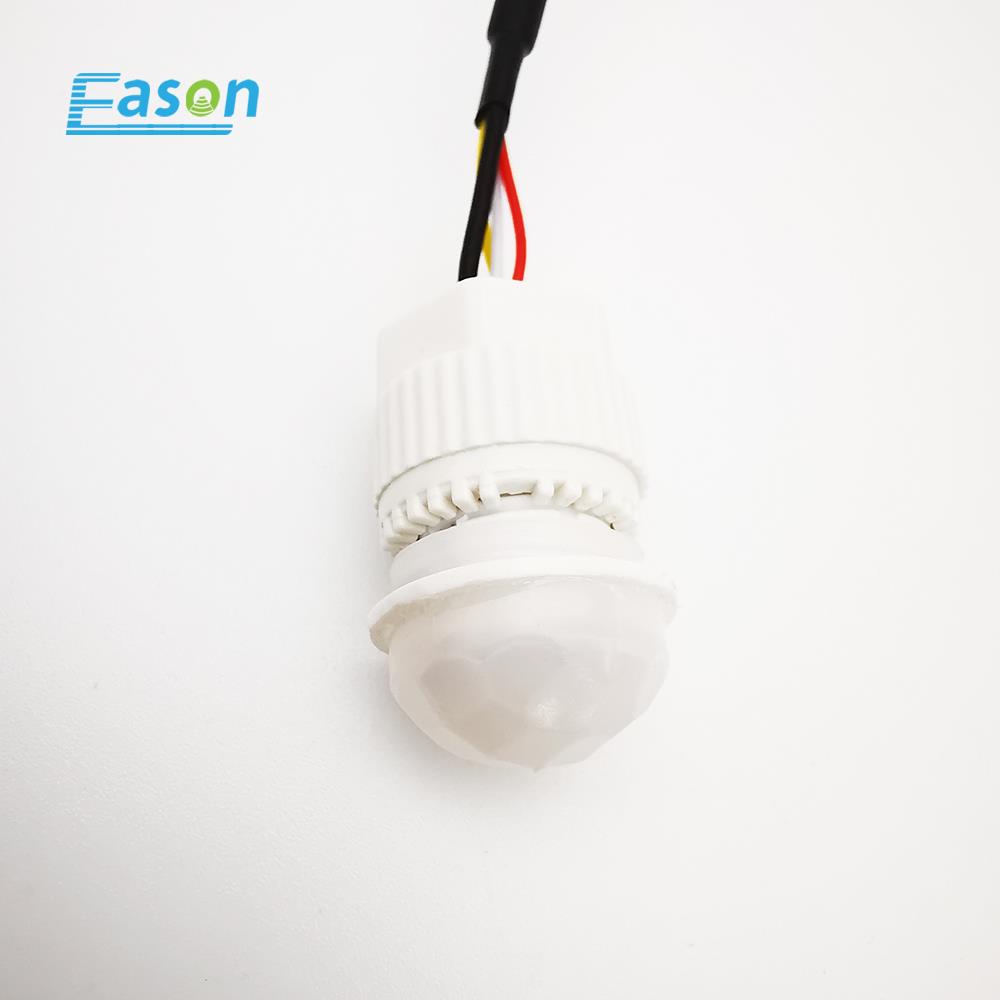

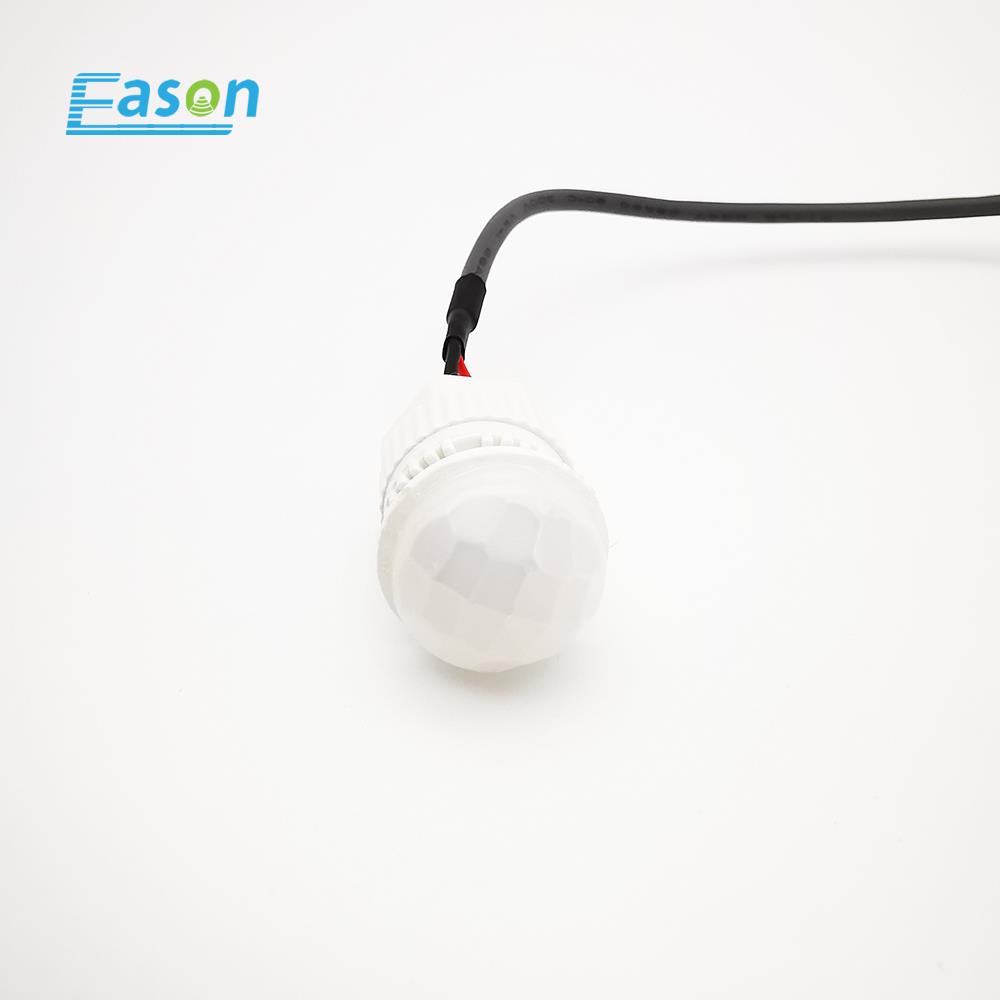

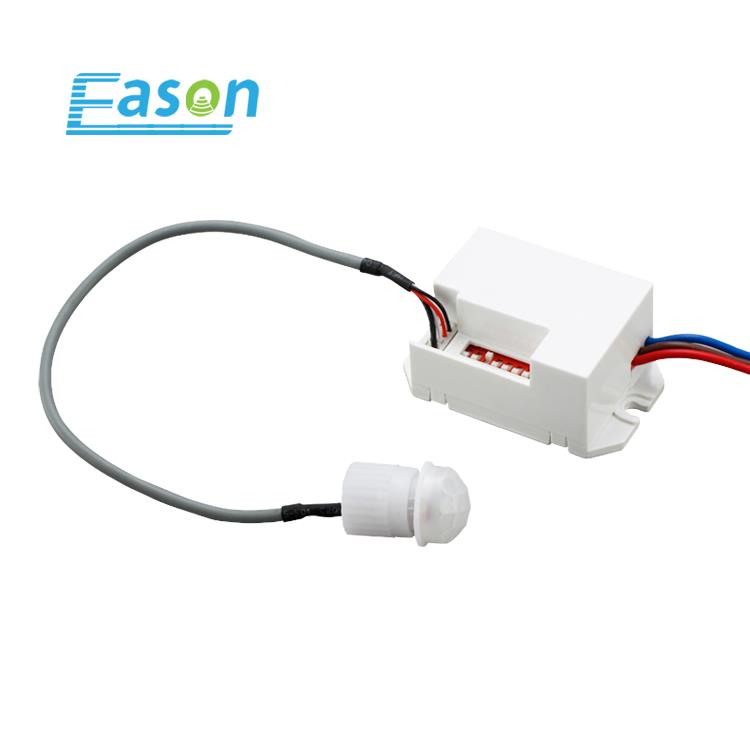

PIR Sensor SY-PIR305

INQUIRY
Input Voltage：220-240V AC 50/60Hz
Output Power：1200W（incandescent lamp), 300W（ LED）
Input Voltage：12-36V DC
Output Power：Max. 5A

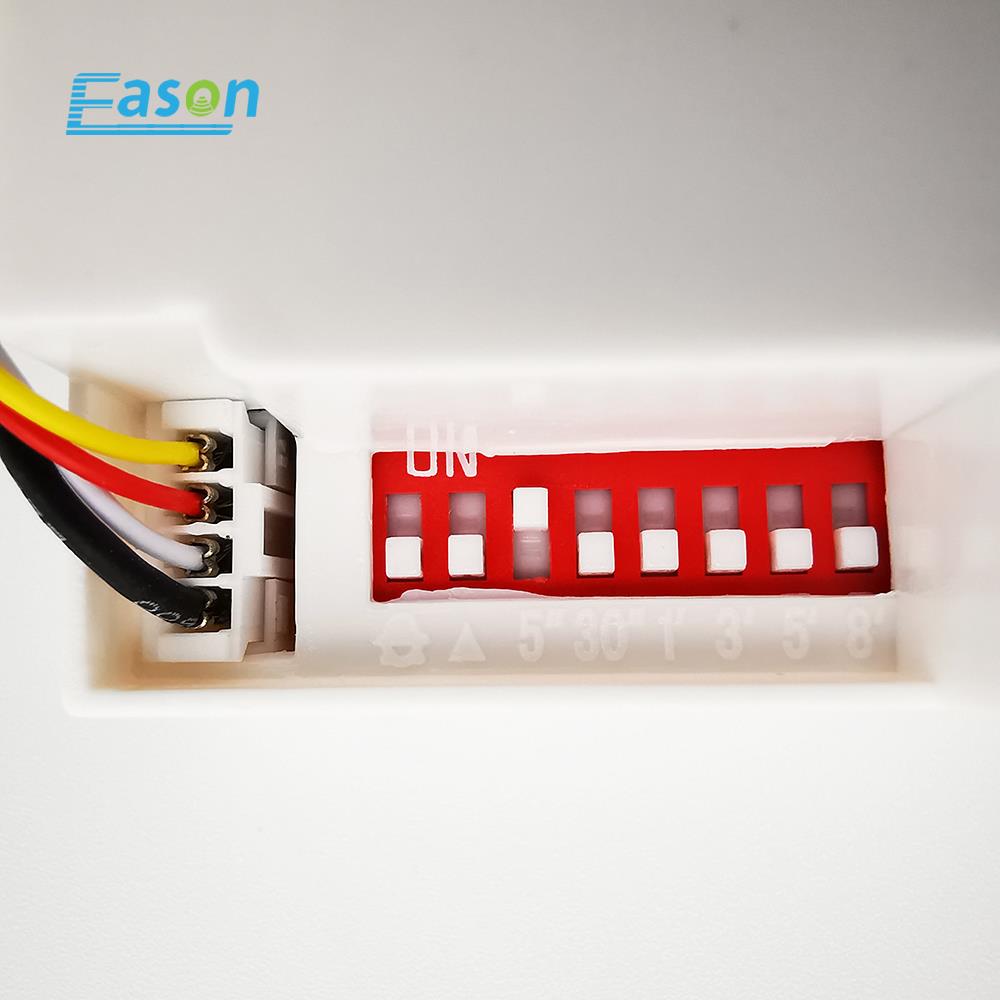

Time-Delay：5s-30s-1min-3min-5min-8min(Adjustable)
Distance：8m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Length56*Width34*Height25mm
                       (Sensor Head Diameter16.5mm)
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20/IP65
Operating Temperature：-10℃-40℃

Technical Specification:

Input Voltage：220-240V AC 50/60Hz
Output Power：1200W（incandescent lamp), 300W（ LED）
Input Voltage：12-36V DC
Output Power：Max. 5A
Time-Delay：5s-30s-1min-3min-5min-8min(Adjustable)
Distance：8m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Length56*Width34*Height25mm(Sensor Head Diameter16.5mm)
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20/IP65
Operating Temperature：-10℃-40℃
Product net weight / gross weight: 43g / 52g
Product Color：White


Application Location: Indoor & Outdoor
Installation Location:Ceiling & Integrated into the light fixture



Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
