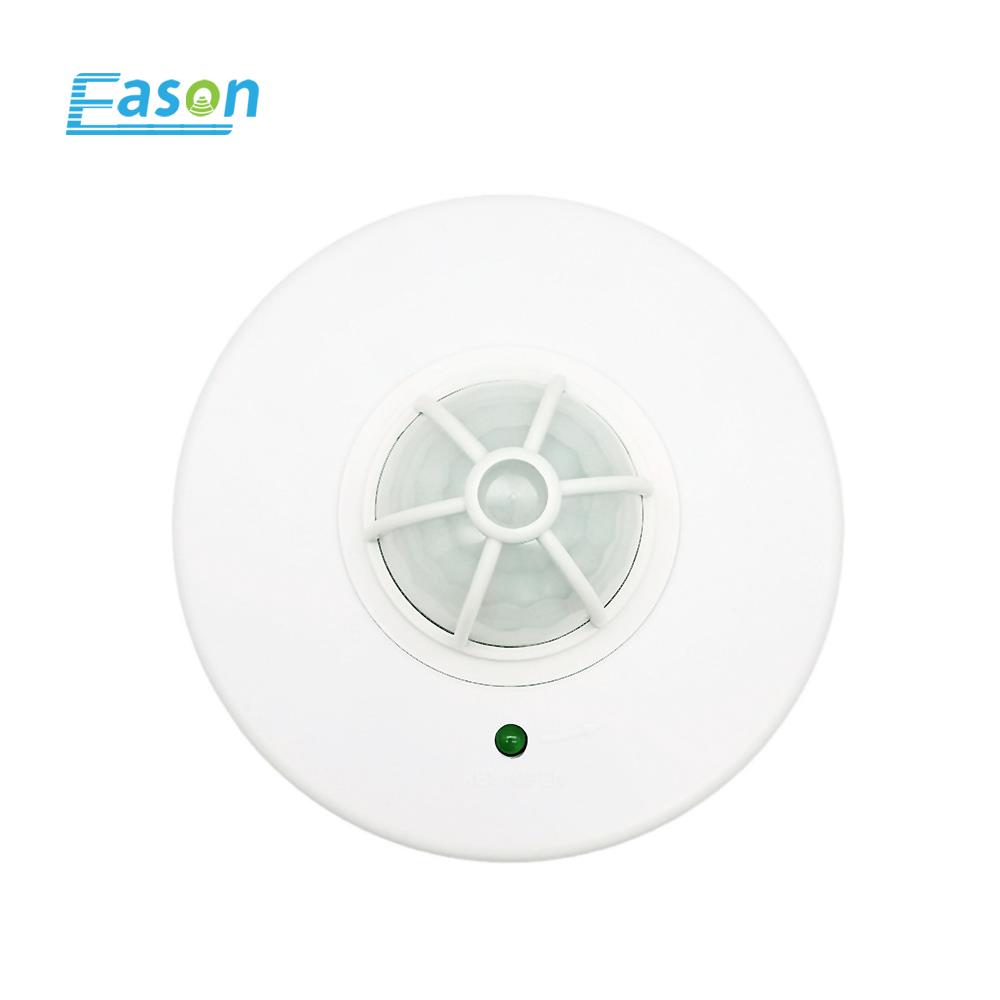

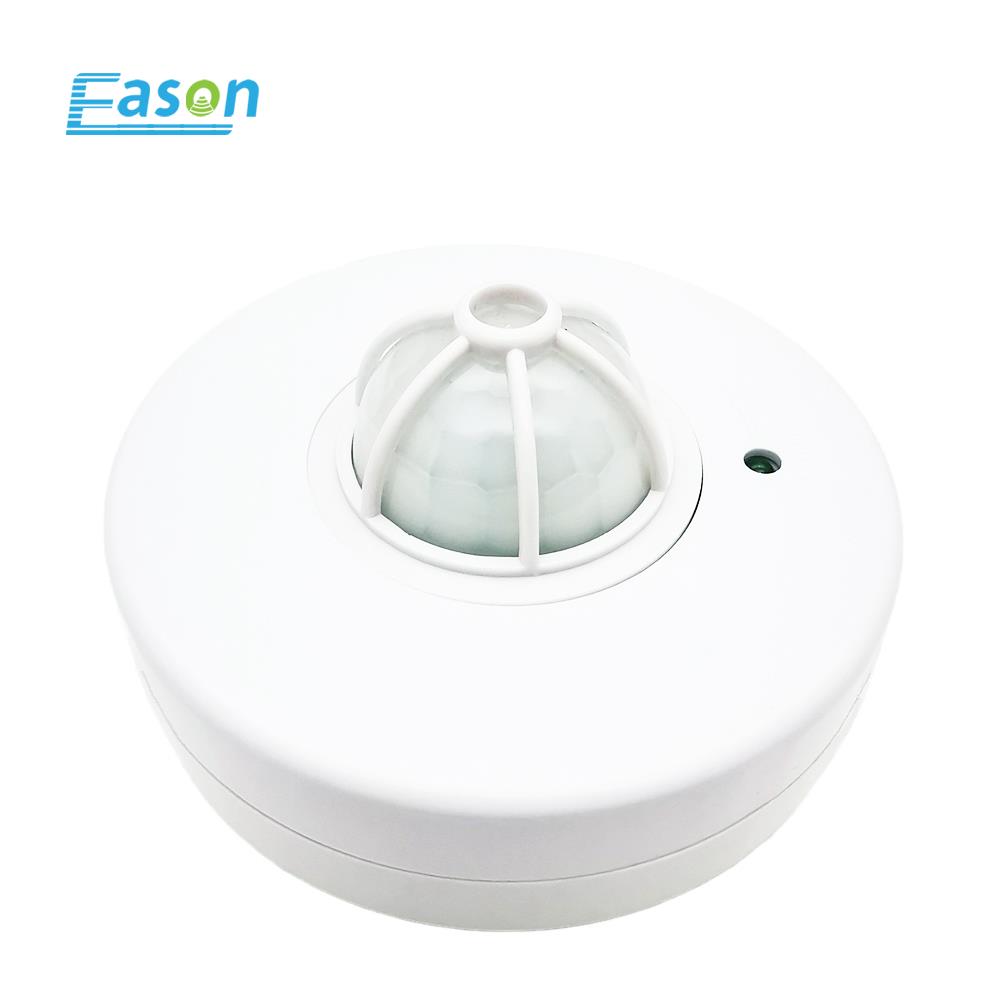

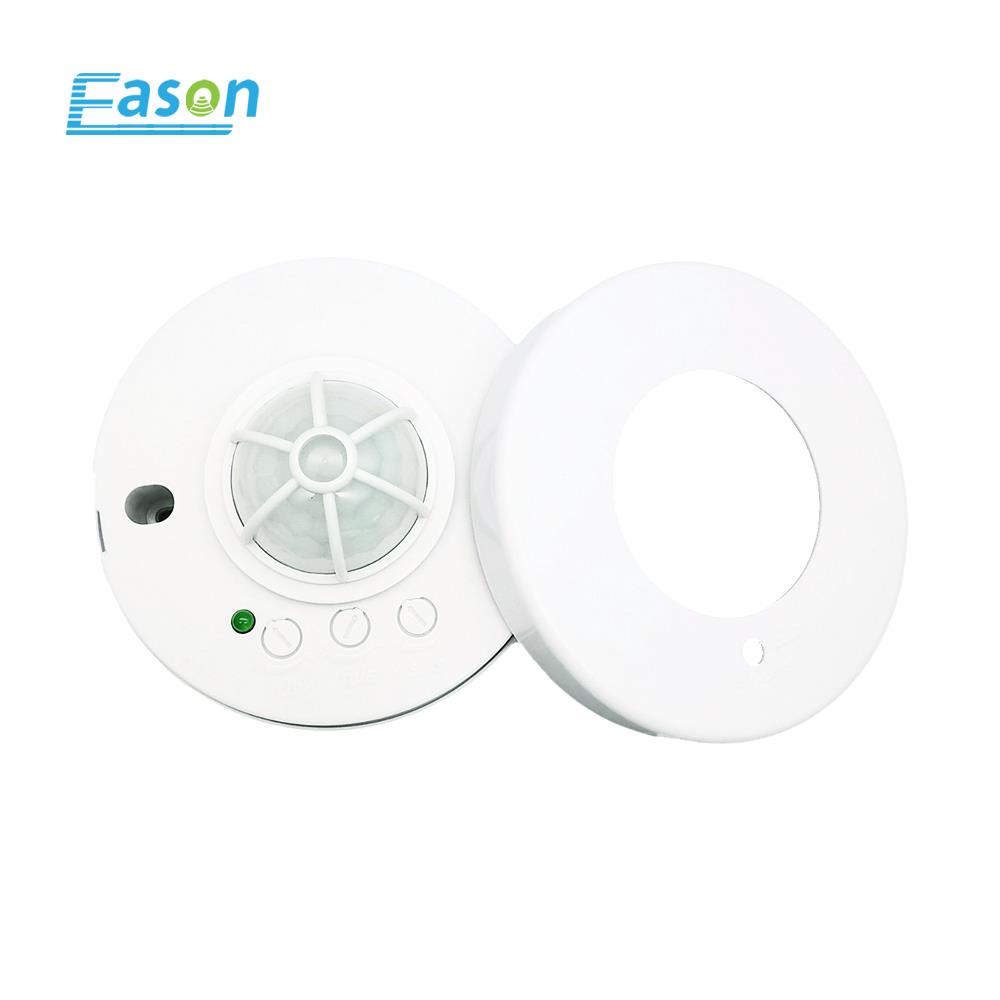

PIR Sensor SY-PIR201A

Technical Specification：

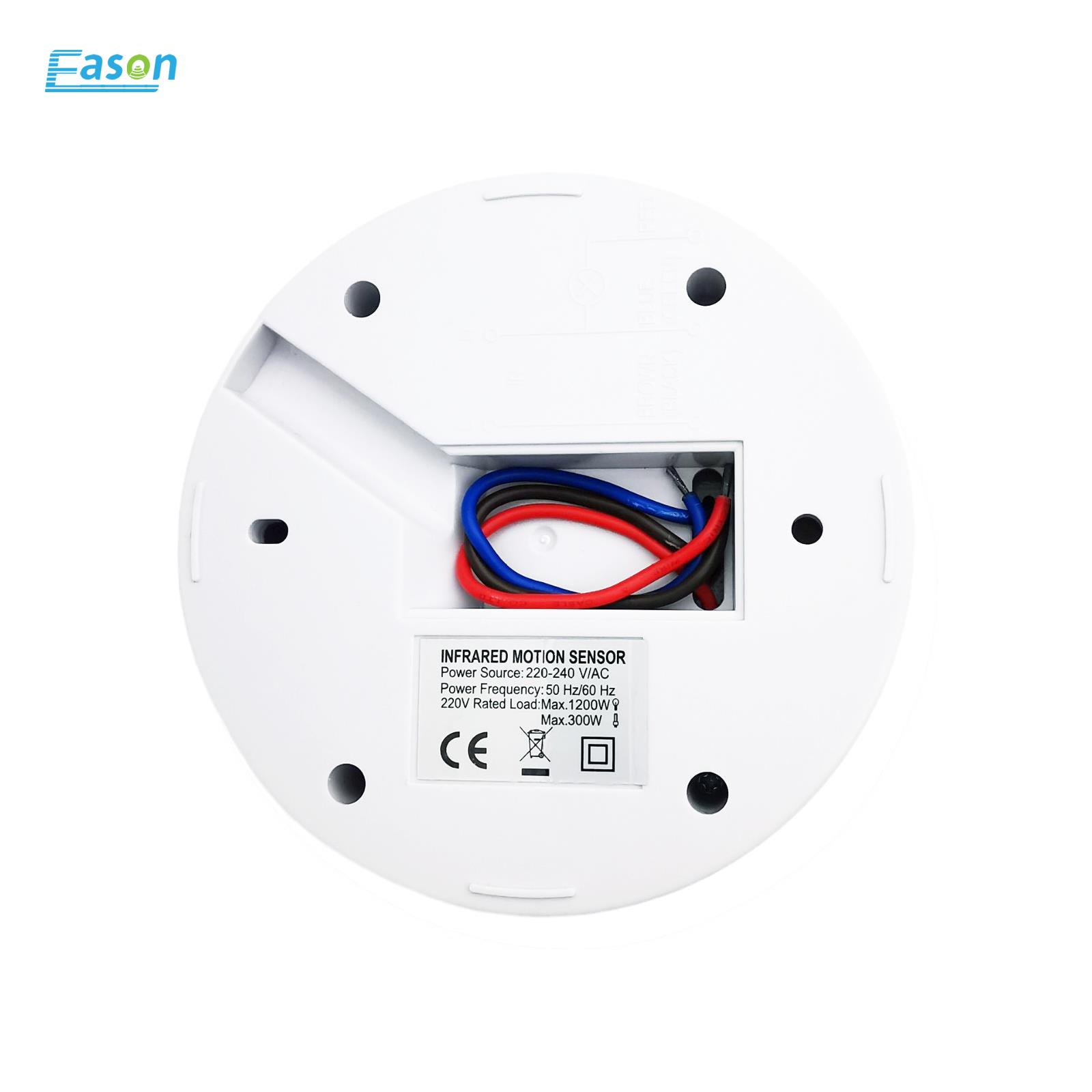

Input Voltage：220-240V AC 50/60Hz
Output Power：1200W（incandescent lamp), 300W（ LED）
Time-Delay：10s--8min(Adjustable)
Distance：12m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Diameter115*Height58mm
Installation Height：Max.2.2-4m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-20℃-40℃
Product net weight / gross weight: 130g / 175g
Product Color：White / Black

Application Location: Indoor
Installation Location: Ceiling

Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
