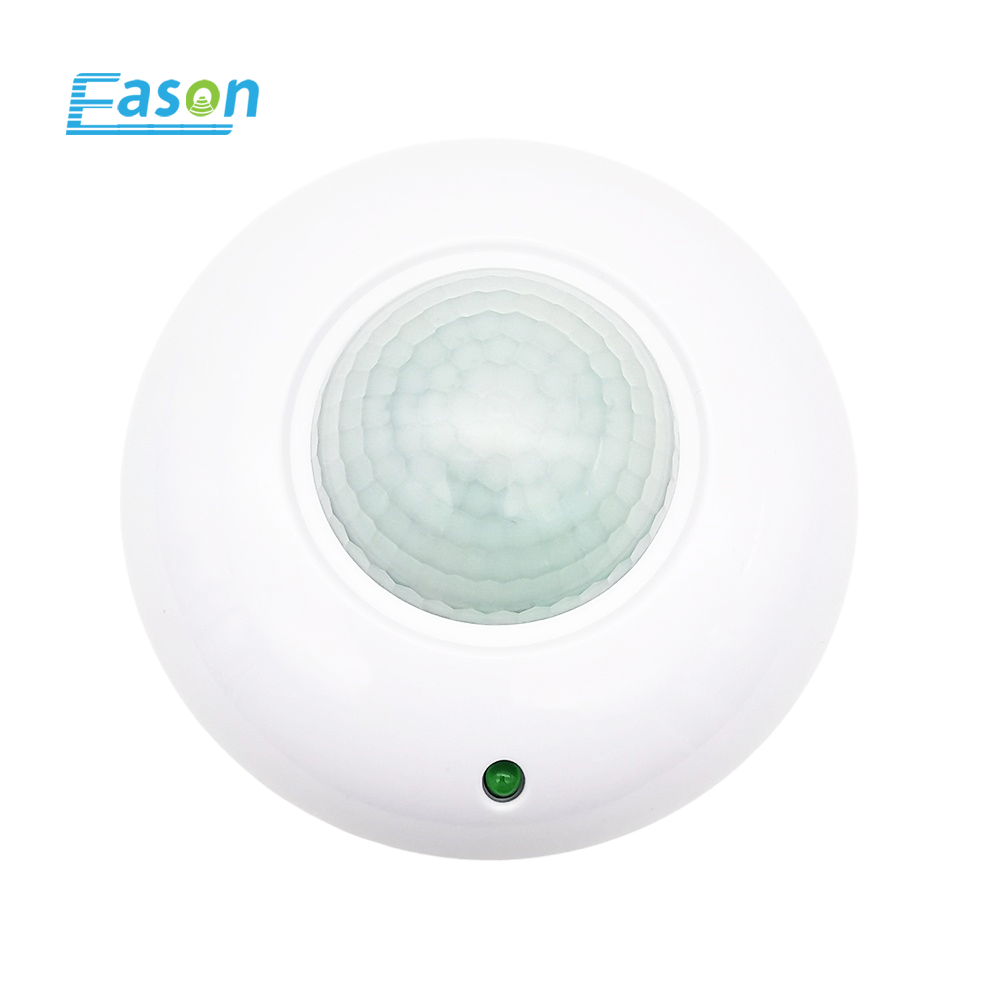

PIR Sensor SY-PIR203B
Input Voltage：220-240V AC 50/60Hz
Output Power：1200W（incandescent lamp), 300W（ LED）
Time-Delay：8s--8min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：<5Lux~1000 Lux (Adjustable)
Product Size：Diameter115*Height57mm
Installation Height：Max.2-4.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-20℃-40℃
Output Power：1200W（incandescent lamp), 300W（ LED）
Time-Delay：8s--8min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：<5Lux~1000 Lux (Adjustable)
Product Size：Diameter115*Height57mm
Installation Height：Max.2-4.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-20℃-40℃
Technical Specification:
Input Voltage：220-240V AC 50/60Hz
Output Power：1200W（incandescent lamp), 300W（ LED）
Time-Delay：8s--8min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：<5Lux~1000 Lux (Adjustable)
Product Size：Diameter115*Height57mm
Installation Height：Max.2-4.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-20℃-40℃
Product net weight / gross weight: 140g / 180g
Product Color：White
Application Location: Indoor
Installation Location: Ceiling
Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
