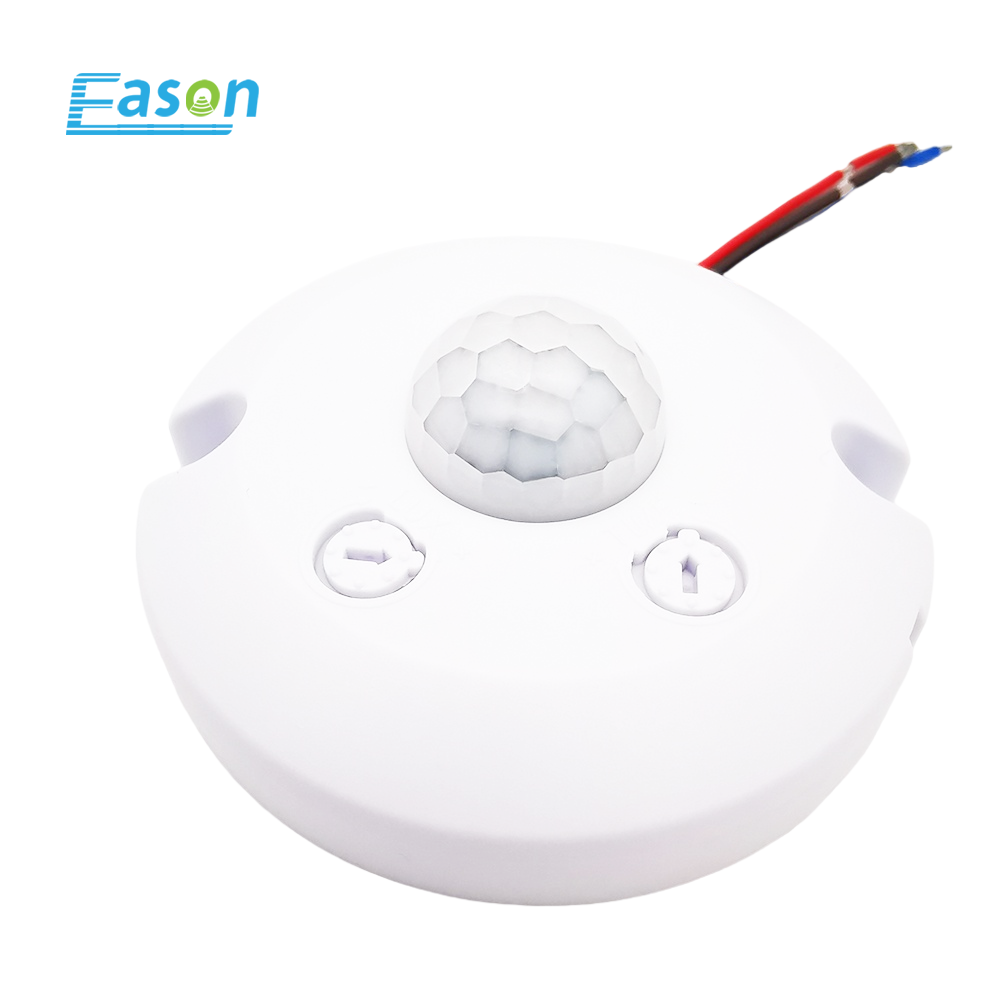

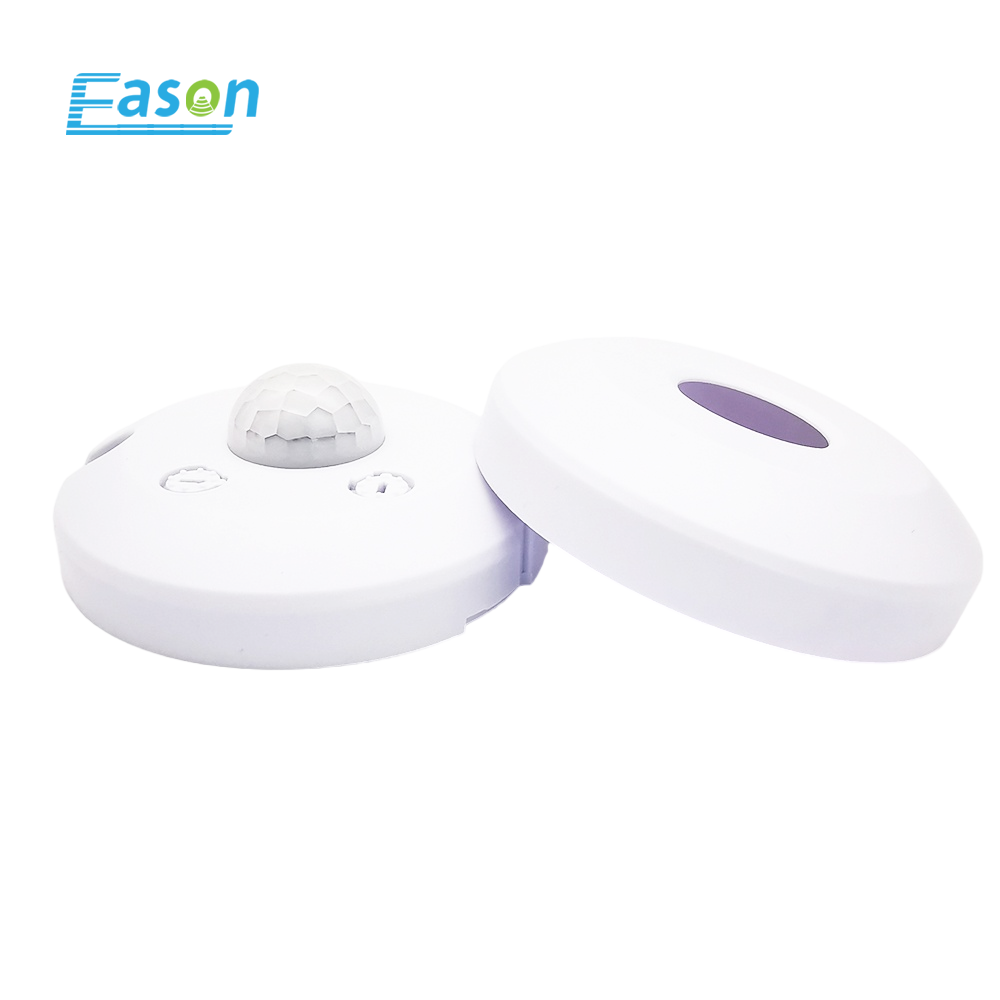

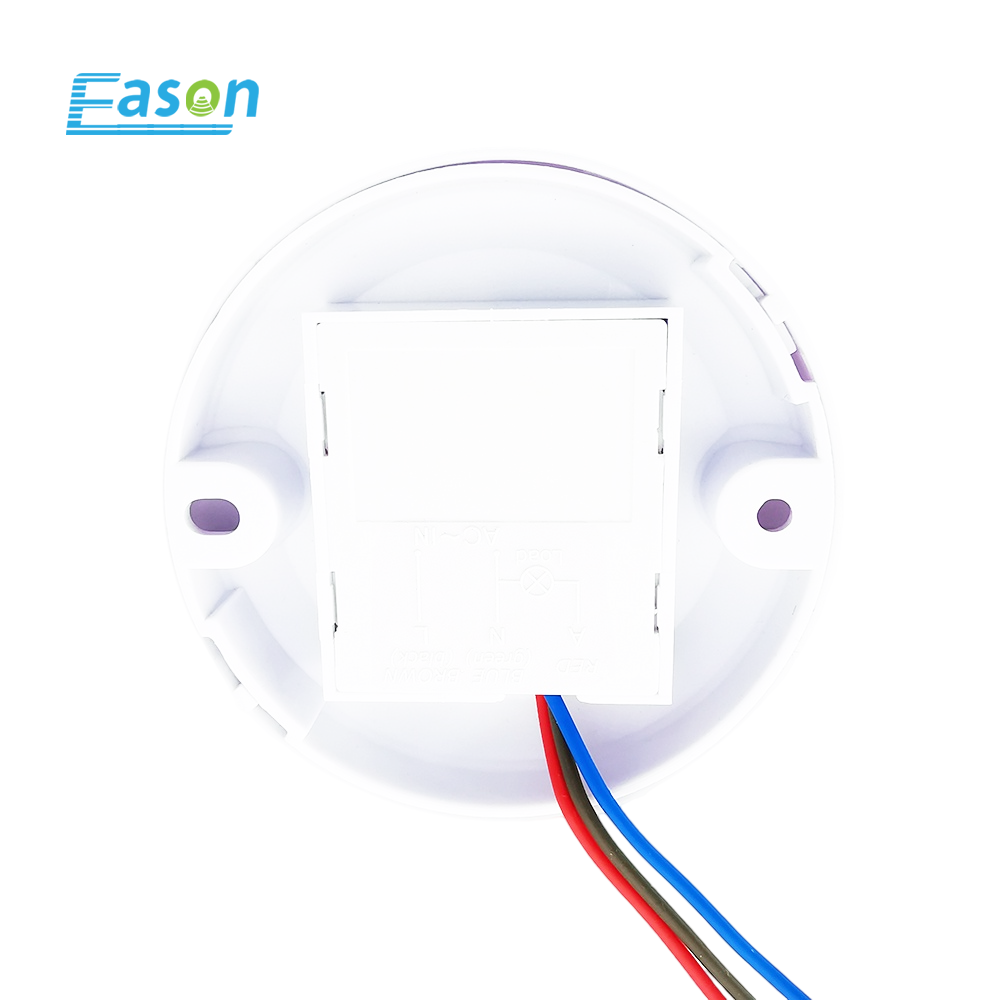

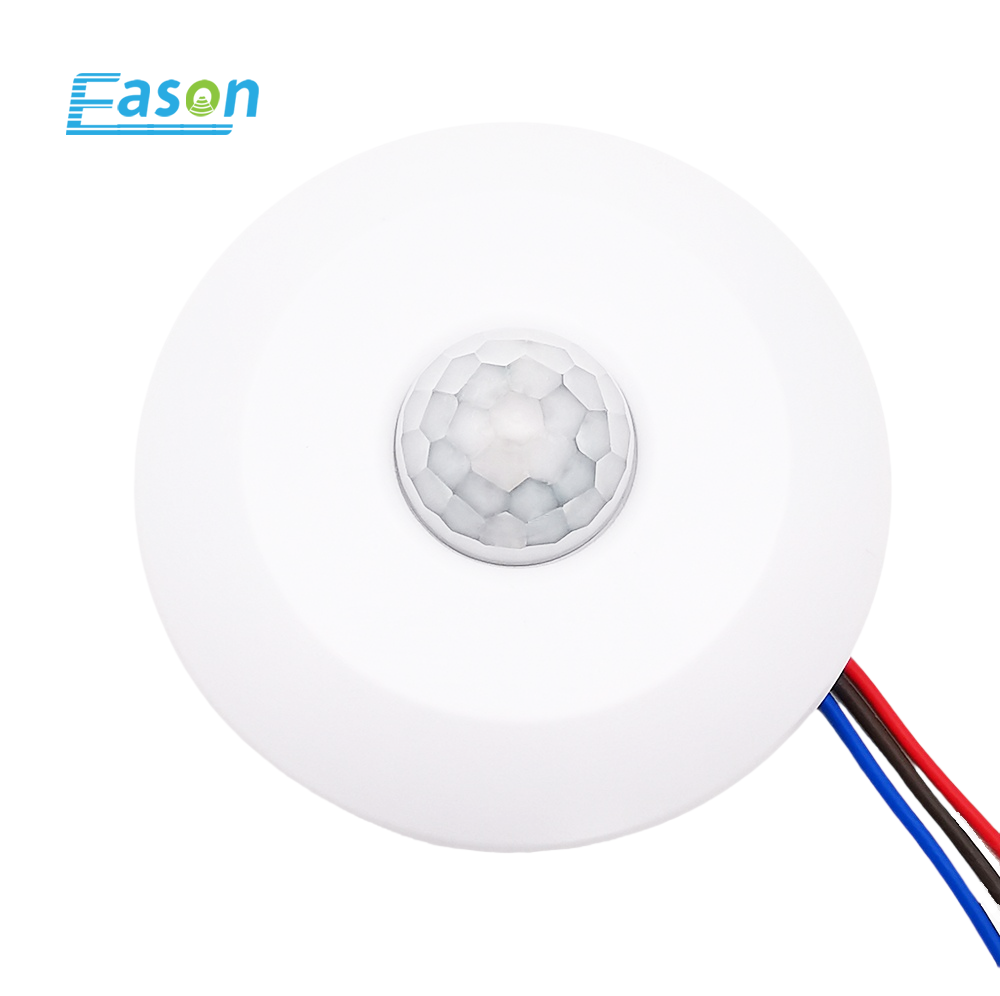

PIR Sensor SY-PIR205
Input Voltage：220-240V AC 50/60Hz
Output Power：100W（incandescent lamp), 100W（ LED）
Time-Delay：7s--7min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Diameter75*Height27mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-20℃-40℃
Output Power：100W（incandescent lamp), 100W（ LED）
Time-Delay：7s--7min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Diameter75*Height27mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-20℃-40℃
Technical Specification：
Input Voltage：220-240V AC 50/60Hz
Output Power：100W（incandescent lamp), 100W（ LED）
Time-Delay：7s--7min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Diameter75*Height27mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-20℃-40℃
Product net weight / gross weight: 38g / 67g
Product Color：White
Application Location: Indoor
Installation Location: Ceiling
Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
