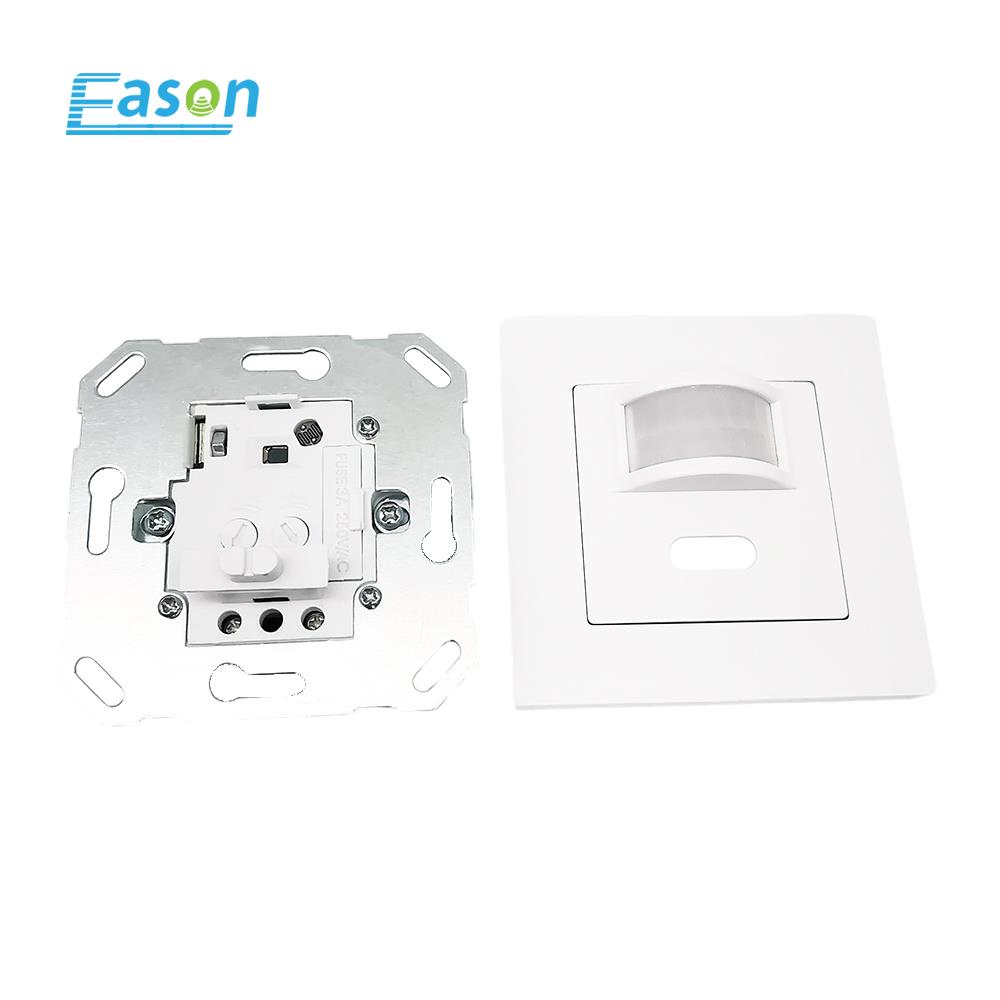

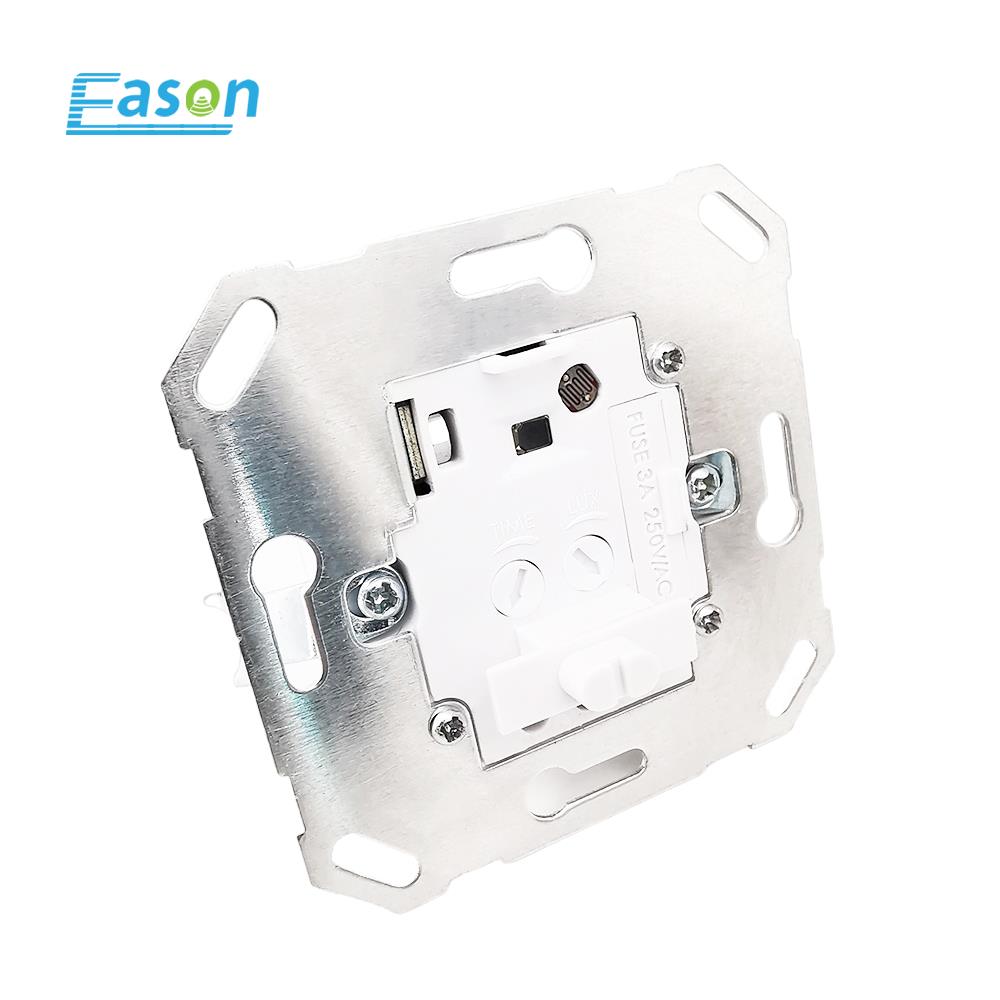

PIR Sensor SY-PIR501B
Input Voltage:220-240V AC 50/60Hz
Output Power:800W(incandescent lamp), 200W( LED)
Time-Delay:5s--7min(Adjustable)
Distance:10m.Max(<24℃)
Light Control:<5Lux~2000 Lux (Adjustable)
Product Size:Length80*Width80mm*Height44mm
Installation Height:Max.1-1.8m
Detection angle:140°
Protection Level:IP44
Operating Temperature:-20℃-40℃
Product net weight / gross weight: 78g / 105g
Product Color:White
Output Power:800W(incandescent lamp), 200W( LED)
Time-Delay:5s--7min(Adjustable)
Distance:10m.Max(<24℃)
Light Control:<5Lux~2000 Lux (Adjustable)
Product Size:Length80*Width80mm*Height44mm
Installation Height:Max.1-1.8m
Detection angle:140°
Protection Level:IP44
Operating Temperature:-20℃-40℃
Product net weight / gross weight: 78g / 105g
Product Color:White
Technical Specification:
Input Voltage:220-240V AC 50/60Hz
Output Power:800W(incandescent lamp), 200W( LED)
Time-Delay:5s--7min(Adjustable)
Distance:10m.Max(<24℃)
Light Control:<5Lux~2000 Lux (Adjustable)
Product Size:Length80*Width80mm*Height44mm
Installation Height:Max.1-1.8m
Detection angle:140°
Protection Level:IP44
Operating Temperature:-20℃-40℃
Product net weight / gross weight: 78g / 105g
Product Color:White
Application Location: Indoor
Installation Location: Wall
Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
