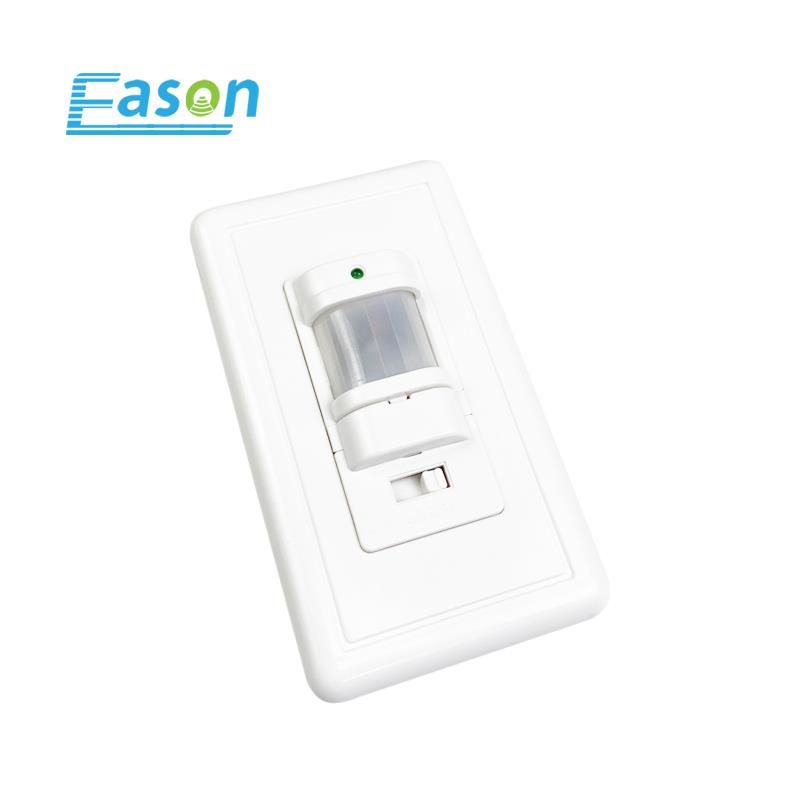

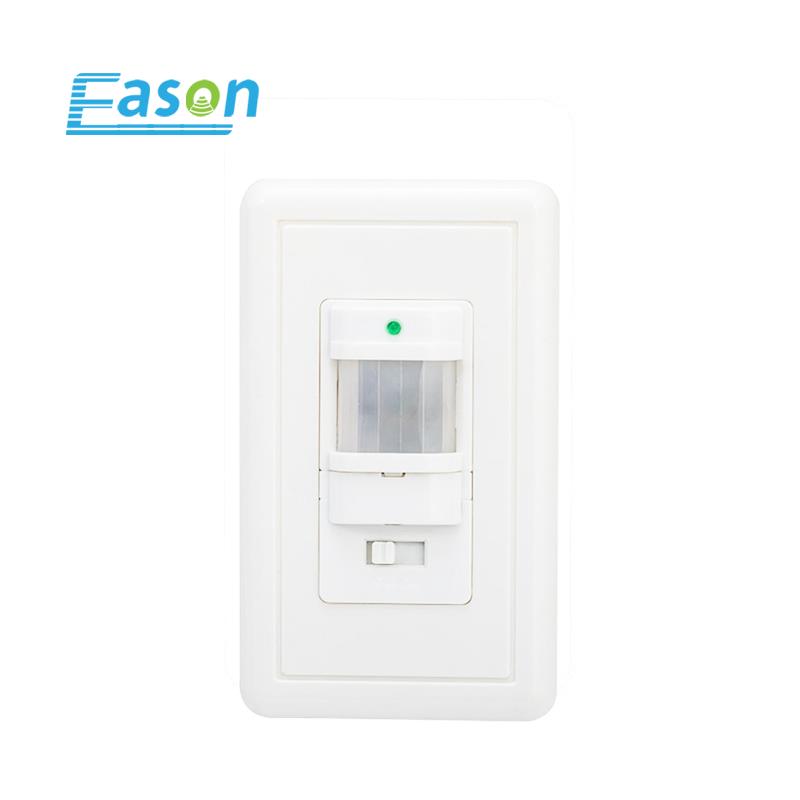

PIR Sensor SY-PIR502
Output Power:1200W(incandescent lamp), 300W( LED)
Time-Delay:8s--7min(Adjustable)
Distance:9m.Max(<24℃)
Light Control:<20 Lux
Product Size:Length120*Width70mm*Height42mm
Installation Height:Max.0.4-1.8m
Detection angle:180°
Protection Level:IP20
Operating Temperature:-10℃-40℃
Product net weight / gross weight: 95g / 114g
Product Color:White
Our wall switch occupancy sensor comes with intelligent time delay adjustment, suitable for various environments. With a 180° detection angle, a maximum 9meter detection range, Effortlessly control your lighting system, Incorporate your smart light solutions systems.
Technical Specification:
Input Voltage:220-240V AC 50/60Hz
Output Power:1200W(incandescent lamp), 300W( LED)
Time-Delay:8s--7min(Adjustable)
Distance:9m.Max(<24℃)
Light Control:<20 Lux
Product Size:Length120*Width70mm*Height42mm
Installation Height:Max.0.4-1.8m
Detection angle:180°
Protection Level:IP20
Operating Temperature:-10℃-40℃
Product net weight / gross weight: 95g / 114g
Product Color:White
Application Location: Indoor
Installation Location: Wall
Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
