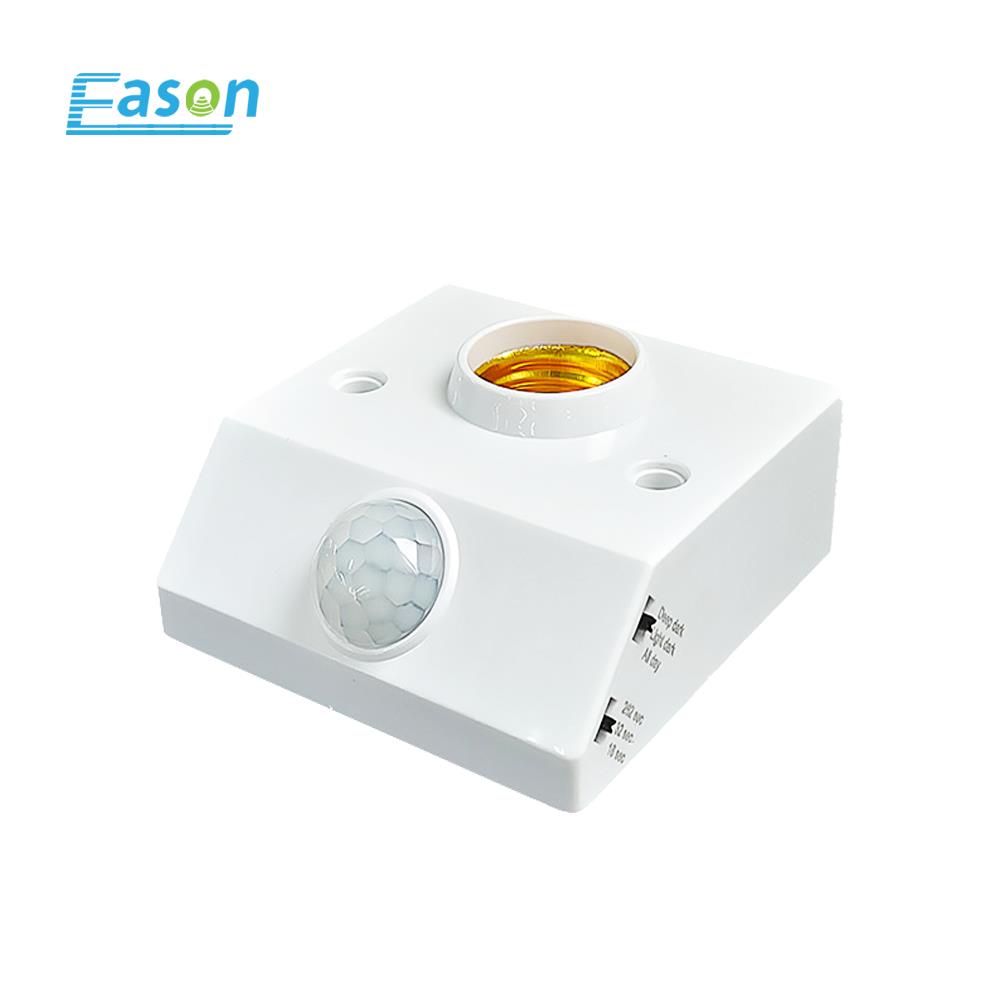

PIR Lamp Holder SY-PH101

Our motion sensor light socket employs passive infrared technology with intelligent time delay adjustment. It features a 360° detection angle and a maximum 6-meter detection range. It allows users to effortlessly achieve smart lighting control and energy saving.

Technical Specification:

Input Voltage：100-240V AC 50/60Hz
Output Power：200W（incandescent lamp), 100W（ LED）
Time-Delay：10s，32s，262s(Adjustable)
Distance：3m.Max(＜24℃)
Light Control：Deep dark, Light dark, All day (Adjustable)
Product Size：Length86*Width86mm*Height30mm
Installation Height：Max.3m
Detection angle：120°
Protection Level：IP20
Operating Temperature：-10℃-40℃
Product Color：White

Application Location: Indoor

Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses

(4) Garages & Parking Lot
