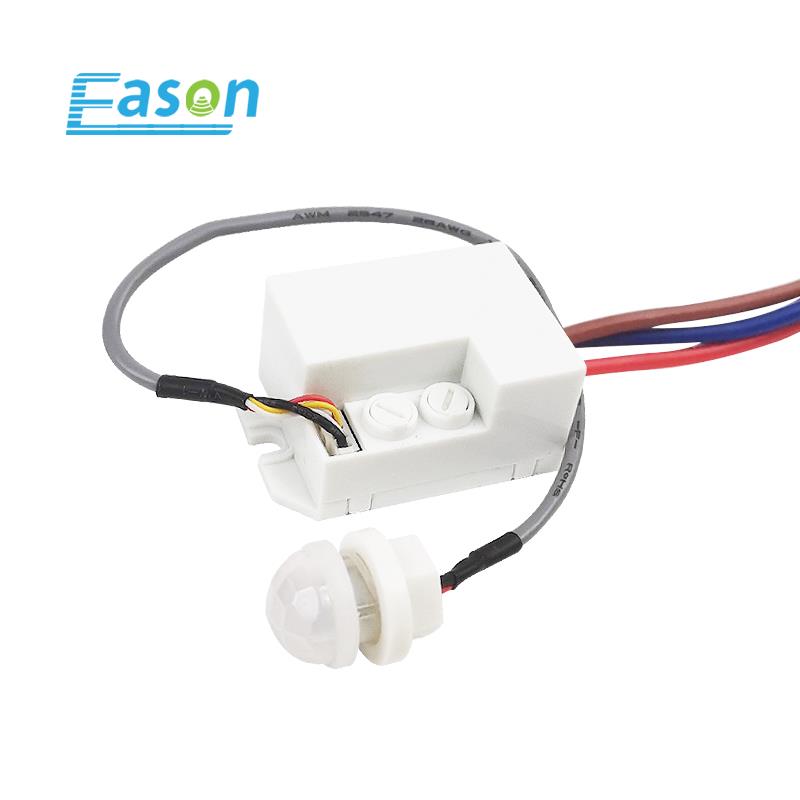

PIR Sensor SY-PIR303

Our 360° Mini Recessed PIR Ceiling Occupancy Motion Sensor offers versatile time delay settings, suitable for a wide range of applications. With IP20/IP65 protection, an 6-meter maximum detection range, and a 360° detection angle, it provides extensive coverage to meet various needs.

Technical Specification:

Input Voltage：220-240V AC 50/60Hz
Output Power：800W（incandescent lamp), 500W（ LED）
Input Voltage：12-36V DC
Output Power：Max. 5A
Time-Delay：10s-7min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：<20Lux~2000 Lux (Adjustable)
Product Size：Length56*Width35*Height20mm (Sensor Head Diameter20mm)
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20/IP65
Operating Temperature：-10℃-40℃
Product Color：White

Application Location: Indoor & Outdoor
Installation Location:Ceiling & Integrated into the light fixture

Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
