PIR Sensor SY-PIR303

Technical Specification:
Input Voltage：220-240V AC 50/60Hz
Output Power：800W（incandescent lamp), 200W（ LED）
Time-Delay：5s--8min(Adjustable)
Distance：11m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)

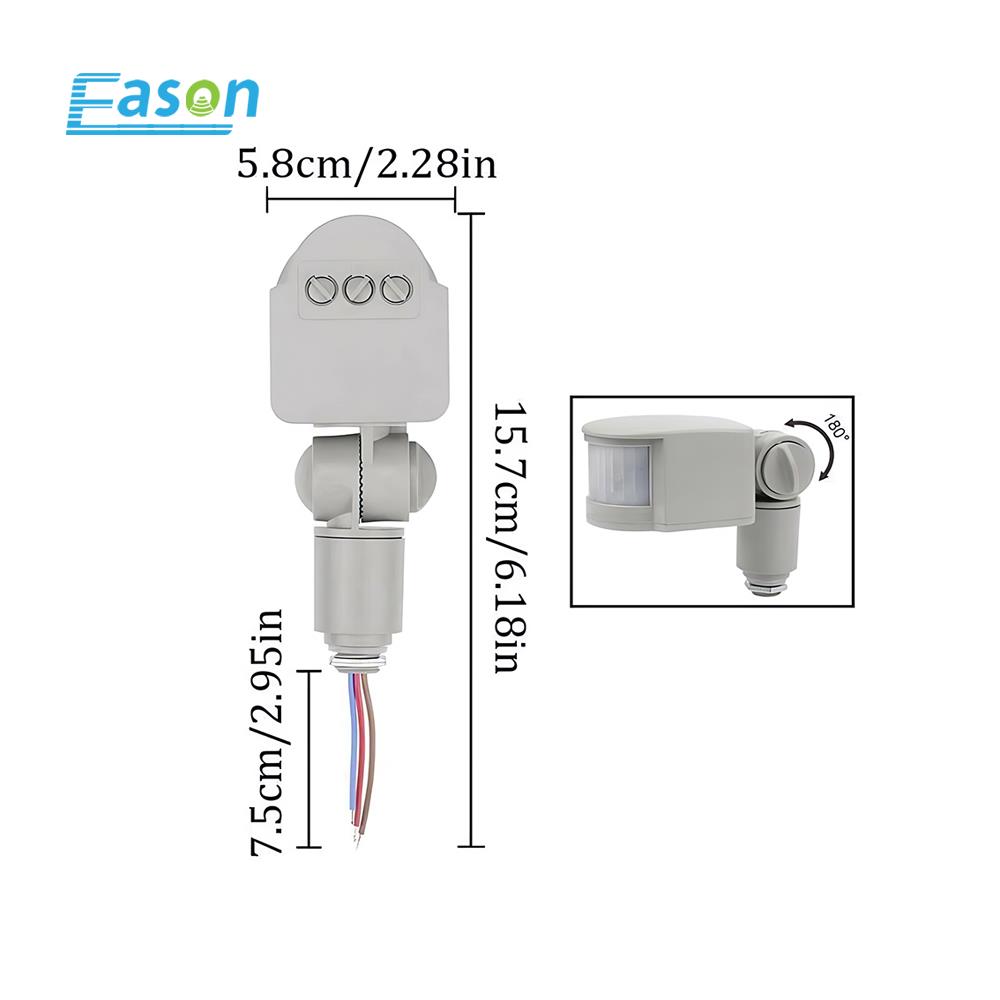

Product Size：Length158*Width58*Height48mm
Installation Height：Max.3.5m
Detection angle：180°
Protection Level：IP44
Operating Temperature：-10℃-40℃
Product net weight / gross weight: 90g / 130g

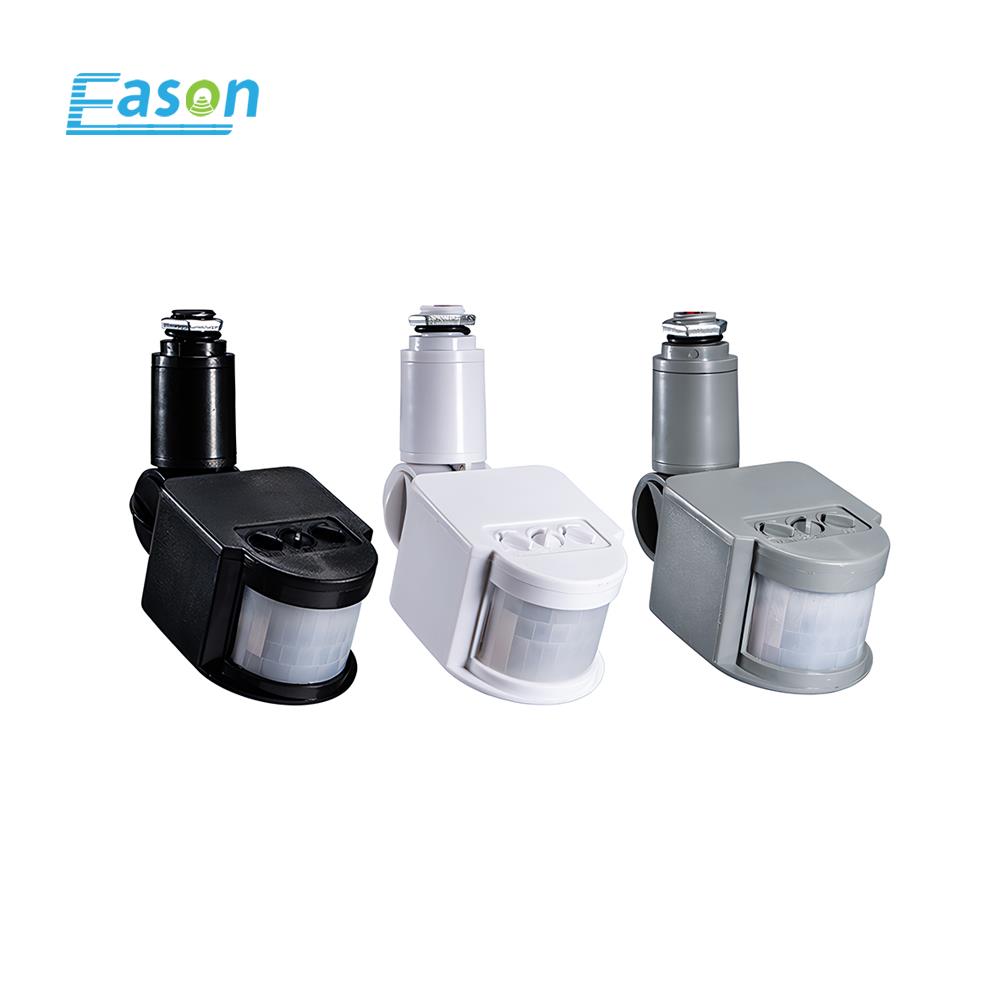

Product Color：White / Black / Gray

Application Location: Indoor & Outdoor
Installation Location: Use with floodlights

Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
