PIR Sensor SY-PIR15

INQUIRY
Input Voltage：220-240V AC 50/60Hz
Output Power：1200W（incandescent lamp), 600W（ LED）
Time-Delay：10s-30min(Adjustable)
Distance：8m.Max(＜24℃)
Light Control：<3Lux~2000 Lux (Adjustable)

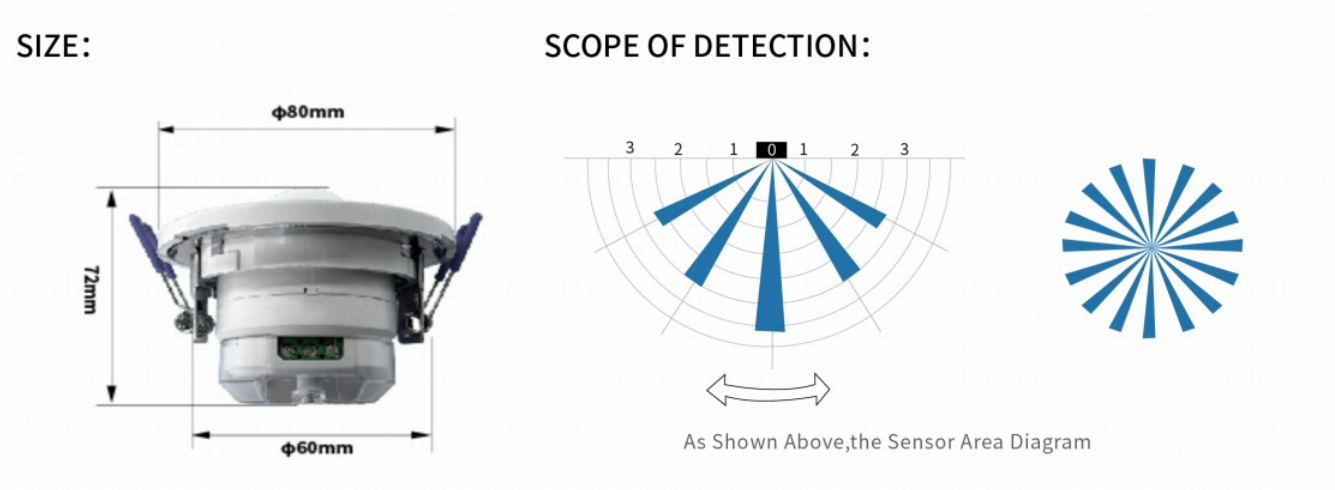

Product Size：Diameter60*Height72mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-10℃-40℃

Technical Specification:
Input Voltage：220-240V AC 50/60Hz
Output Power：1200W（incandescent lamp), 600W（ LED）
Time-Delay：10s-30min(Adjustable)
Distance：8m.Max(＜24℃)
Light Control：<3Lux~2000 Lux (Adjustable)
Product Size：Diameter60*Height72mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-10℃-40℃
Product net weight / gross weight:
Product Color：White



Application Location: Indoor
Installation Location: Ceiling recessed installationay



Application Scenarios:
(1) Villas & Houses & Apartments & Hotels & Offices
(2) Workshop & Staircases & Corridors
(3) Public Toilets & Restrooms & Warehouses
(4) Garages & Parking Lot
