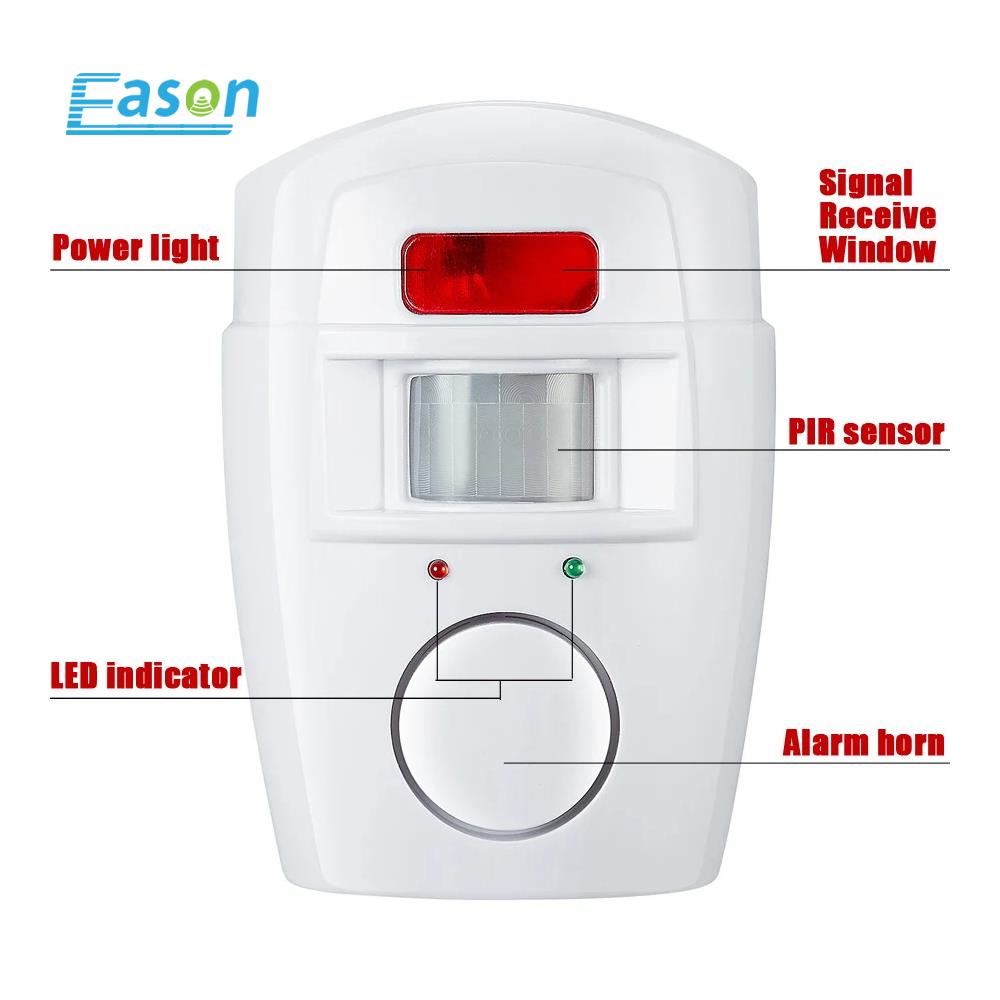

Remote control infrared alarm SY-PIR504
Input Voltage: 220-240V AC 50/60Hz&DC 6V (can hold 4 AA batteries)
Distance：4-5m
Alarm sound level: 105dB (decibel) measured at 30cm
Product Size：Length*Width*Height
Detection angle：100°
Protection Level：IP20
Operating Temperature：-10℃-50℃
Product net weight / gross weight: 200g
Product Color：White
How to use:
1. Install the battery. Press the remote control, the machine will make a "beep" sound, and the green light will be on. It means the alarm is ready to work.
2. The remote infrared alarm will be on standby for 15 seconds when the green light is on. If no alarm signal is detected within 15 seconds, you must leave the detection area of the electronic dog within these 15 seconds.
3. If someone enters the detection area of the infrared alarm after 15 seconds, the red light will flash for 5 seconds. During this 5-second delay, it is convenient for the owner to turn off the alarm with the remote control. After 5 seconds, if no signal from the remote control is received, a 30-second harsh alarm sound will be issued, and the alarm volume is 105 DB. 15 seconds after the alarm sound ends, if someone touches the remote infrared alarm again, it will alarm again, and it will repeat over and over again.
4. When the remote infrared alarm alarms, you can use the remote control to turn off the detection circuit and end the alarm.
Installation requirements:
1. Since the infrared detection sensitivity of the remote infrared alarm is the highest when the human body moves horizontally relative to the lens, and the longitudinal movement sensitivity is poor, the angle and height of the horizontal plane of the detector should be paid attention to during installation, which has a great impact on the protection area.
2. When installing, avoid placing the infrared alarm close to cold and hot sources, such as cold and hot air outlets, air conditioning outlets, electric heaters, air coolers, etc., and avoid directly facing the door.
3. The remote infrared alarm should be able to see directly into the protected range without obstacles.
4. The remote infrared alarm should be at an angle of 10 to 30 degrees with the wall. At this time, the detection distance is the farthest. Adjust the installation angle according to the actual situation during installation.
Installation method:
1. Fix the universal seat about 2 meters above the ground.
2. Open the battery cover and install 4 No. 7 batteries according to the markings inside the battery box.
3. Fix the remote infrared alarm on the universal seat and rotate the infrared alarm to meet the installation requirements and detection needs.
