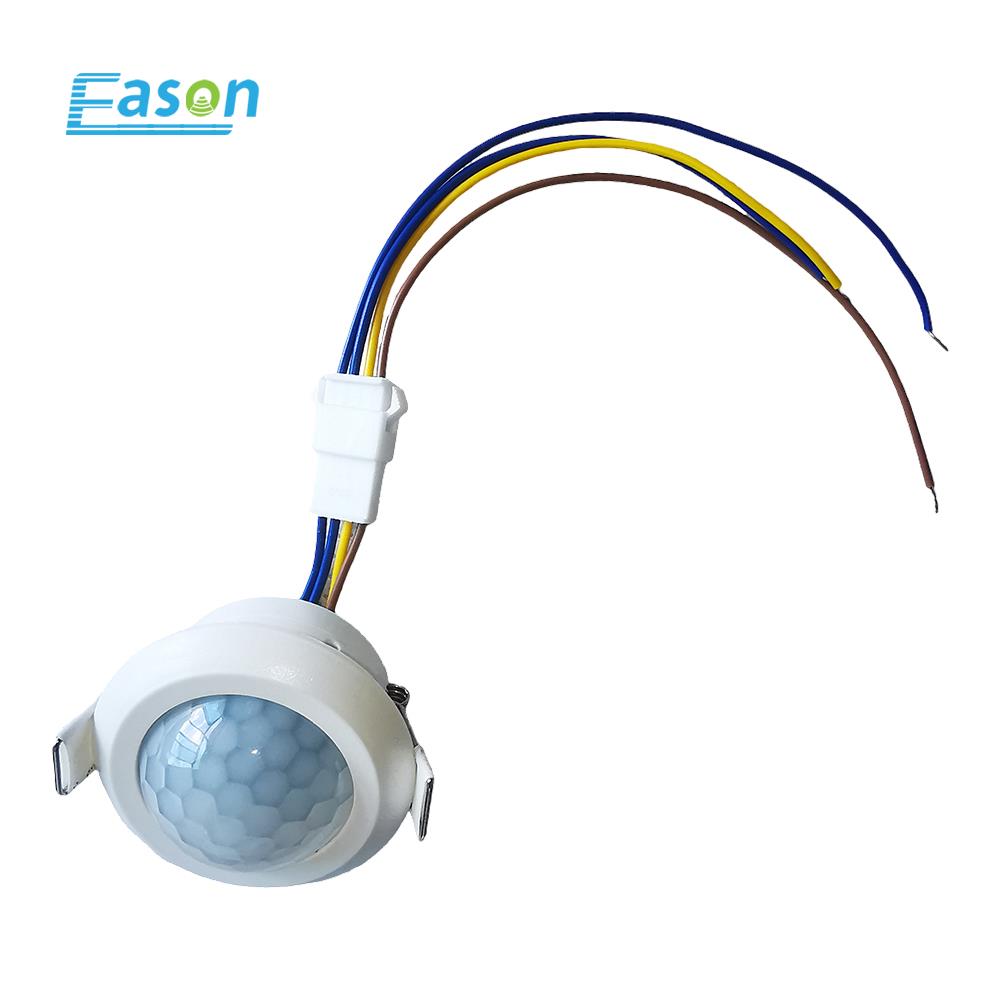

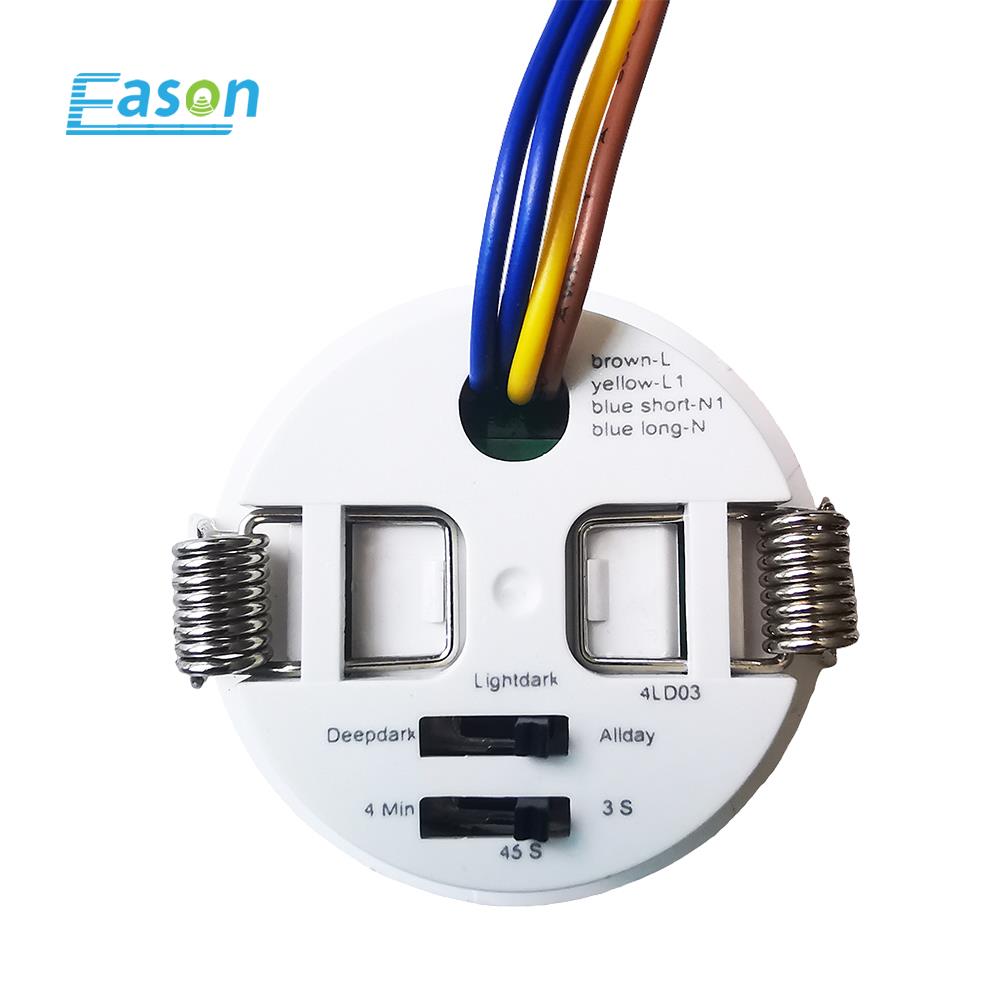

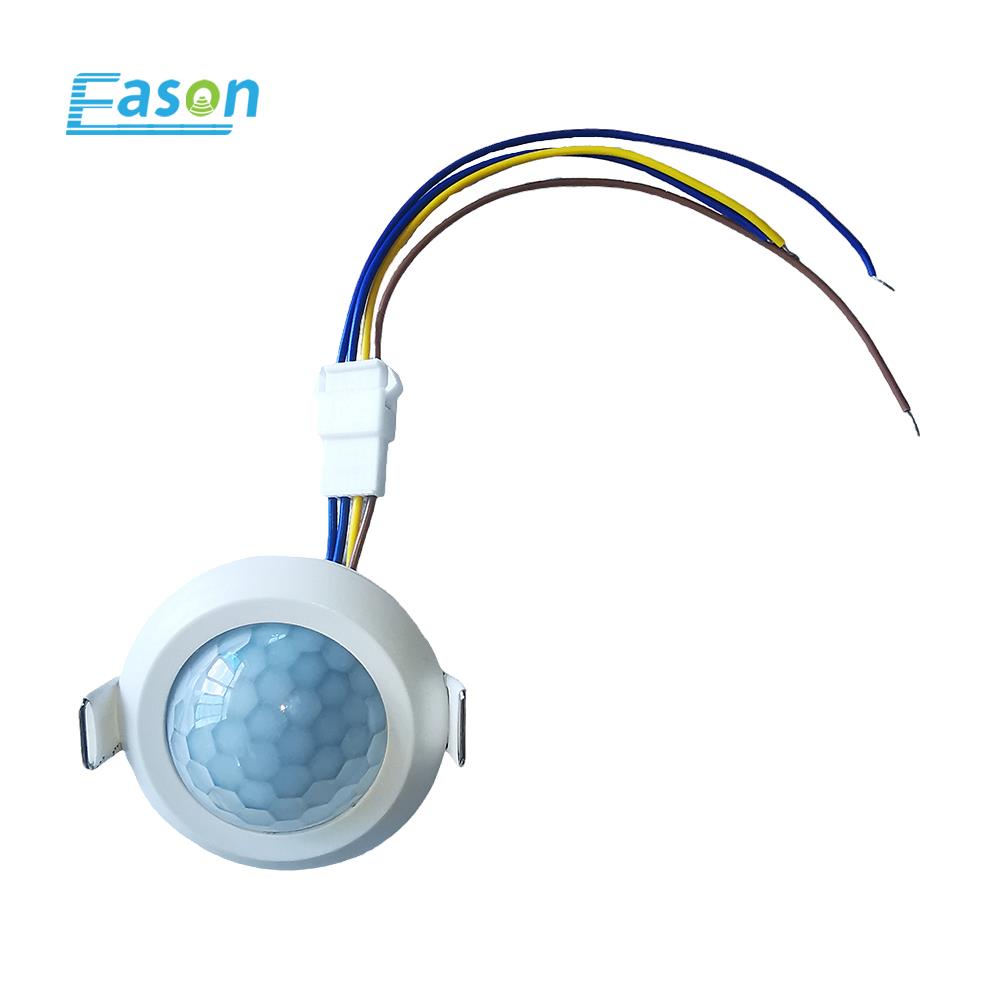

PIR Sensor SY-PIR307
Input Voltage：110-240V AC 50/60Hz
Output Power：60W.Max
Time-Delay：3s-4min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Diameter36.5*Height32mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-10℃-40℃
Output Power：60W.Max
Time-Delay：3s-4min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Diameter36.5*Height32mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-10℃-40℃
Technical Specification:
Input Voltage：110-240V AC 50/60Hz
Output Power：60W.Max
Time-Delay：3s-4min(Adjustable)
Distance：6m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Diameter36.5*Height32mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-10℃-40℃
Product net weight / gross weight: 28g
Product Color：White
Application Location: Indoor
Installation Location: Ceiling recessed installation
Application Scenarios:
1. Villas & Houses & Apartments & Hotels & Offices
2. Workshop & Staircases & Corridors
3. Public Toilets & Restrooms & Warehouses
4. Garages & Parking Lot
