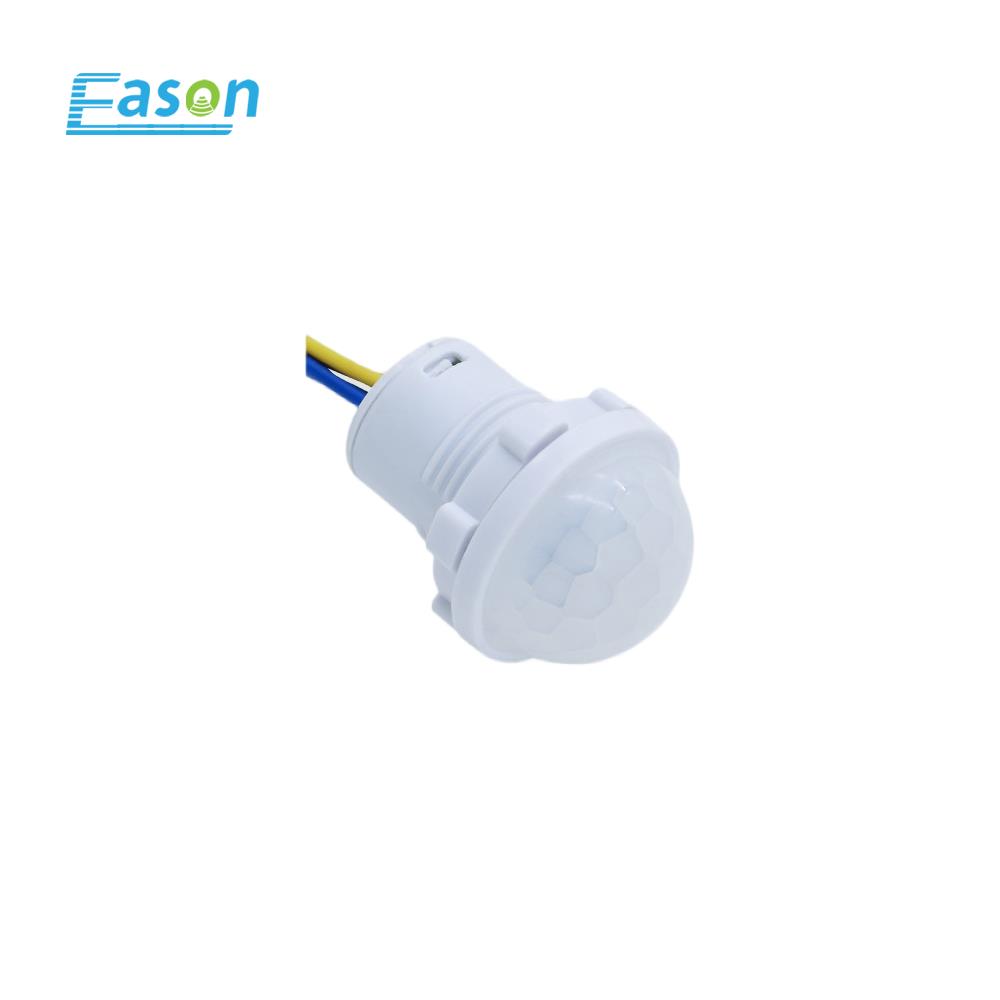

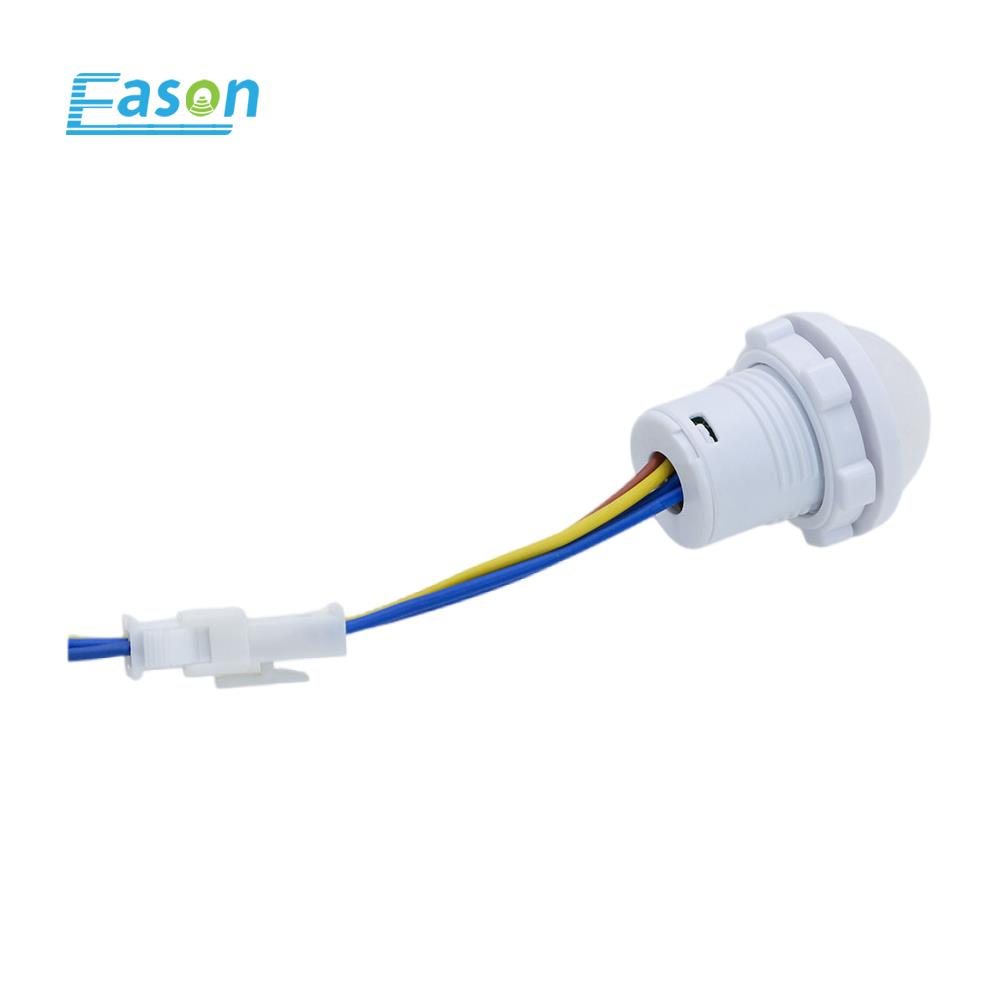

PIR Sensor SY-PIR308

INQUIRY
Input Voltage：110-240V AC 50/60Hz
Output Power：40W.Max
Time-Delay：30S
Distance：5m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Diameter19*Height35mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-10℃-40℃

Technical Specification:
Input Voltage：110-240V AC 50/60Hz
Output Power：40W.Max
Time-Delay：30S
Distance：5m.Max(＜24℃)
Light Control：<10Lux~2000 Lux (Adjustable)
Product Size：Diameter19*Height35mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-10℃-40℃
Product net weight / gross weight: 15g
Product Color：White



Application Location: Indoor
Installation Location: Wall / Ceiling recessed installation



Application Scenarios:
1. Villas & Houses & Apartments & Hotels & Offices
2. Workshop & Staircases & Corridors
3. Public Toilets & Restrooms & Warehouses
4. Garages & Parking Lot
