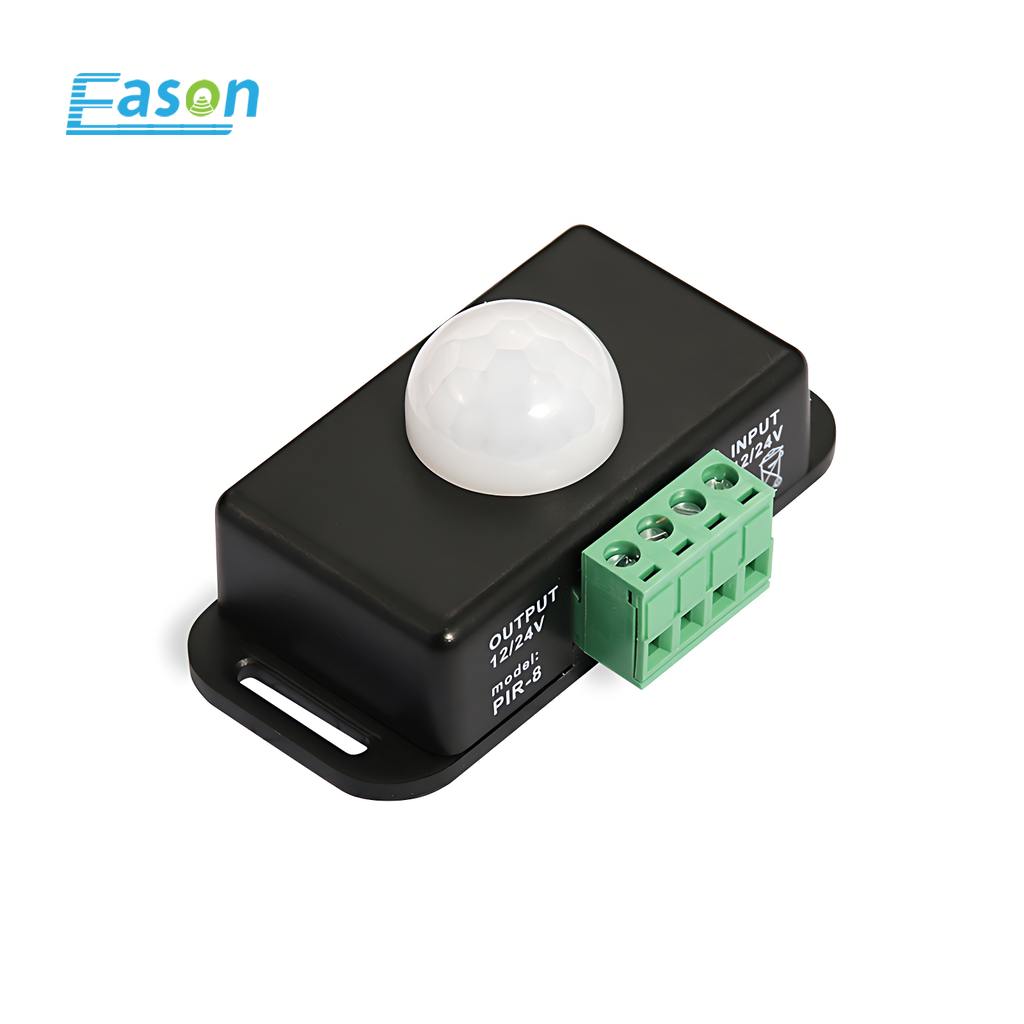

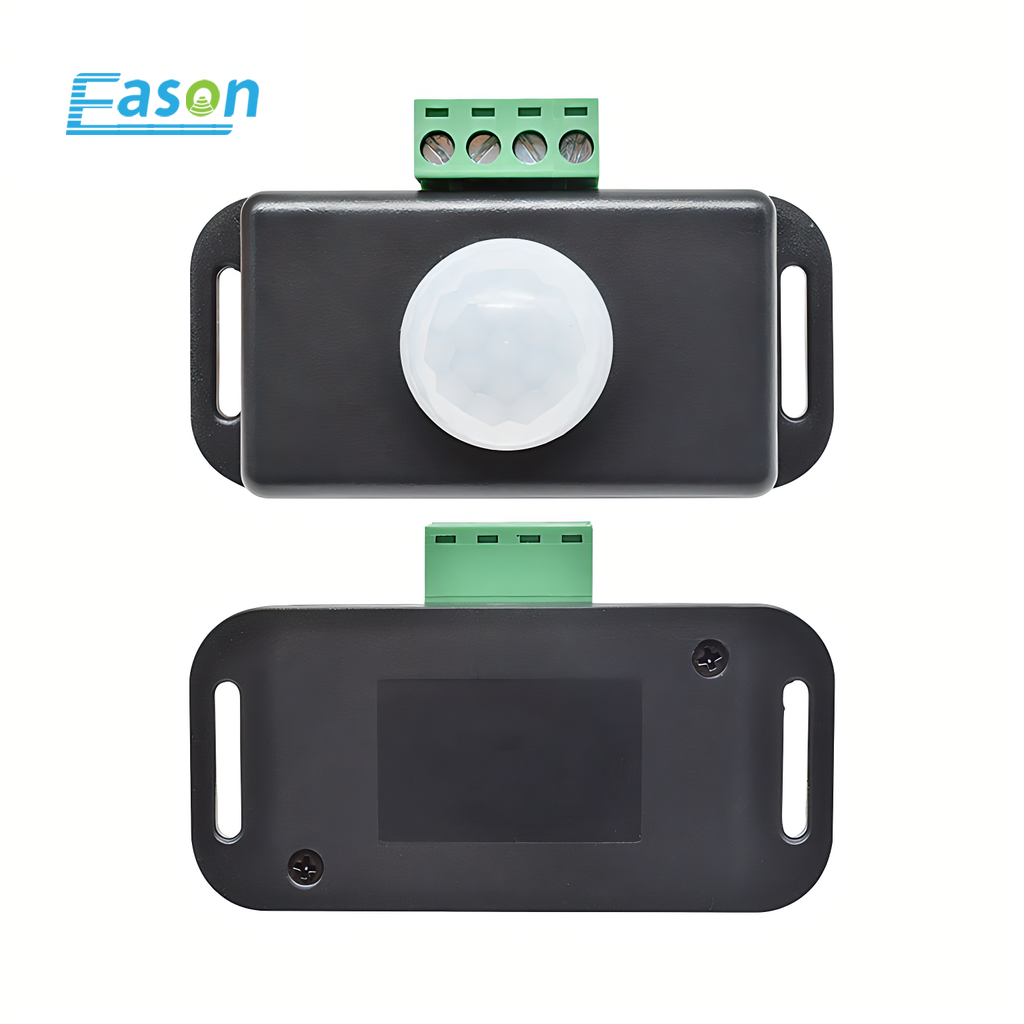

PIR Sensor SY-PIR313

INQUIRY
Input Voltage：12V / 24V DC
Output Power：Max. 6A
Time-Delay：10s-7min(Adjustable)
Distance：8m.Max(＜24℃)
Light Control：<20Lux~2000 Lux (Adjustable)

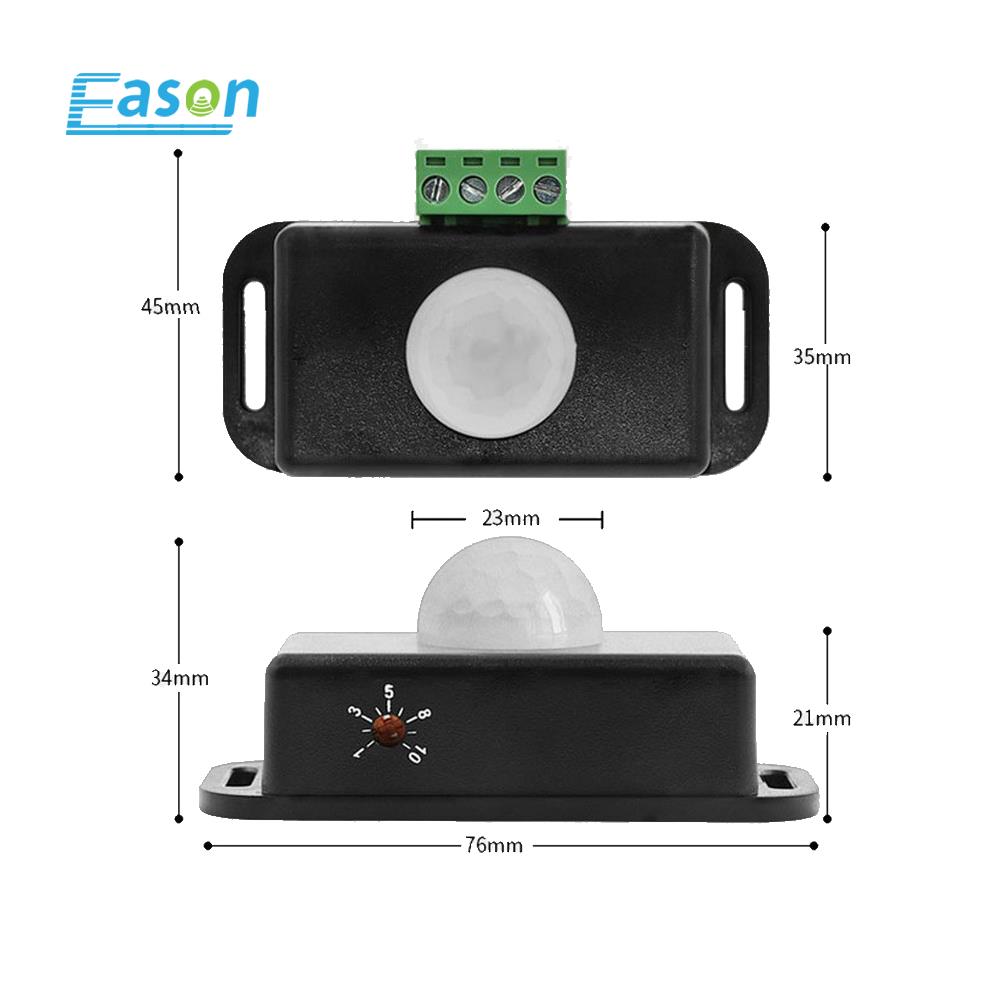

Product Size：Length76*Width45*Height34mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-20℃-60℃

Technical Specification:
Input Voltage：12V / 24V DC
Output Power：Max. 6A
Time-Delay：10s-7min(Adjustable)
Distance：8m.Max(＜24℃)
Light Control：<20Lux~2000 Lux (Adjustable)
Product Size：Length76*Width45*Height34mm
Installation Height：Max.3.5m
Detection angle：360°
Protection Level：IP20
Operating Temperature：-20℃-60℃
Product net weight / gross weight: 40g / 50g

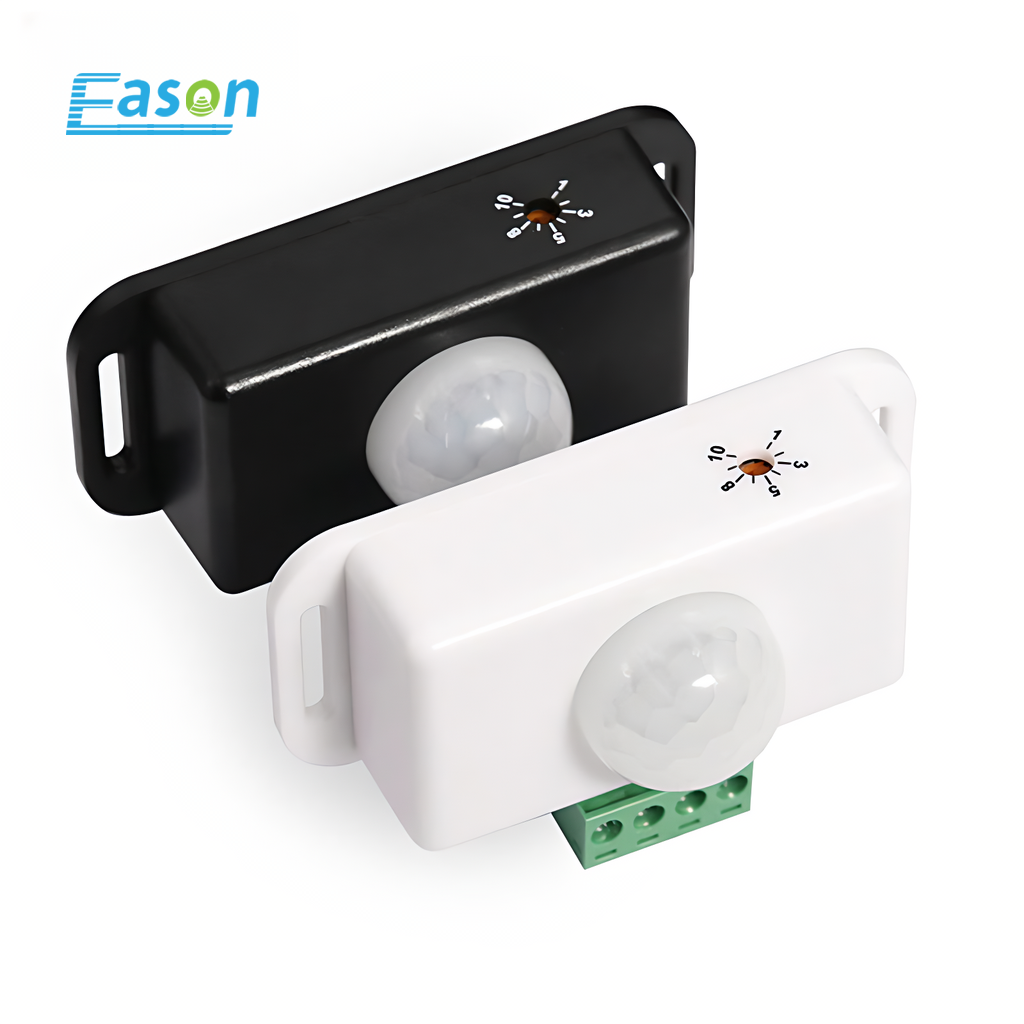

Product Color：White / Black



Application Location: Indoor
Installation Location: wall / Ceiling
